chipset

Intel B250 series

CPU Socket

supports Intel LGA1151 platform processor

memory slot(s)

2 x DDR3 memory slot(s)

Memory Standard

supports dual-channel DDR3 1866/1600/1333MHz specification memory (depending on CPU determined)

max support 16GB

Storageport

4 x SATA 3.0 6Gbps HDD port

Expansion Slots

1 x PCI Express 3.0 x16 slot, 1 x PCI Express 3.0 x1 slot

expansionport

1 x M.2 2280 NVME PCIE X4 2.0&NGFF SATA3.0(default NVME mode NGFF mode requires jumper cap switch),1xM.2 WIFI

Onboard Audio

Realtek HD Audio ALC897

Onboard LAN

Realtek Gigabit LAN  RTL8111H

Power Supplyport

24PIN+4PIN

Fan Headers

1 x CPU_FAN header, 1 x SYS_FAN header

Power Phases

6 -phase power supply

PCB Layers

4 Layer

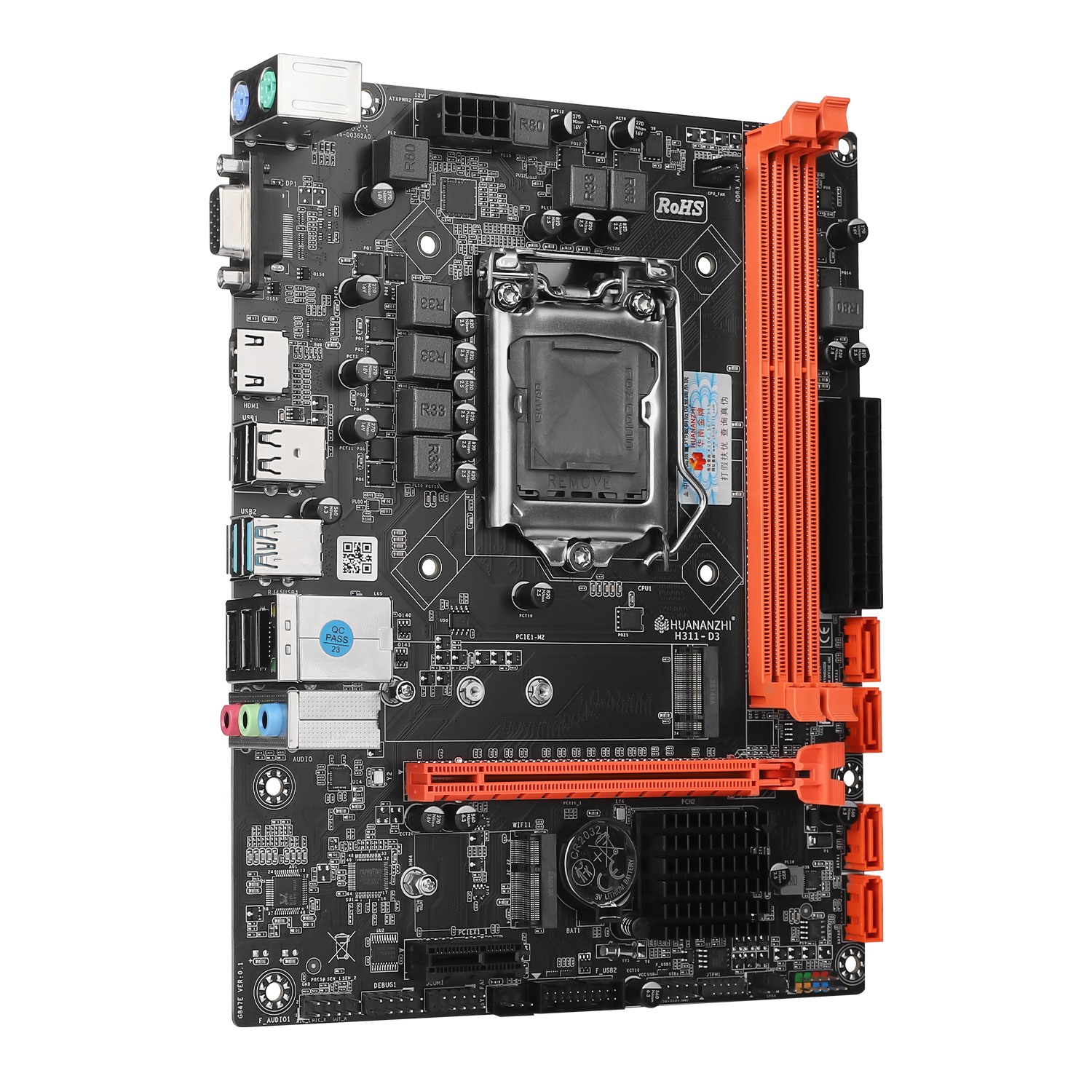

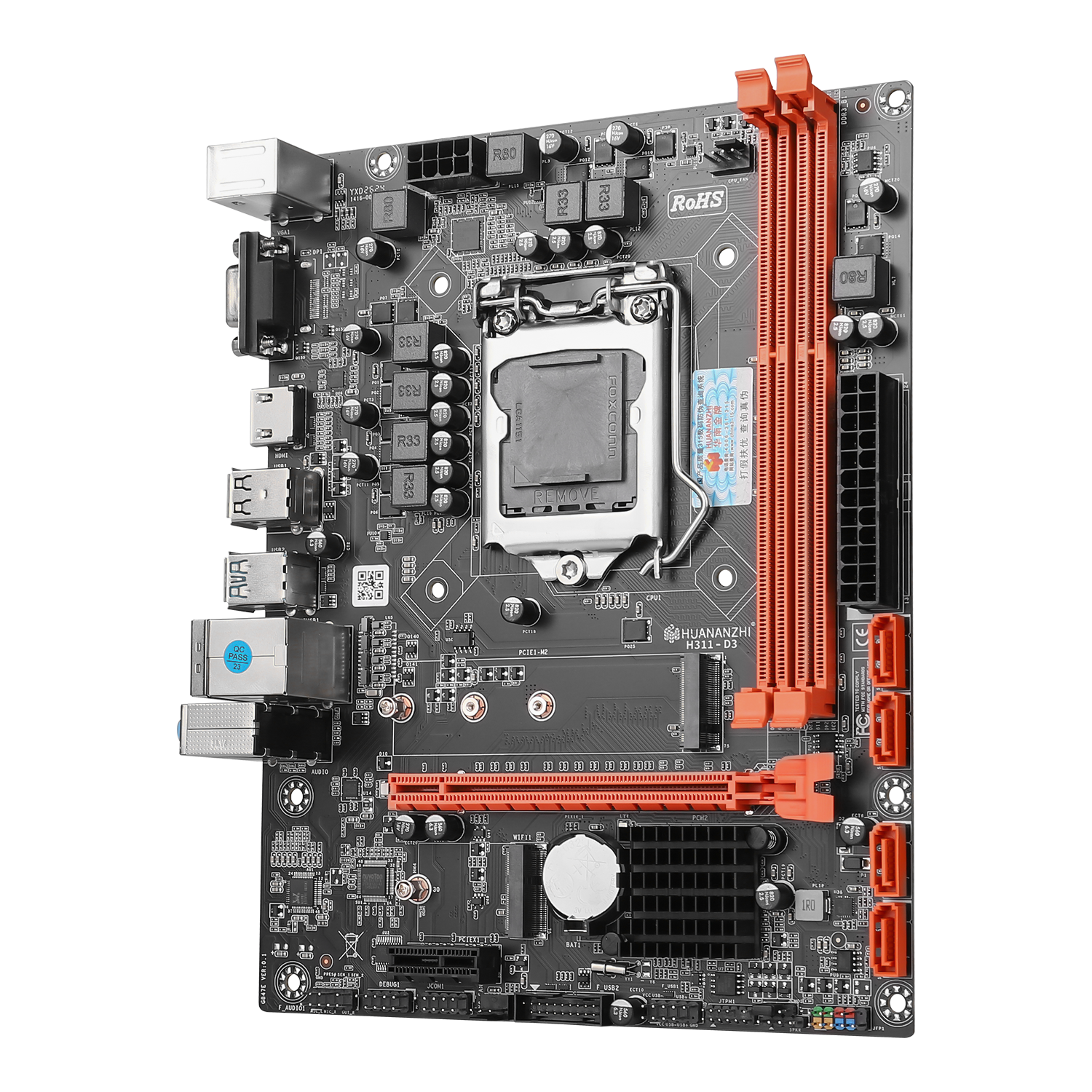

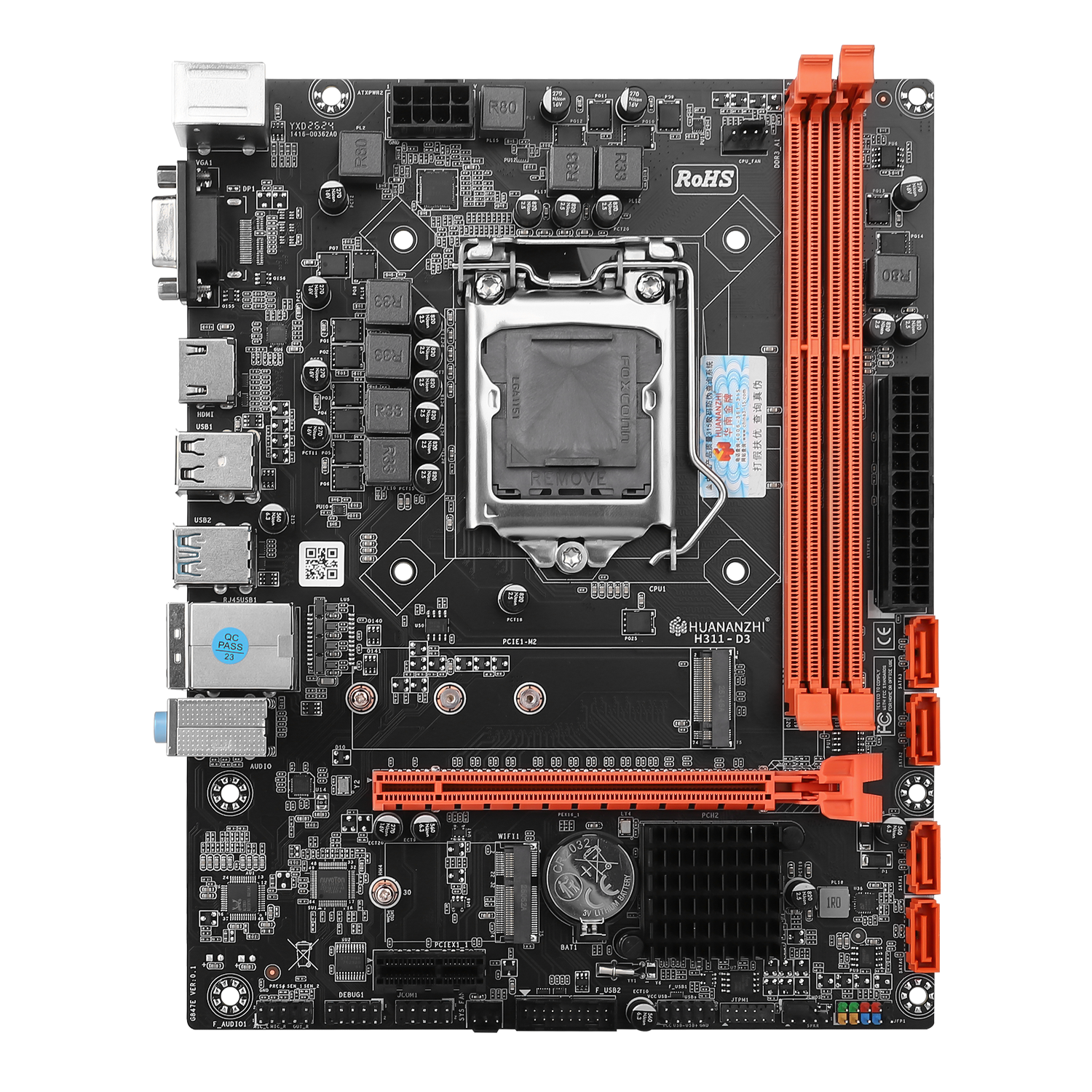

Motherboard

Specifications

215*170MM M-ATX

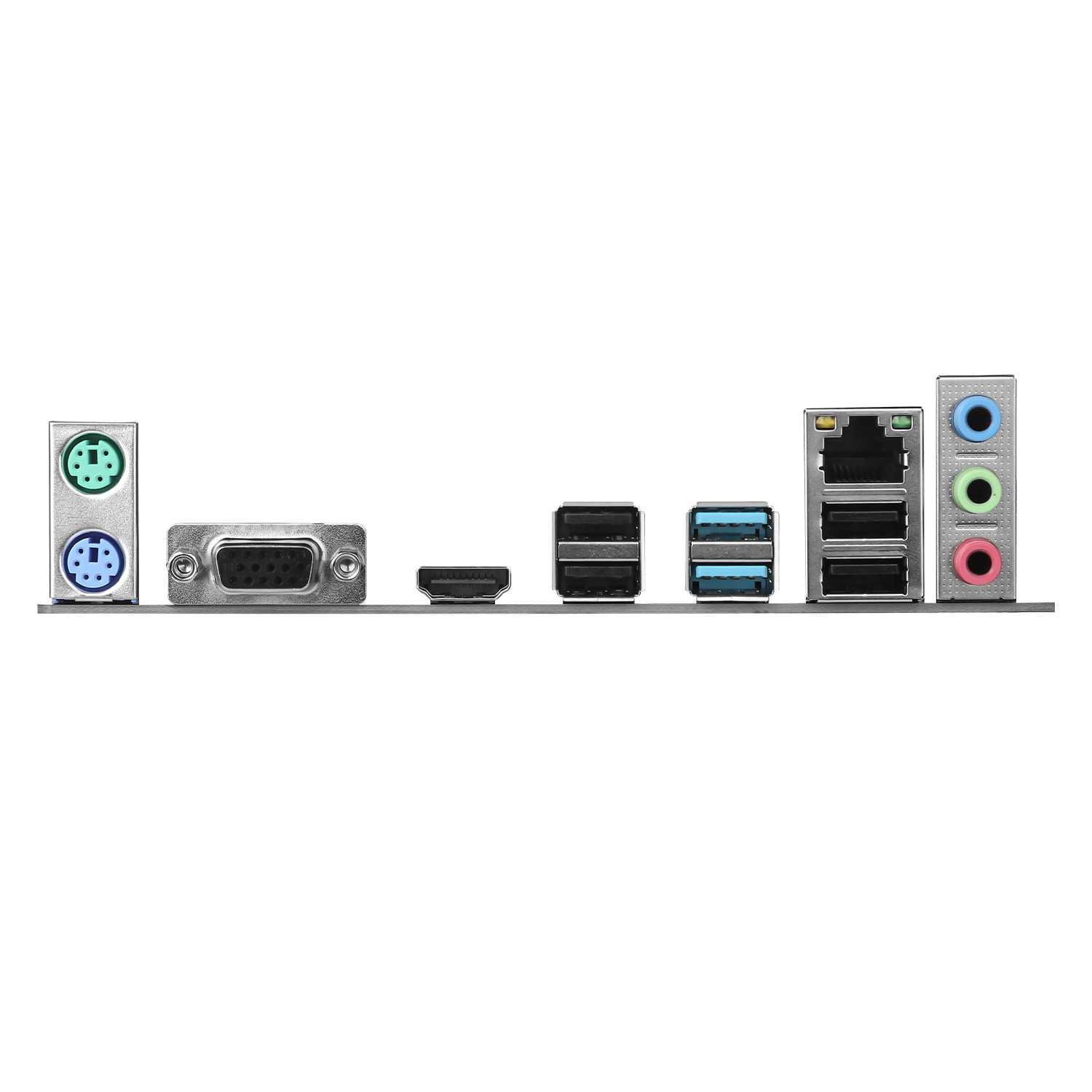

Rear Panelport

2 x USB3.0 port, 4 x USB2.0, 1 x VGA, 1 x HDMI，1 x LAN, 1 x 3 -hole audio

Front Panelport

1 x USB2.0 header, 1 x USB3.0 header, 1 x front audio header, 1 x Debug header

1 x COM serial port header, 1 x buzzer header, 1 x TPM header 14-1 -pin, 1 x power/reset header

Supported OS

Windows7 Windows10 Windows11

BIOS

AMI UEFI BIOS

Package Contents

1 Piece motherboard, 1 Piece SATA SATA data cable, 1 warranty card
