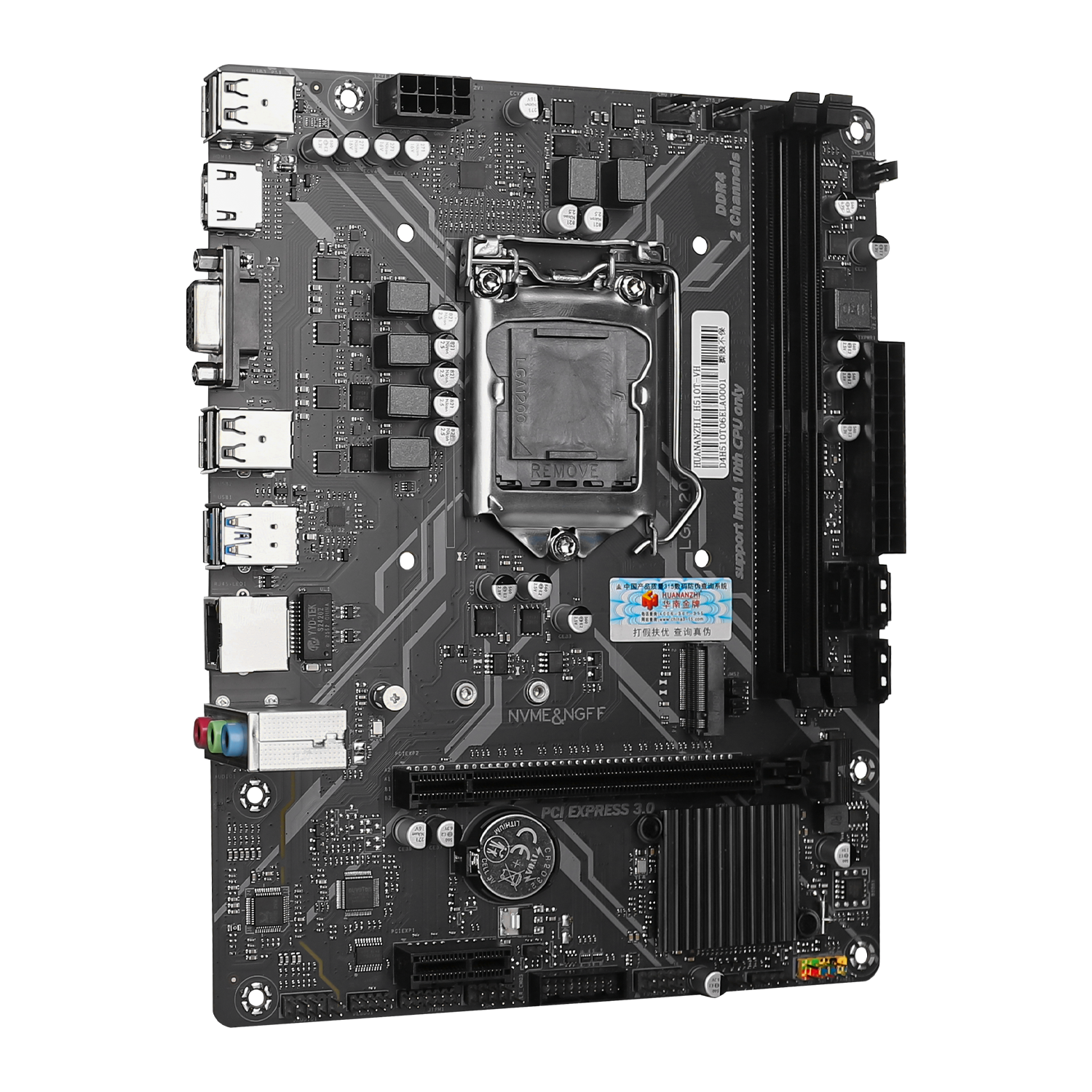

Model
H510T-VH
chipset
Intel H310/B360 series
CPUpin
supportsLGA1200platform processor, supportsIntel 10Generation Core/Pentium/CeLeRONseries processor
memory slot
2xDDR4memory slot(s)
Memory Standard
supports dual-channelDDR4 3200/2933/2666/2133MHzspecification memory
(supportsXMPdepending onCPUdetermined) max support64GB
Storage Interface
3xSATA3.0 6GbpsHDD port
Expansion Slots
1xPCI Express3.0 x16slot,1xPCI Express3.0 x1slot
Expansion Interface
1xM.2 2280 NVME PCIE X4 3.0 32Gb/s
Onboard
Audio
Realtek HD Audio ALC897
Onboard LAN
Realtek Gigabit LANRTL8111H
Power Connector
24PIN+8PIN
Fan Headers
1xCPU_FANheader,2xSYS_FANheader
Power Phases
6-phase power supply
PCBLayers
4Layer
Motherboard
Specifications
216*170MM M-ATXform factor

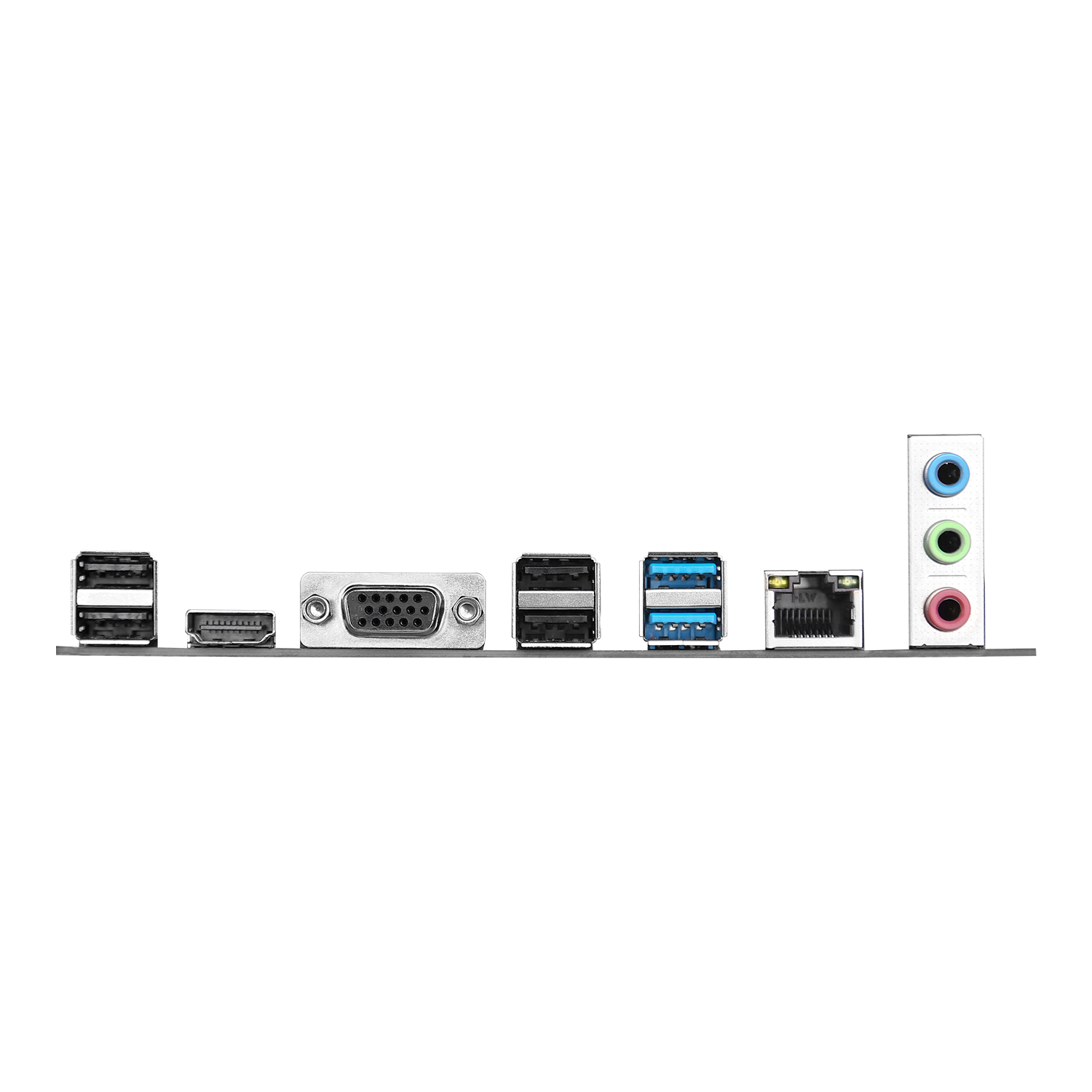

Rear Panel
Ports
4xUSB3.2 Gen1，,4xUSB2.0 ，1xHDMI ,1xVGA，1xRJ45LAN ,1x3-hole audio port
Front Panel Ports
1*USB2.0header,1*USB3.0header,1* front audio header,1*DebugDebug LED header
1*CMOSheader,1*power/reset header
Supported OS
Windows10 Windows11
BIOS
AMI UEFI BIOS Graphics

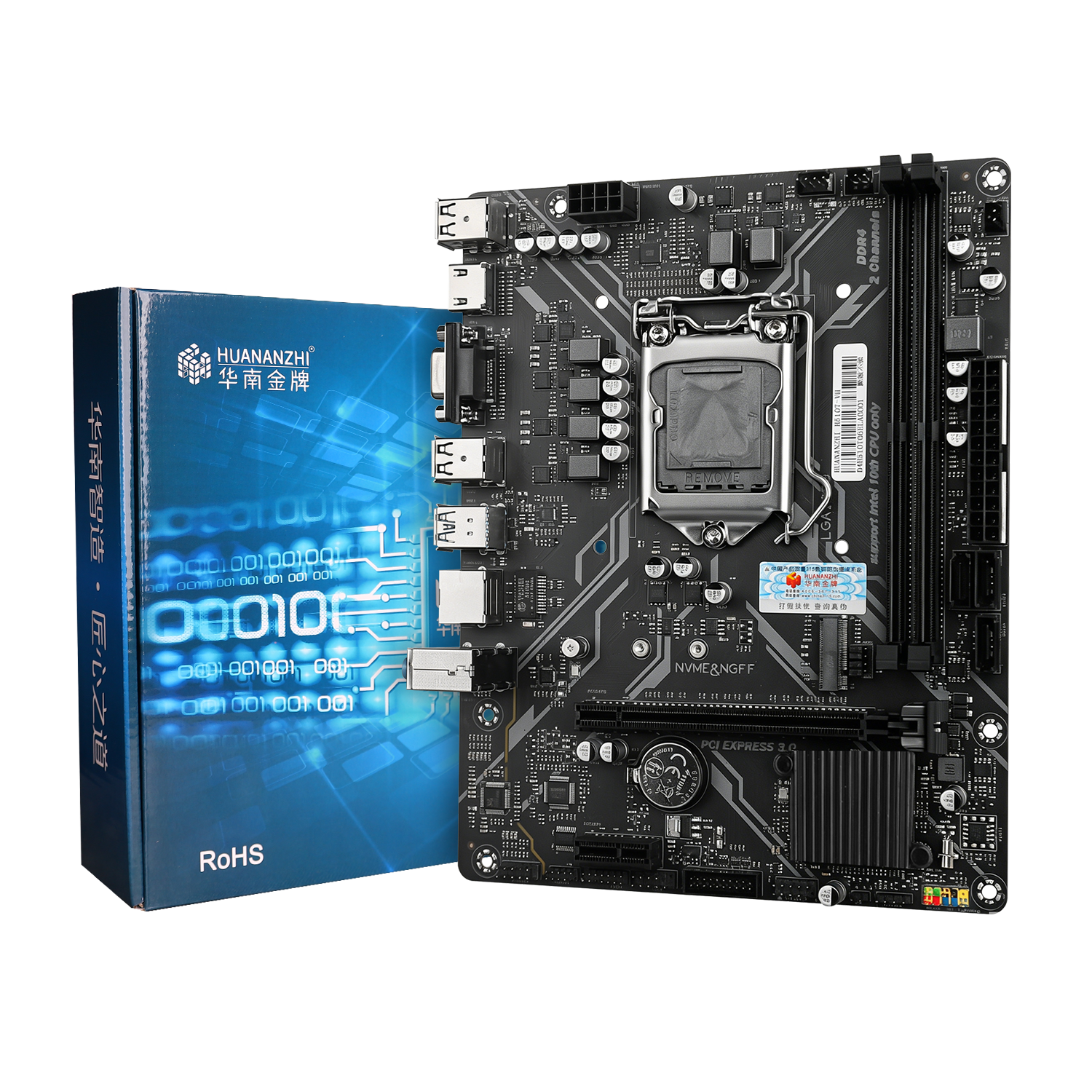

Package Contents
1*SATASATA data cable,1*Manual products Manual,1* motherboard Bracket,1*motherboard
-
H510M-KMotherboard Chipset DriverDownload
H510T-VHMotherboard LAN DriverDownload
H510T-VHMotherboard Audio DriverDownload
H510T-VHMotherboard ME DriverDownload
-
User Manual
Installation Video
H510T-VH
· supports LGA1200 platform processor, supports Intel 10Generation Core/Pentium/CeLeRONseries processor
· 2 x DDR4 memory slot(s), max support 64GB
· 3 x SATA3.0 6Gbps HDD port
· 1 x PCI Express3.0 x16 slot, 1 x PCI Express3.0 x1 slot
· 1 x M.2 2280 NVME PCIE X4 3.0 32Gb/s
· 2 x USB3.2 port, 4 x USB2.0 port
· 1 x HDMI port, 1 x VGA port
