Main chipset

Intel C612

CPU Socket

Support Intel LGA2011-3

Memory slot

8 x DDR4 memory slot

Memory standard

Support four channels DIMM DDR4 2400/2133MHz，Max support 256GB，

Supports REG ECC memory and standard desktop memory，Does not support AMD‑specific memory

Mixing standard memory with REG ECC memory for simultaneous use is not supported.

Storage interface

4xSATA3.0 6Gbps interfaces，4xSSATA3.0 6Gbps interfaces（RAID0/1/5/10）

Expansion Slots

2xPCI Express3.0 x16，1xPCI Express3.0 x4，2xPCI Express2.0 x1

Expansion interface

1xM.2 2280 NVME PCIE X4 3.0，1xM.2 2280 NVME PCIE X4 2.0，1xM.2 WIFI

Soud Track

Realtek High Fidelity Audio ALC897

Network Card

Realtek Gigabit Network Card RTL8111

Power interface

24PIN+8PIN

FAN PIN

1xCPU_FAN PIN（Support temperature control adjustment），2xSYS_FAN PIN

power supply

6-phase power supply

PCB layers

10-layer PCB

Dimension

300*244MM  ATX

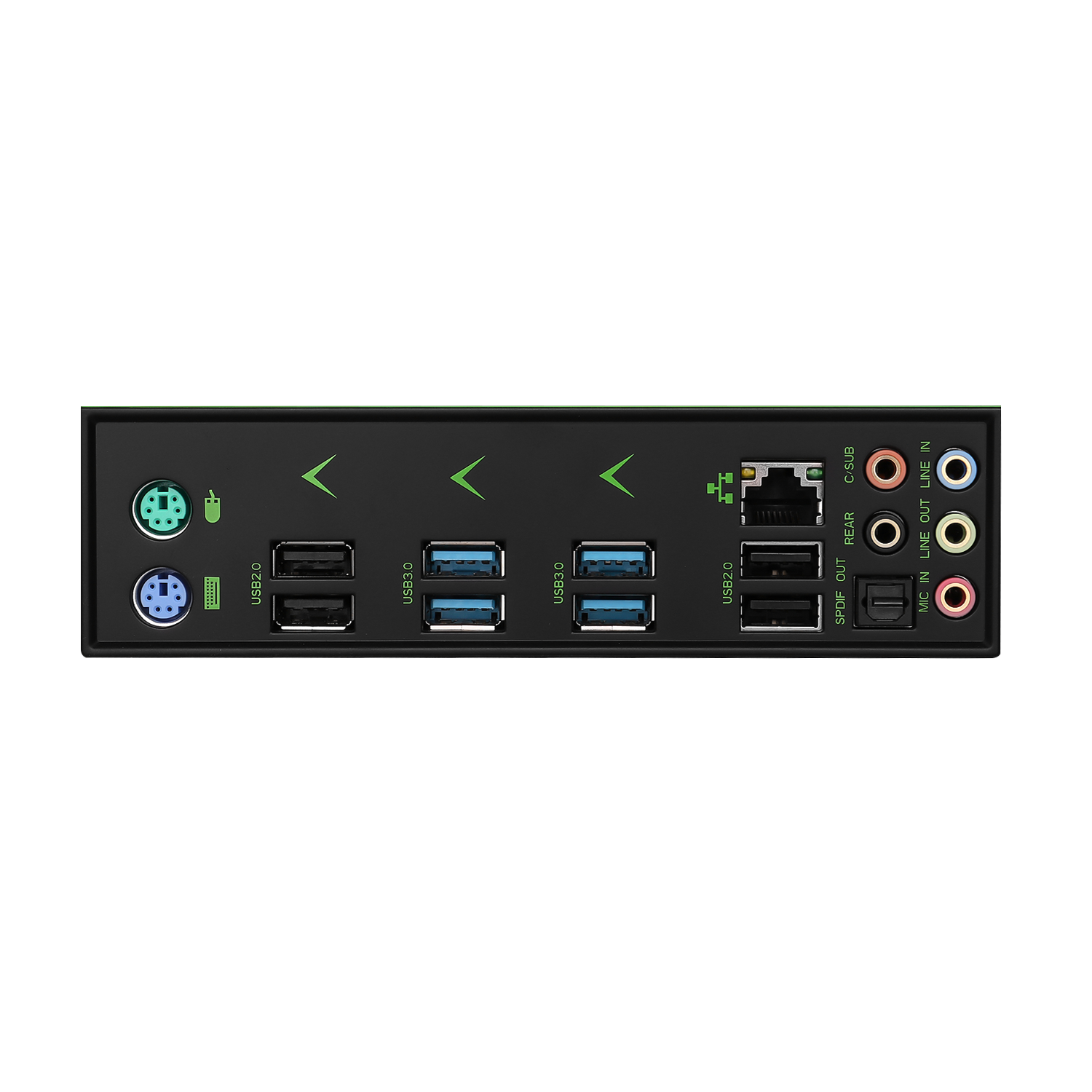

Rear panel interface

4xUSB2.0，4xUSB3.0，1x Network card interface，1x5-hole audio interface

1xPS/2 keyboard and mouse interface,1xOptical audio port (built into the audio jack)

Front panel interface

1 x USB3.0 PIN，1 x USB2.0 PIN，1 x Front audio PIN，1 xCOMPIN，1 xPower on/restart pin

1× CMOS button，1× DEBUG pin，1× TPM2.0 14-1 pin，1× power & reset pin

3× 5V ARGB pin, 1× 12V ARGB pin，Controlled by Sonix main control IC

Support system

Windows10  Windows11（Supports incoming call startup/scheduled power-on/WOL

 (Wake-on-LAN)/IPv4 diskless boot）

BIOS

AMI UEFI BIOS

Packing list

1 x Motherboard，1x SATA data cable，1xWarranty card
