Chip Family
GeForce® RTX3060 12G
Model Number
HUANANZHI RTX 3060 12G Snow fox GRAPHICS CARD
Sandy Bridge
GA106(LHR)
Chip Process
/
CUDA Core
3584
Core Clock(MHz)
1320MHz
Memory Clock(MHz)
1500MHz
Memory Interface
192BIT
Video Memory Capacity
12GB
Video Memory Type
GDDR6
The Max resolution
7680*4320
Display Interface
1*HDMI +3*Display Port
Interface type
PCI Express 4.0 16X
Max power consumption
170W
Recommended power supply
600W or above
Graphics card type
Mainstream level
Cooler Type
Double Fan Air Cooling Cooling Cooling
Power interface
8PIN
3D API
DirectX 12 OpenGL4.6/virtual reality/Ray tracing
Support HDC
Yes HDCP2.3
Product size
252*108*42MM
-
User Manual
Installation video

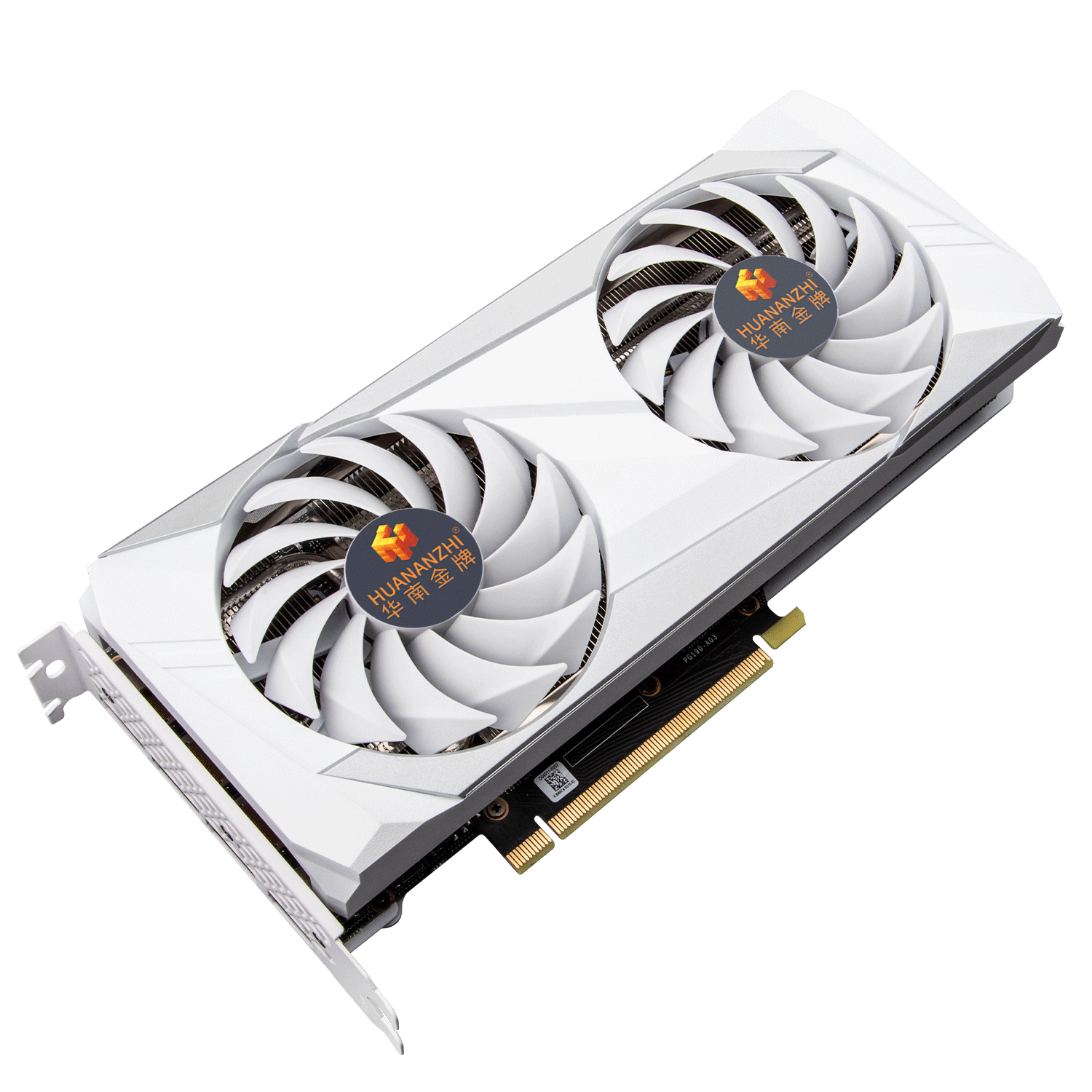

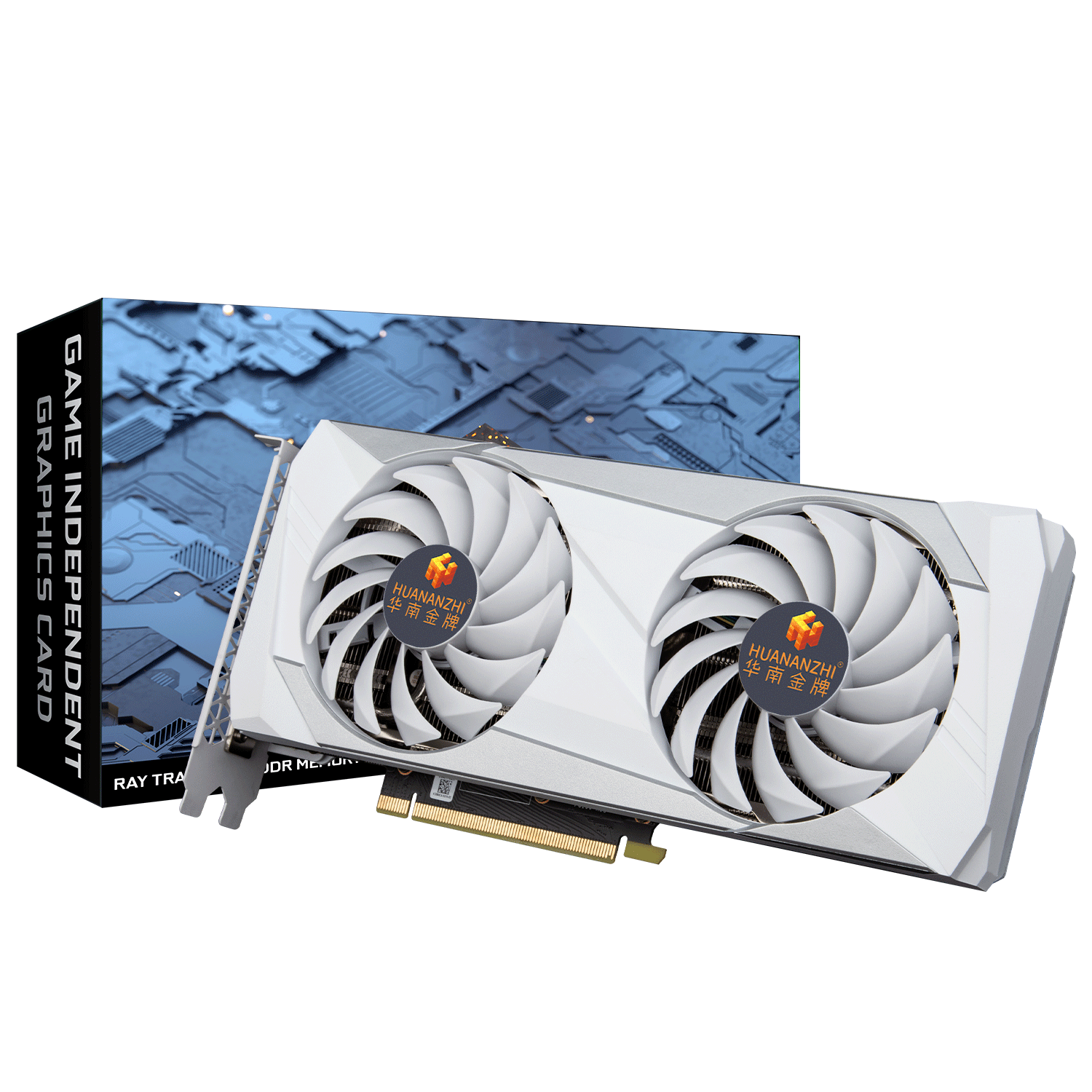

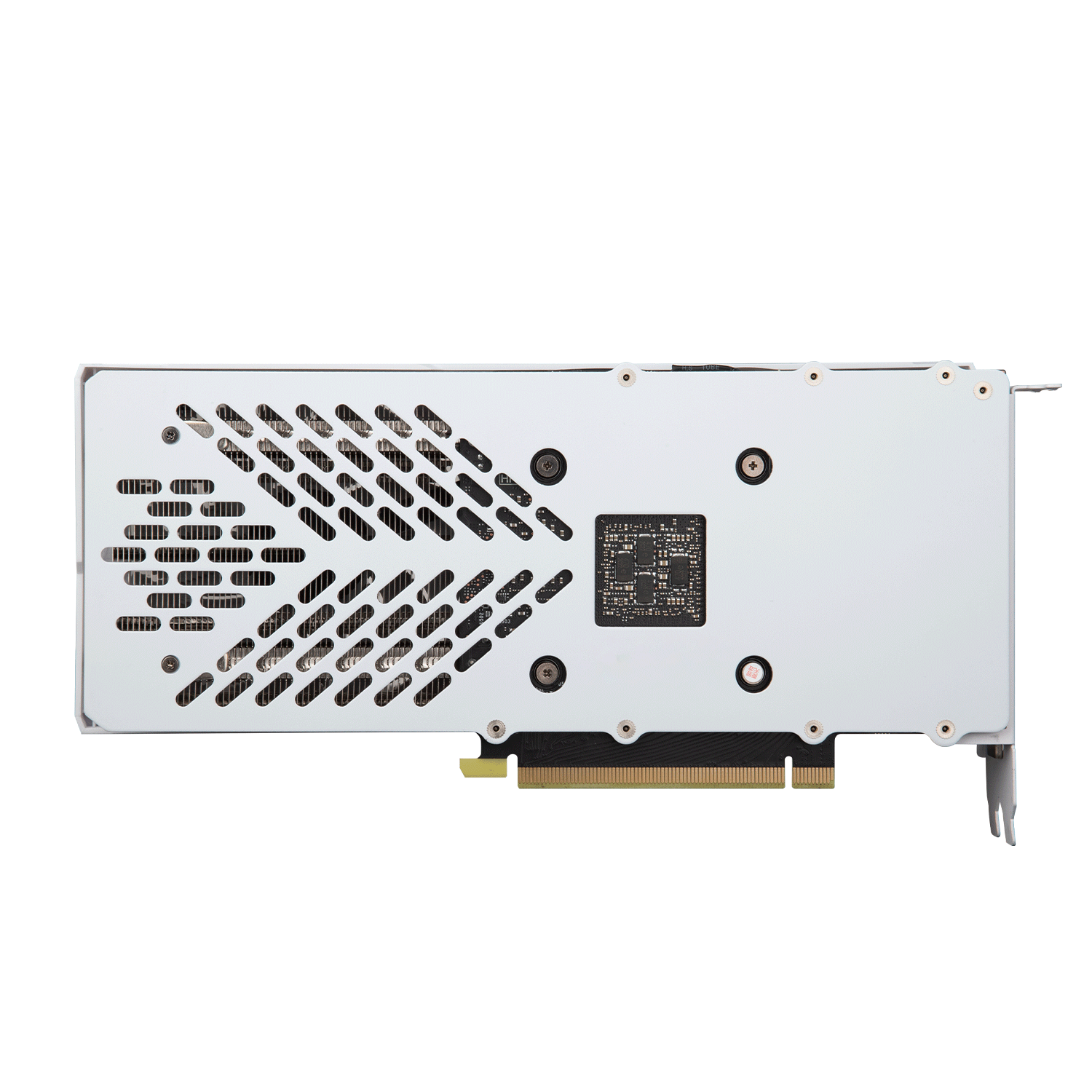

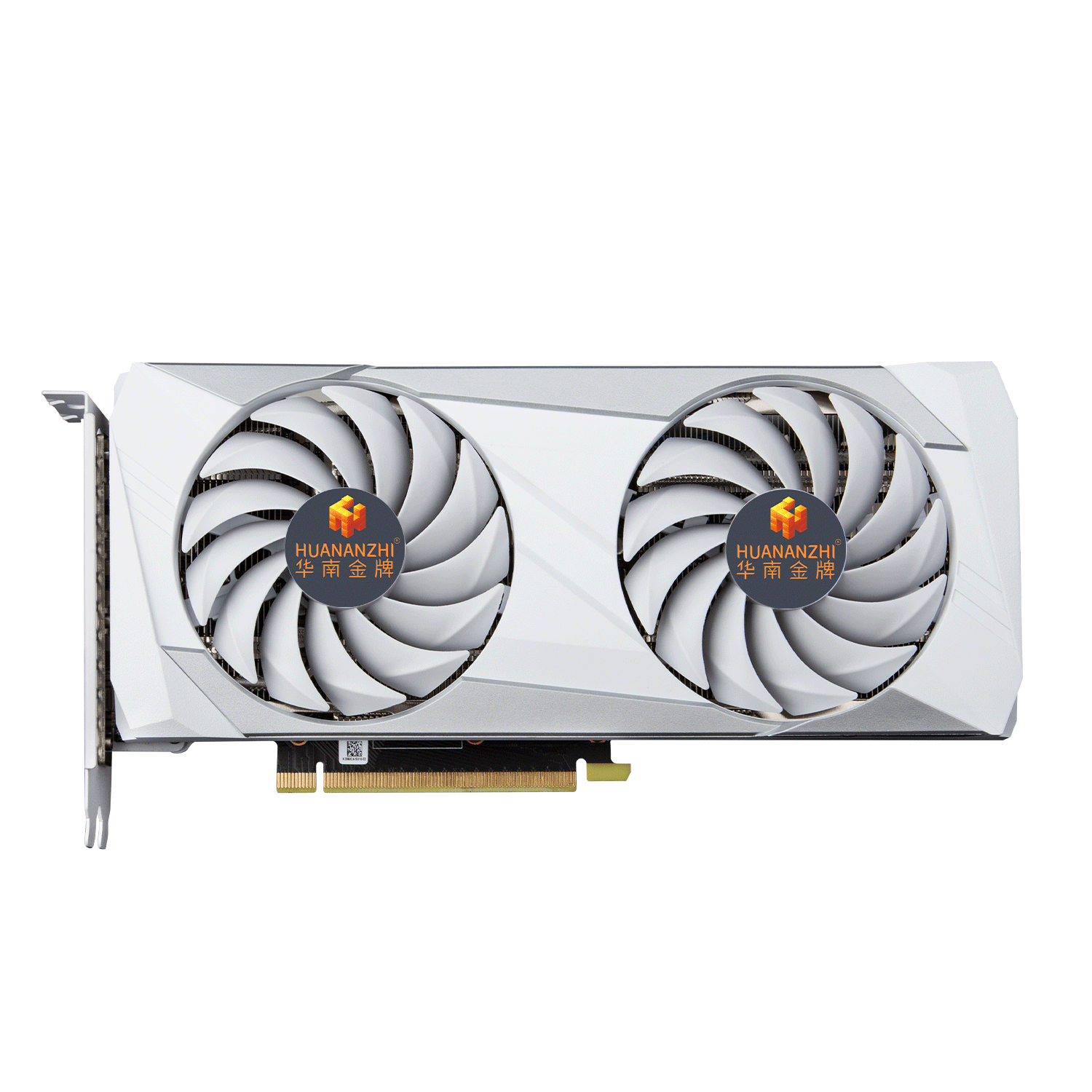

RTX 3060 12G SNOW FOX GRAPHICS CARD
· Chip Family ：GeForce RTX3060
· CUDA Core：3584
· Memory Specification：12GB/192bit GDDR6

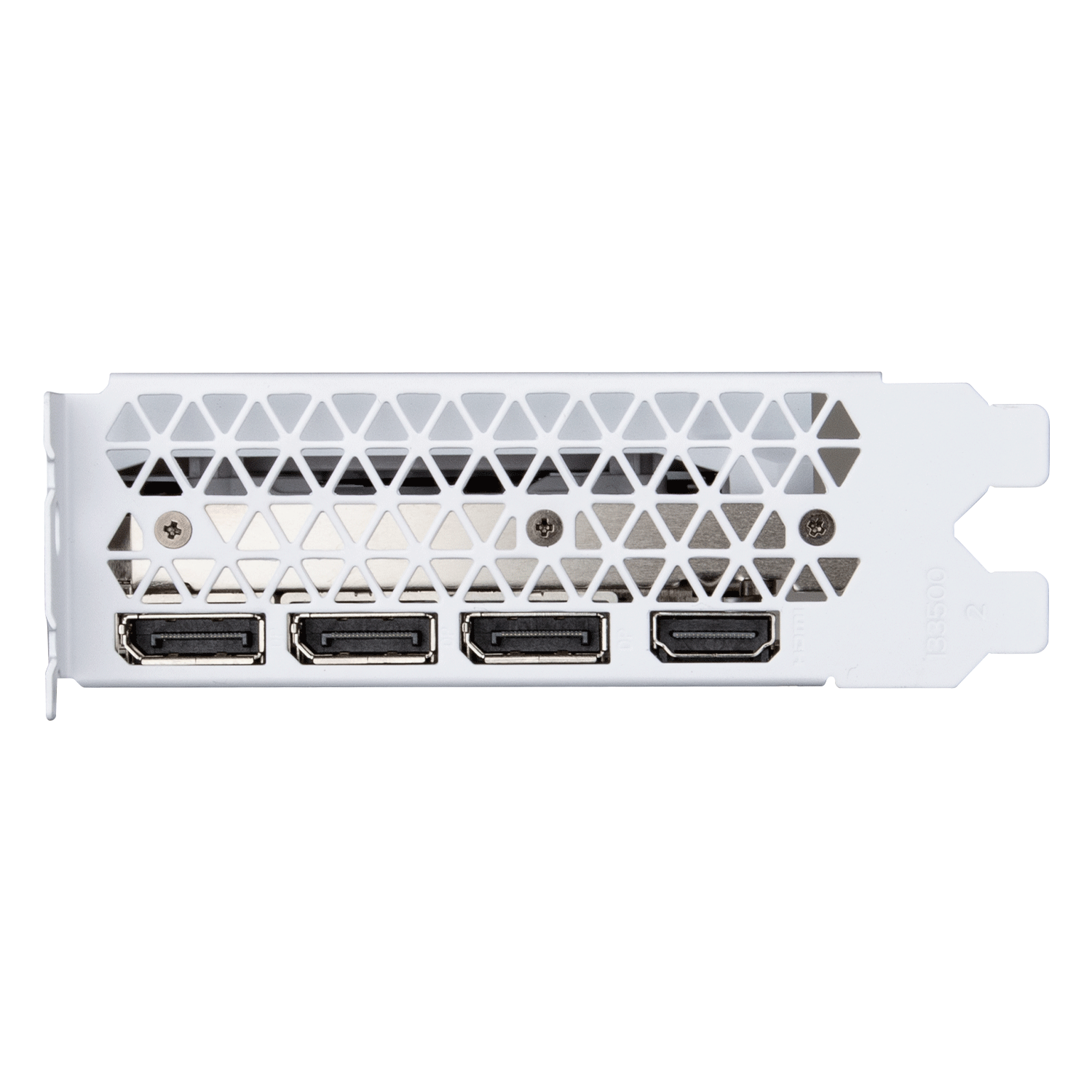

· Output interface：1*HDMI+3*DP
· Cooler Type：Dual fan cooling
· Support Technology：GeForec ExperienceAnsel、Highlights、G-SYNC · Compatible、Game ReadyDriver、GPU Boost、VR Ready、DirectX 12 OpenGL4.6/virtual reality/Ray tracing、Displayport 1.4a，HDMI 2.0b，NVIDIA Encoder（NVENC）,Virtual reality，Ray Tracing
· The Max resolution：7680x4320
Buy
· CUDA Core：3584
· Memory Specification：12GB/192bit GDDR6
· Output interface：1*HDMI+3*DP
· Cooler Type：Dual fan cooling
· Support Technology：GeForec ExperienceAnsel、Highlights、G-SYNC · Compatible、Game ReadyDriver、GPU Boost、VR Ready、DirectX 12 OpenGL4.6/virtual reality/Ray tracing、Displayport 1.4a，HDMI 2.0b，NVIDIA Encoder（NVENC）,Virtual reality，Ray Tracing
· The Max resolution：7680x4320
