Model

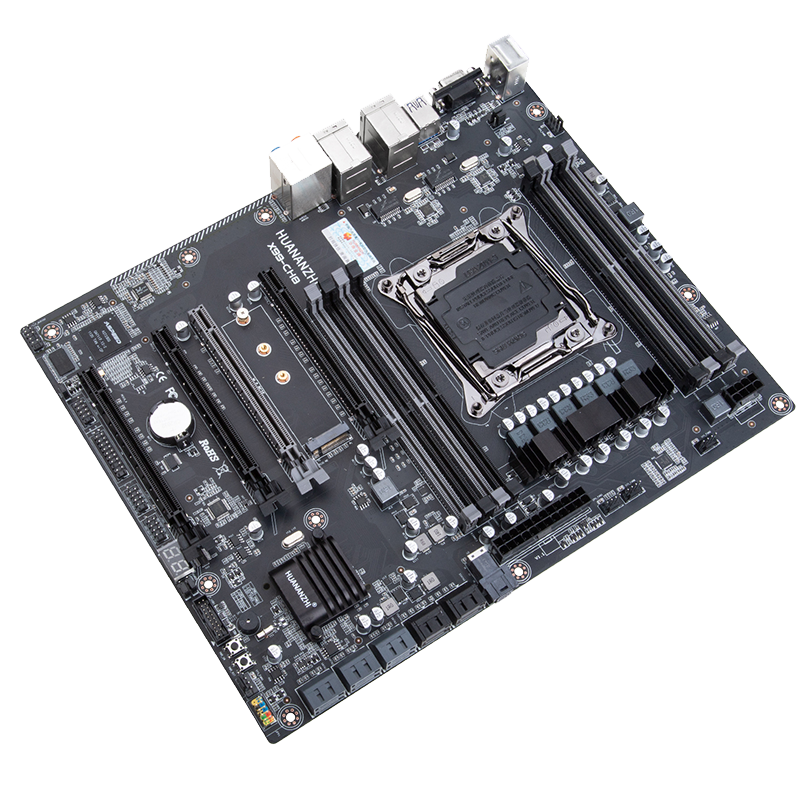

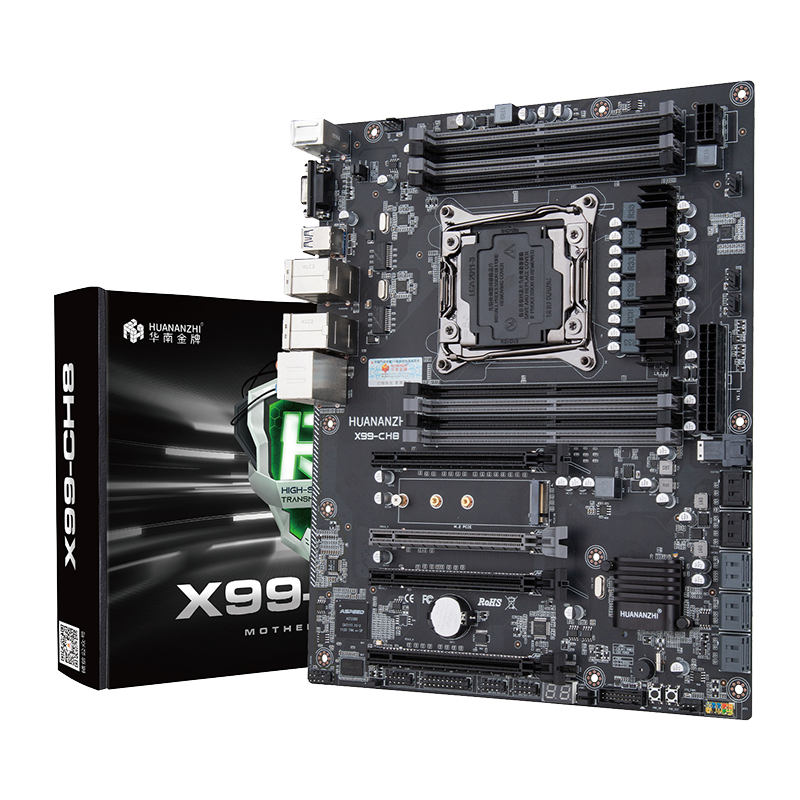

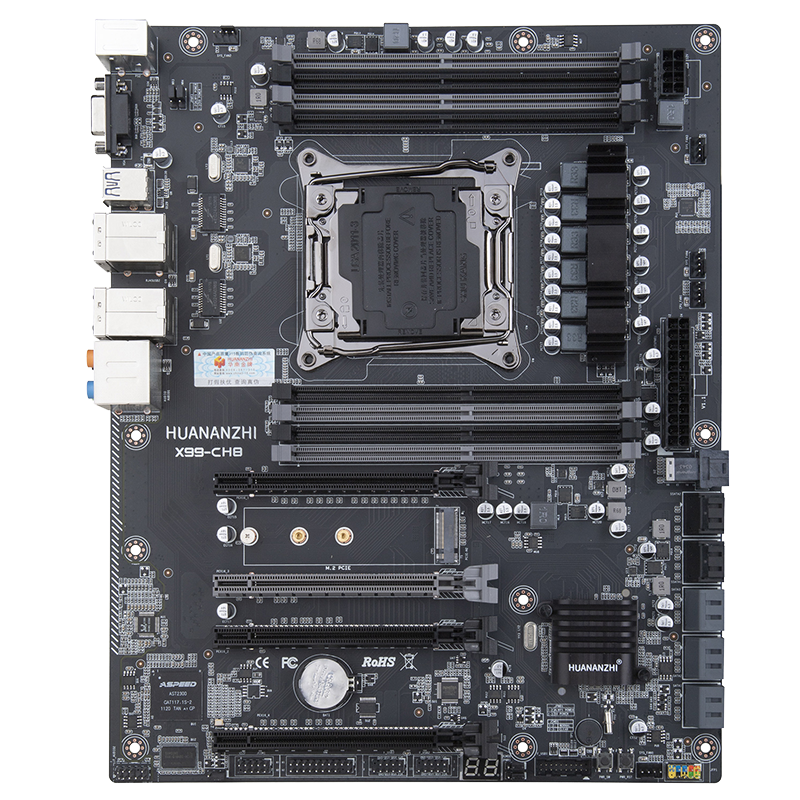

HUANANZHI X99-CH8 Motherboard

Main chipset

Inte C612

CPU Socket

Support Intel LGA2011-3

Memory slot

8 x DDR4 memory slot

Memory standard

Support four channelsDDR4 2400/2133/1866MHz，Max support 256GB

Storage interface

6x SATA3.0 6Gbps，4xSSATA 3.06Gbps

Expansion Slots

1xPCI Express3.0X16，1xPCIExpress3.0x4，2xPCIExpress3.0x8

Expansion interface

1xM.2 2280 NVME PCIEX43.0 32Gbps，1xU.2X43.0

Soud Track

7.1

Network Card

Gigabit Ethernet

Power interface

24pin+8pin

FAN PIN

1xCPU_FAN PIN，4xSYS_FAN PIN

power supply

6-phase power supply

PCB layers

10-layer PCB

Dimension

300*244MM E-ATX

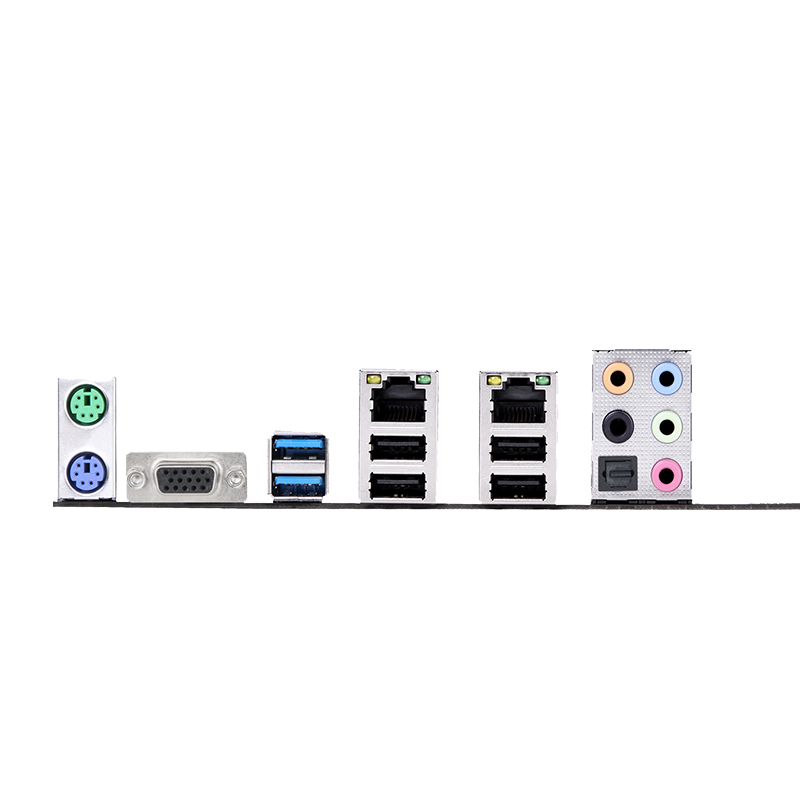

Rear panel interface

PS/2 Mouse and Keyboard port，4xUSB2.0 Interface，2xUSB3.0 Interface，1x Network card interface，1x5-hole audio interface，1xAudio fiber interface (integrated on audio interface)，1xOn-board integrated display VGA

Front panel interface

2 x USB2.0 PIN，1 x USB3.0 PIN，1 x Front audio pin，1xCOM pin，1xMotherboard，，1xbuzzerpost card，1xStart/restart button

Support system

Windows7 Windows10 Windows11

BIOS

AMI UEFI BIOS

Packing list

1 x Motherboard，1 x SATA data cable，1xWarranty card
