Model
HUANANZHI X99-8M-TMotherboard
Main chipset
Inte B85Q87
CPU Socket
Support LGA2011-3 Processor(Xeon E5 2629 v3/ E5-2649 v3/E5-2669 v3/E5-2673 v3/ E5-2676 v3/E5-2678 v3/E5-2696 v3/E5-2666 v3/E5-2686v4/E5-2696v4)
Memory slot
2 x DDR3memory slot
Memory standard
Support Dual channels DDR3 1866/1600/1333MHz，Max support 64GB
Storage interface
4 x SATA3.0 6Gbps
Expansion Slots
1xPCI Express3.0X16，1xPCIExpress3.0x1，1xPCI Express3.0x4
Expansion interface
1xM.2 2280NVME PCIEX4 3.032Gbps
Soud Track
5.1
Network Card
Gigabit Ethernet
Power interface
24pin+8pin
FAN PIN
1xCPU_FAN PIN，2xSYS_FAN PIN
power supply
6-phase power supply
PCB layers
8-layer PCB
Dimension
237*180MM M-ATX

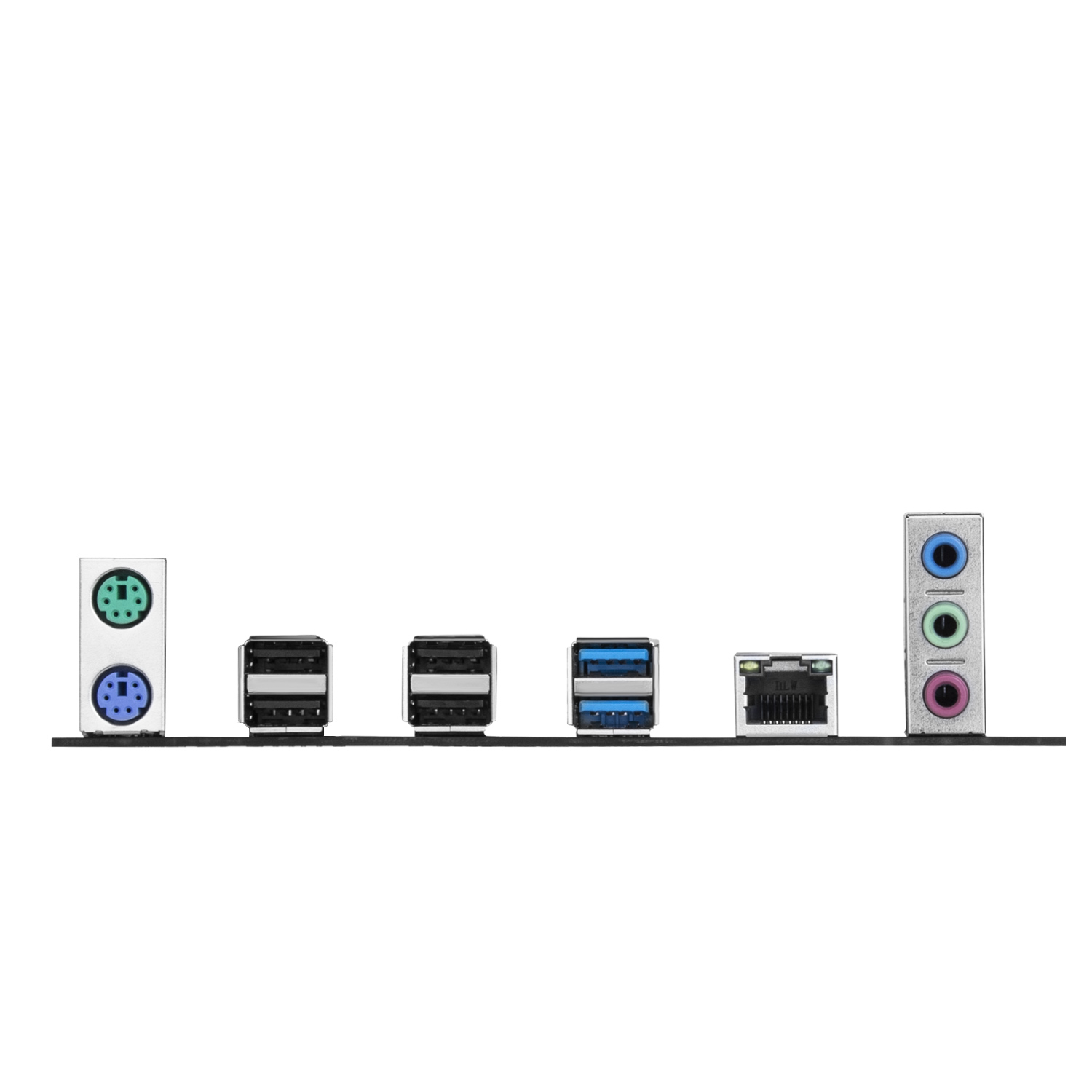

Rear panel interface
PS/2 Mouse and Keyboard port，4xUSB2.0，2xUSB3.0，1x Network card interface，1x3-hole audio interface
Front panel interface
1 x USB2.0 PIN，1 x USB3.0 PIN，1 x Front audio pin，1xCOM pin，1xMotherboard buzzer
Support system
Windows7 Windows10 Windows11
BIOS
AMI UEFI BIOS
Packing list
1 x Motherboard，1 x SATA data cable，1xWarranty card
-
X99-8M-TMotherboard Drive Download
X99-8M-TMotherboard BIOS(22-12-01) Download
X99-8M-T Network card driver Download
-
User Manual
HUANANZHI X99-8M-T motherboard User Manual Download
Installation video
HUANANZHI X99-8M-TMotherboard
· Support LGA2011-3 Processor(Xeon E5 2629 v3/ E5-2649 v3/E5-2669 v3/E5-2673 v3/ E5-2676 v3/E5-2678 v3/E5-2696 v3/E5-2666 v3/E5-2686v4/E5-2696v4)
· Support Dual channels DDR3 1866/1600/1333MHz
· 2 x DDR3memory slot，Max support 64GB
· 1xM.2 2280NVME PCIEX4 3.032Gbps
· 1xPCI Express3.0X16，1xPCIExpress3.0x1，1xPCI Express3.0x4
· 4xUSB2.0，2xUSB3.0，1 x USB2.0 PIN，1 x USB3.0 PIN
· Support Dual channels DDR3 1866/1600/1333MHz
· 2 x DDR3memory slot，Max support 64GB
· 1xM.2 2280NVME PCIEX4 3.032Gbps
· 1xPCI Express3.0X16，1xPCIExpress3.0x1，1xPCI Express3.0x4
· 4xUSB2.0，2xUSB3.0，1 x USB2.0 PIN，1 x USB3.0 PIN
