Model

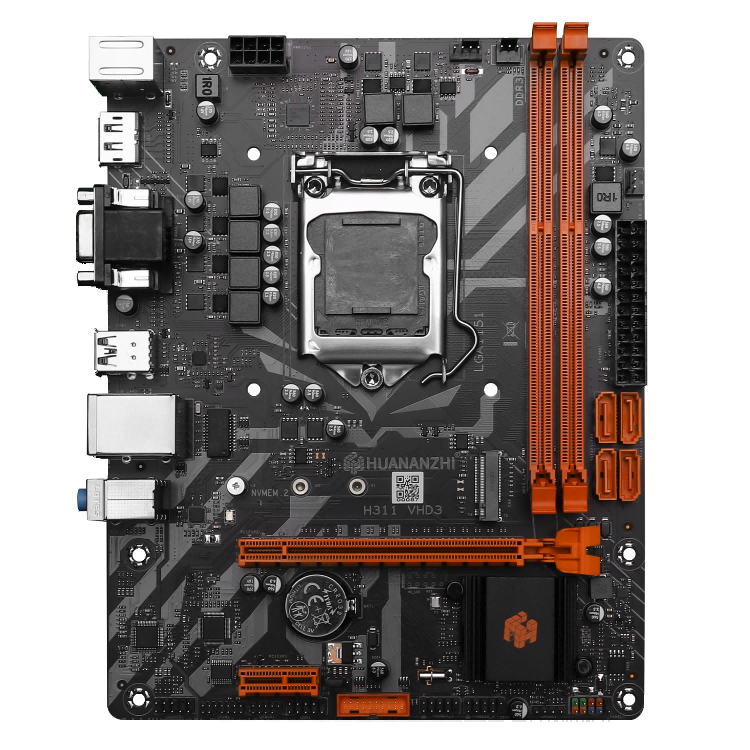

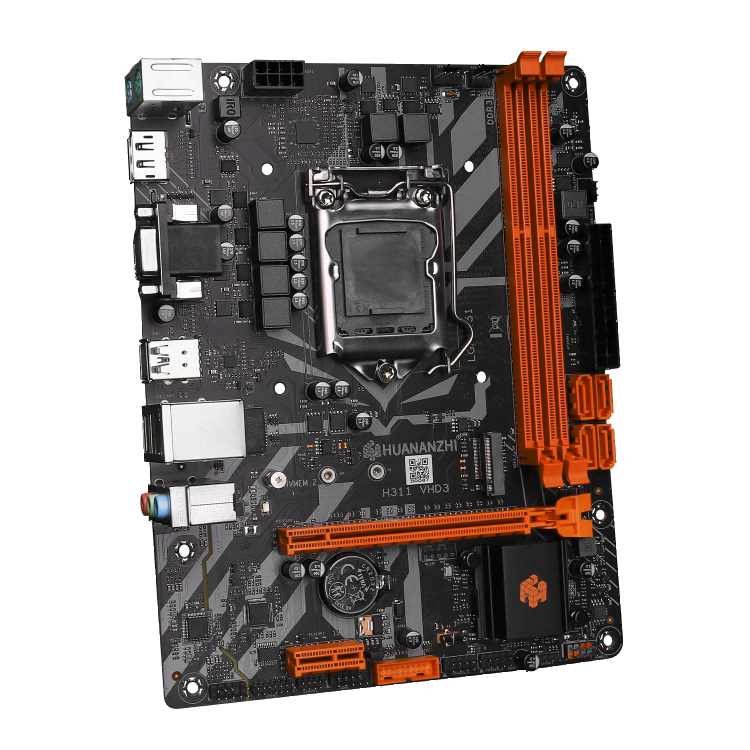

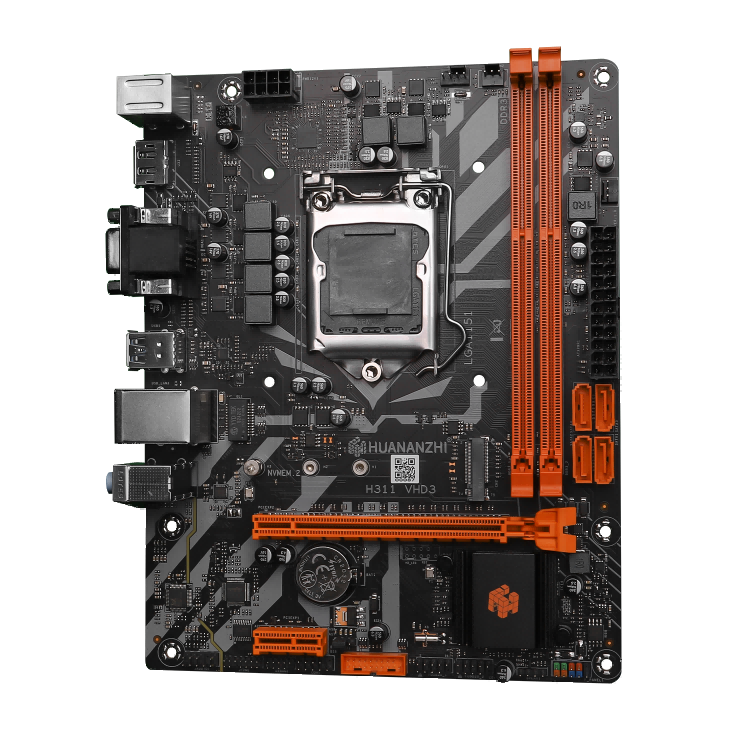

HUANANZHI H311-VHD3 Motherboard

Chipset

Intel 100 Series Chipset

CPU Socket

Support Intel LGA1151 Platform Processors

Memory Slot

2 x DDR3 Memory Slot

Memory Standard

Support Dual Channels DDR3 1866/1600/1333MHz(Decided By CPU)，Max Support16GB

Storage Interface

4xSATA 3.0 6Gbps

Expansion Slots

1xPCI Express3.0 x16，1xPCI Express 2.0 x1

Expansion Interface

1xM.2 2280 NVME PCIE X4 2.0

Sound Track

Realtek High Fidelity Audio

Network Card

Gigabit Network Card

Power Interface

24PIN+8PIN

FAN PIN

1xCPU_FAN PIN，2xSYS_FAN PIN

Power Supply

6-Phase Power Supply

PCB Layers

4-Layer PCB

Dimension

215*170MM M-ATX

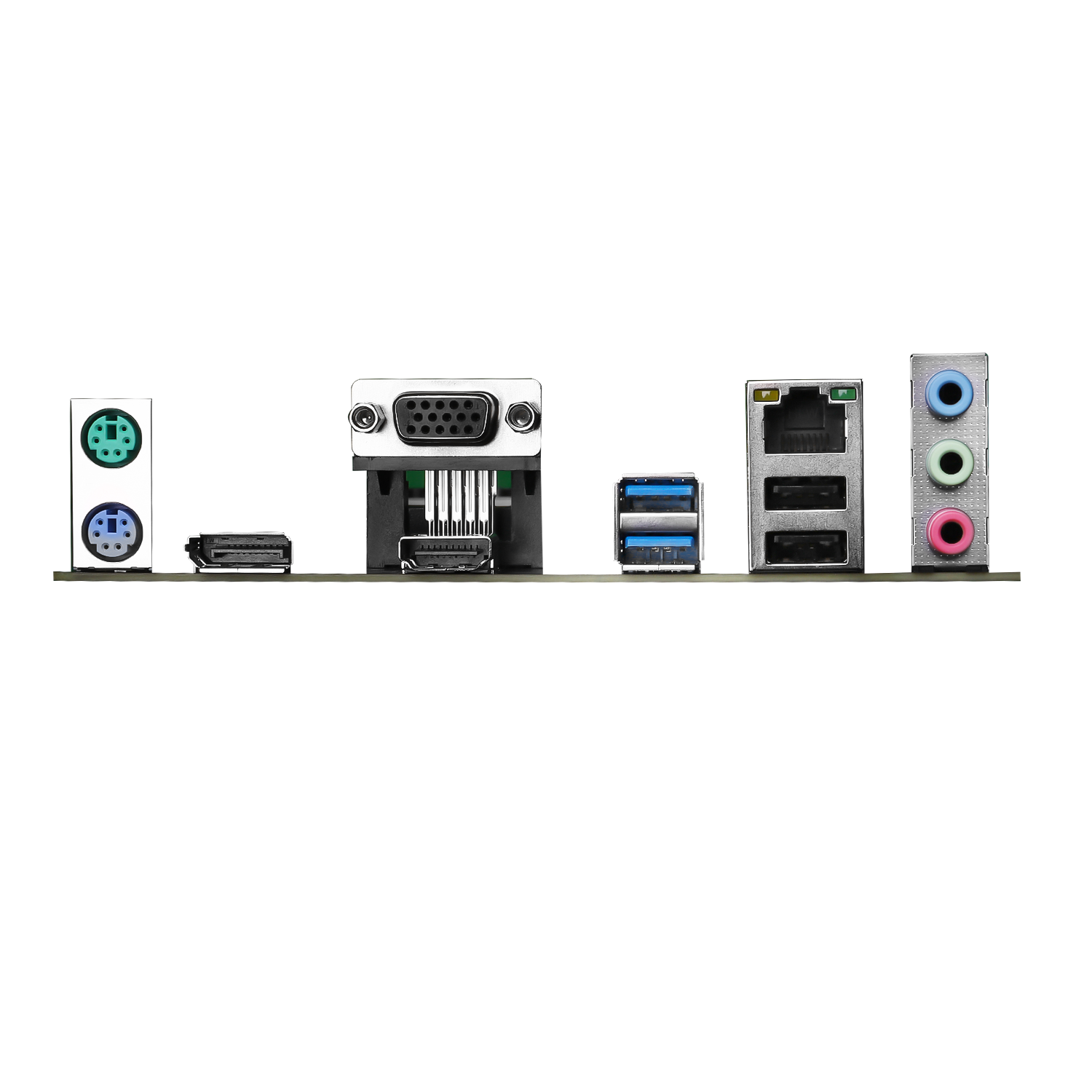

Rear Panel Interface

2xUSB3.2, 2xUSB2.0, 1xVGA Interface,1xHDMI Interface,1xDP Interface,1x Network Card Interface,

1x3-Hole Audio Interface

Front Panel Interface

2 xUSB2.0 PIN,1 xUSB3.2 PIN,1 x Front Audio PIN,,1 x Debug PIN,1 x JBAT BIOS PIN

1 x COM PIN,1 x Power On/Restart PIN，1 x TPM PIN

Support System

Windows7 Windows10 Windows11

BIOS

AMI UEFI BIOS

Packing List

1 x Motherboard,1x SATA Cable,1xWarranty Card,1xIO PANEL
