Model

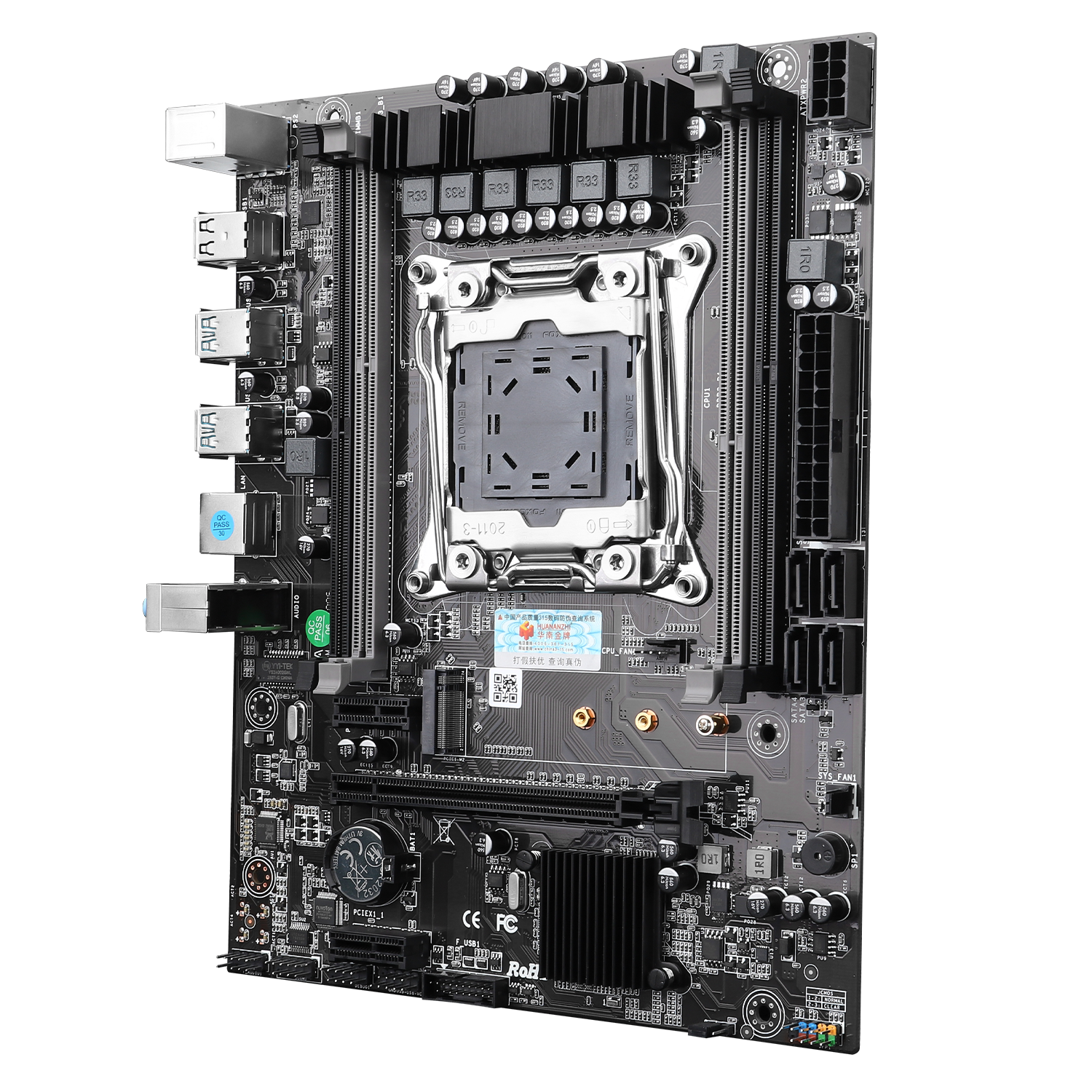

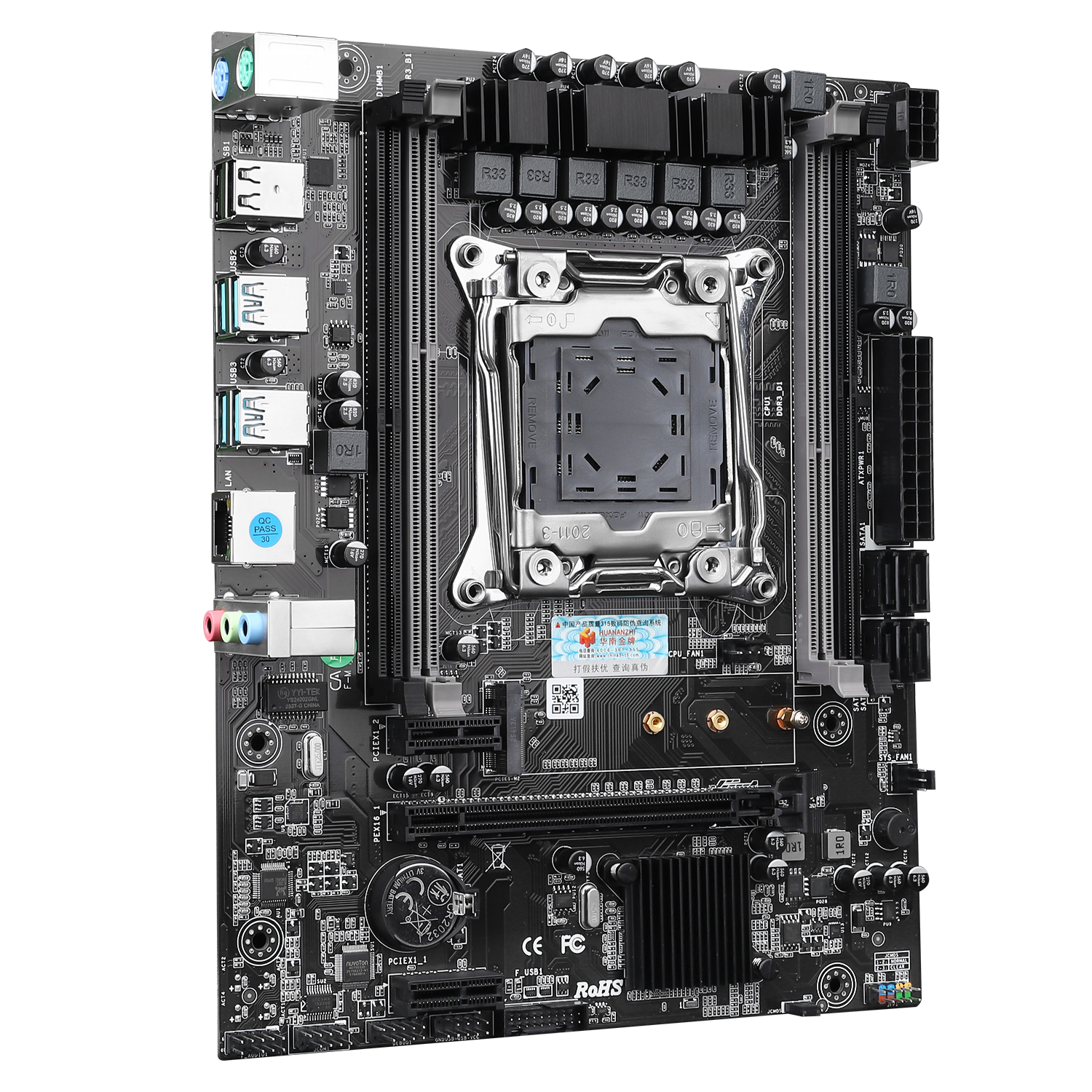

HUANANZHI X99-MTF Motherboard

Main chipset

Intel C612

CPU Socket

Support lntel LGA2011-3

Memory slot

2 x DDR3 memory slot；2 x DDR4 memory slot

Memory standard

Support Dual channels DDR31866/1600/1333MHz；DIMMDDR42400/2133/1866MHz，Max support 64GB

Storage interface

4xSATA3.06Gbps interfaces

Expansion Slots

1xPCIExpress3.0x16，2xPCIExpress2.0x1

Expansion interface

1xM.2 2280 NVME PCIEX4 3.0

Soud Track

Realtek High Fidelity Audio

Network Card

Realtek Gigabit Network Card

Power interface

24pin+8pin

FAN PIN

1xCPU_FAN PIN，1xSYS_FAN PIN

power supply

6-phase power supply

PCB layers

6-layer PCB

Dimension

235*190MM M-ATX

Rear panel interface

1xPS/2 Mouse and Keyboard port，4xUSB3.0，2xUSB2.0，1x Network card interface，1x3-hole audio interface

Front panel interface

1 x USB3.0 PIN，1 x USB2.0 PIN，1 x Front audio PIN，1 xCOMPIN，1 xPower on/restart pin，1 xCOMS Pin，1x Debug pin

Support system

Windows7 Windows10

BIOS

AMI UEFI BIOS

Packing list

1 x Motherboard，1x SATA data cable，1xWarranty card
