Model

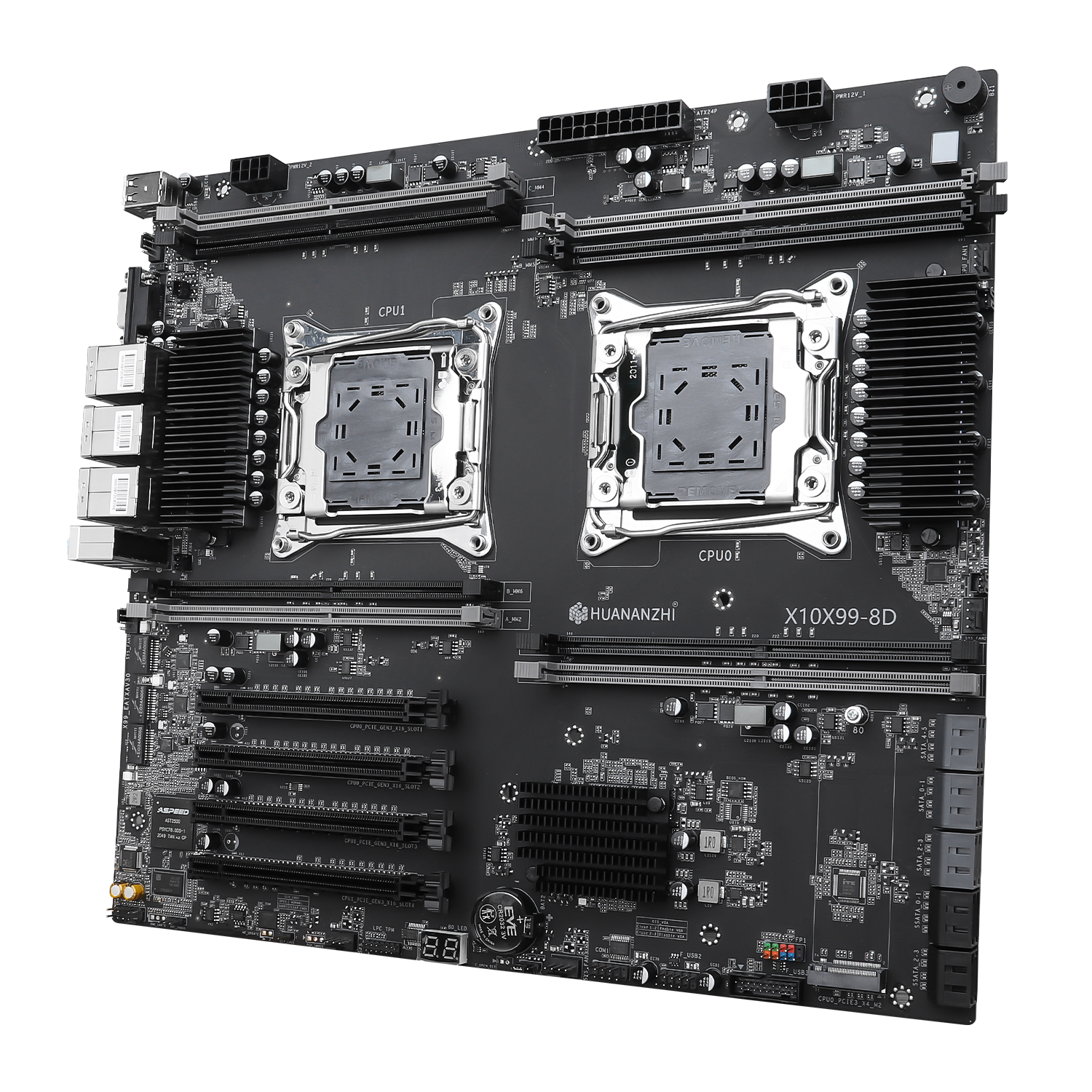

HUANANZHI X10X99-8D Motherboard

Chipset

Intel C612

CPU Socket

Support LGA2011-3 Processors

Memory Slot

8 x DDR4 Memory Slot，Support Server Memory (gray for main slot/black for secondary slot)

Memory Standard

Support four channels  DDR4  2400/2133/1866MHz，Max Support 512GB（64G*8）

Storage Interface

6xSATA 3.0 6Gb/s，4xSATA 3.0 6Gb/s，Support RAID 0/1/5/10

Expansion Slots

4xPCIe3.0x16

Expansion Interface

1xM.2  2280 NVME PCIe3.0x4

Sound Track

Realtek High Definition Audio ALC897

Network Card

2xIntel RTL812BG 2.5G Network Card, 1xIPMI Dedicated IPMI LAN port by RTL8211F

Power Interface

24PIN+8PIN+8PIN

FAN PIN

2xCPU_FAN PIN，3xSYS_FAN PIN

Power Supply

8 Phase Power Supply

PCB Layers

10-layer PCB

Dimension

290*320MM E-ATX

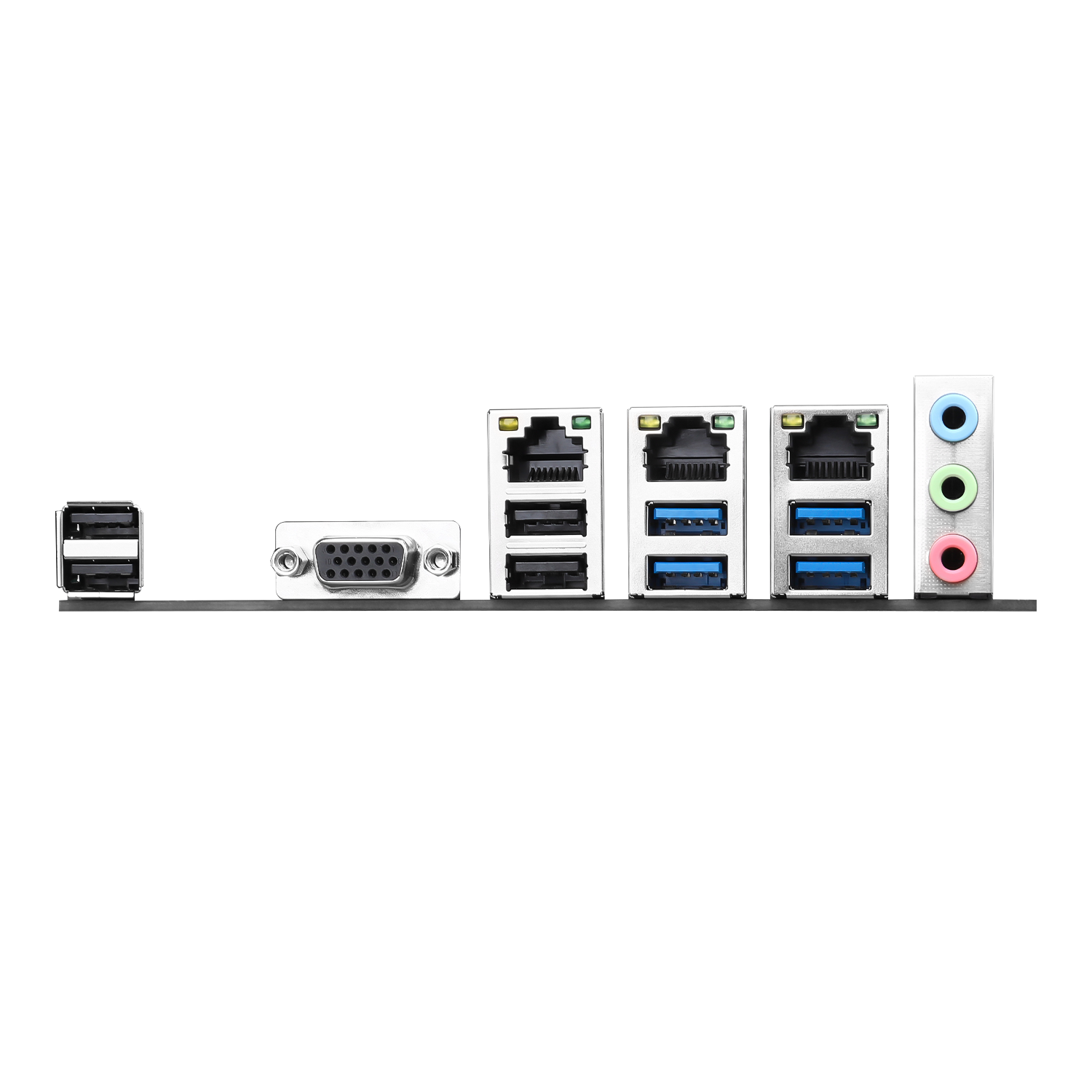

Rear Panel Interface

4xUSB2.0，4xUSB3.0，2xNetwork Card Interface，1xManagement Interface，1x3-Hole Audio Interface

Front Panel Interface

1xUSB2.0 PIN，1xUSB3.0 PIN，1xFront Audio PIN，1xCOM PIN，1xPower On/Restart PIN，1 x19 PIN TPM，1xMotherboard Buzzer

1xDebug PIN，1xBMC_RTS PIN，1xJBAT PIN，1xJINTR PIN，1xJUID_BTN PIN，2xJSGP PIN，1xSPDIF PIN

LED Standard

/

Management Headquarters

/

Support System

Windows operating system

BIOS

AMI UEFI BIOS

Packing List

1xMotherboard，1xSATA Cable，1xIO PANEL
