Model
HUANANZHI B450M-VH-B Motherboard
Main chipset
AMD B450
CPU Socket
Support AM4，AMDRyzen1-5
Memory slot
2 x DDR4 memory slot
Memory standard
Support Dual channels DIMM DDR43600/3200/3000/2666/2400MHz，Max support 64GB
Storage interface
4xSATA3.06Gbps interfaces
Expansion Slots
1xPCI-Express3.0x16，1xPCI-Express2.0x1
Expansion interface
1xM.22280（NVMEPCIEX43.0@NGFFSATA3.0 ）
Soud Track
Realtek High Fidelity Audio
Network Card
Realtek Gigabit network card
Power interface
24pin+8pin
FAN PIN
1xCPU_FAN PIN（can be temperature-controlled）1xSYS_FAN PIN（can be temperature-controlled）
power supply
6-phase power supply
PCB layers
4-layer PCB
Dimension
220*180MM M-ATX

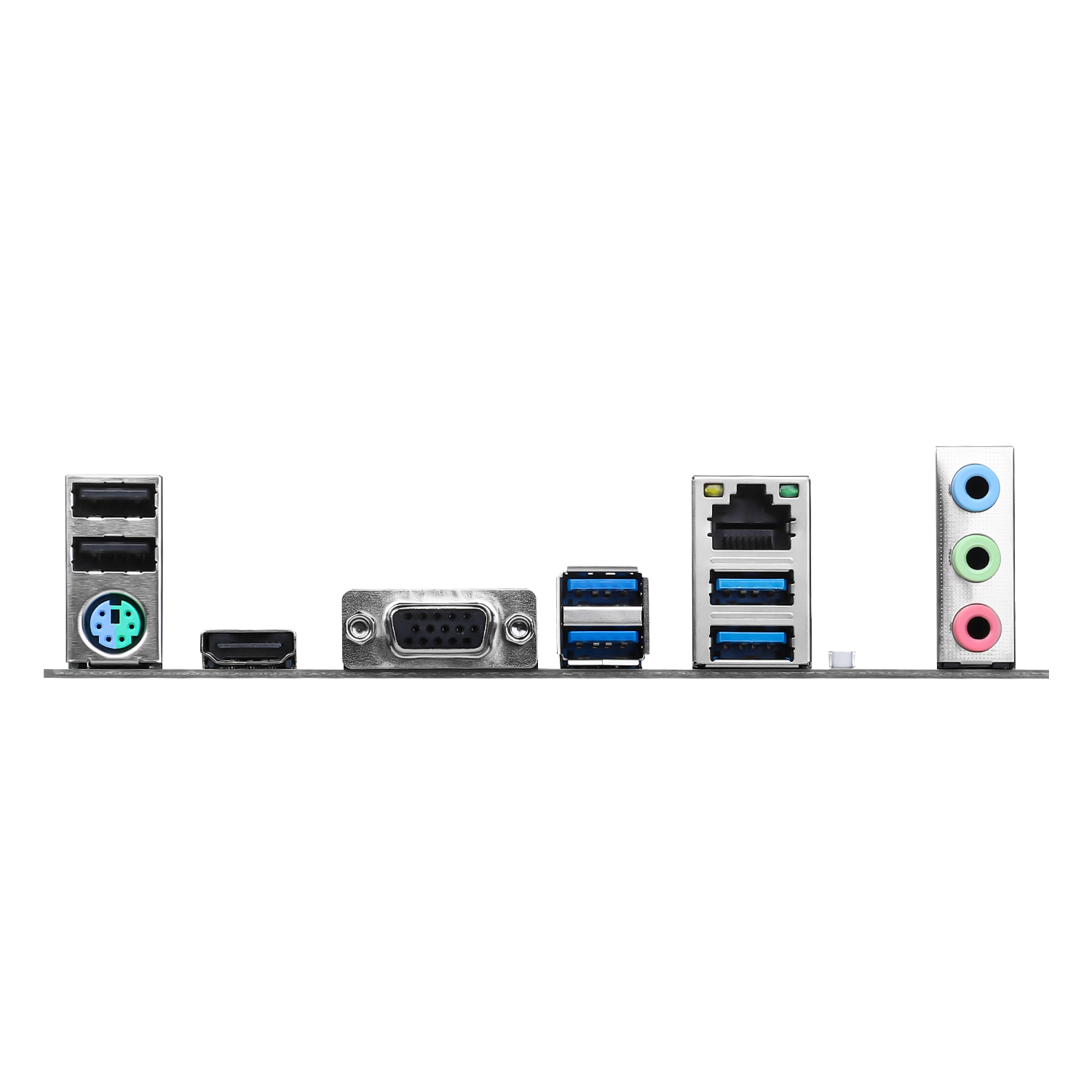

Rear panel interface
1xPS/2 Mouse and Keyboard port，4xUSB3.2Gen1，2xUSB2.0，1xHDMI，1xVGA，1x Network card interface，1x3-hole audio interface
Front panel interface
1 x USB3.2Gen1PIN，2 x USB2.0 PIN，1 xCOMPIN，1 xPower on/restart pin，1 xLPC Pin，1x Debug pin
Support system
Windows10 Windows11
BIOS
AMI UEFI BIOS
Packing list
1 x Motherboard，1x SATA data cable，1xWarranty card
-
B450M-VH-B Motherborad Drive Download
-
User Manual
Installation video
B450M-VH-B
- Supports AMD AM4 platform processors
- Compatible with AMD Ryzen 1st–5th Gen processors
- Supports dual-channel DDR4 memory at 3600/3200/3000/2933/2666/2400/2133MHz
- 4 × SATA 3.0 6Gbps interfaces
- 1 × PCI Express 3.0 x16， 1 × PCI Express 2.0 x1
- 1 × M.2 2280 NVMe PCIe x4 3.0 & NGFF SATA3.0
- 4 × USB 3.2 Gen1， 1 × HDMI, 1 × VGA
Buy
- Compatible with AMD Ryzen 1st–5th Gen processors
- Supports dual-channel DDR4 memory at 3600/3200/3000/2933/2666/2400/2133MHz
- 4 × SATA 3.0 6Gbps interfaces
- 1 × PCI Express 3.0 x16， 1 × PCI Express 2.0 x1
- 1 × M.2 2280 NVMe PCIe x4 3.0 & NGFF SATA3.0
- 4 × USB 3.2 Gen1， 1 × HDMI, 1 × VGA
