Model
HUANANZHI X99-F8D PLUS V1.2 Motherboard
Main chipset
Intel C612
CPU Socket
Support Intel LGA2011-3
Memory slot
8*DDR4 memory slot，
Memory standard
Support Four channels DDR4 2400/2133/1866MHz，Max support 64G*8GB
Storage interface
6 x SATA3.0 6Gbps interfaces，4 x sSATA3.0 6Gbps
Expansion Slots
3xPCI Express3.0X16，3xPCIExpress3.0x8
Expansion interface
2xM.2 22110 NVME PCIE X4 3.0，1xM.2 2280 NVME PCIE X4 2.0&NGFF SSATA3.0 Gbps（It occupies one SATA signal when in use.）
Soud Track
7.1 sound card
Network Card
2 x Realtek RTL8125BG 2.5Gbps LAN
Power interface
24pin+8pin+8pin
FAN PIN
2xCPU_FAN PIN，4xSYS_FAN PIN
power supply
8+8 phase power supply
PCB layers
12-layer PCB
Dimension
305*330MM E-ATX

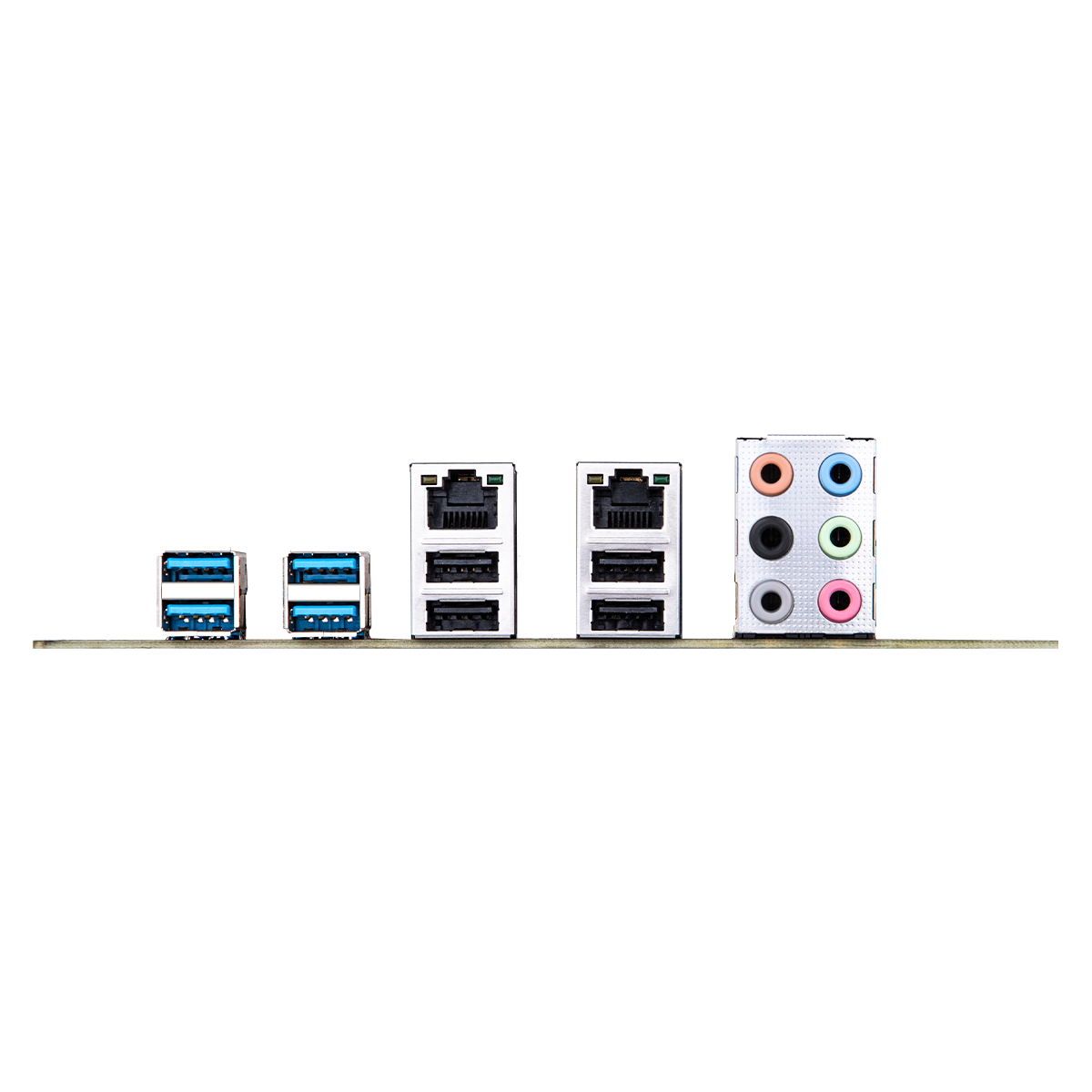

Rear panel interface
4xUSB2.0，4xUSB3.0，2x Network card interface，1x6-hole audio interface
Front panel interface
2 x USB2.0 PIN，1 x USB3.0 PIN，1 x Front audio PIN，1 xCOM PIN，1 xpower switch PIN，1x buzzer Pin
1xdiagnostic card PIN，1xpower/reset PIN
Support system
Windows7 Windows10 Windows11
BIOS
AMI UEFI BIOS
Packing list
1 x Motherboard，2x SATA data cable，1xWarranty card
-
X99-F8D PLUS V1.2 Motherboard Drive Download
X99-F8D PLUS V1.2 Sound card Drive Download
X99-F8D PLUS V1.2 Network card Drive Download
X99-F8D PLUS V1.2 ME Drive Download
-
User Manual
Installation video

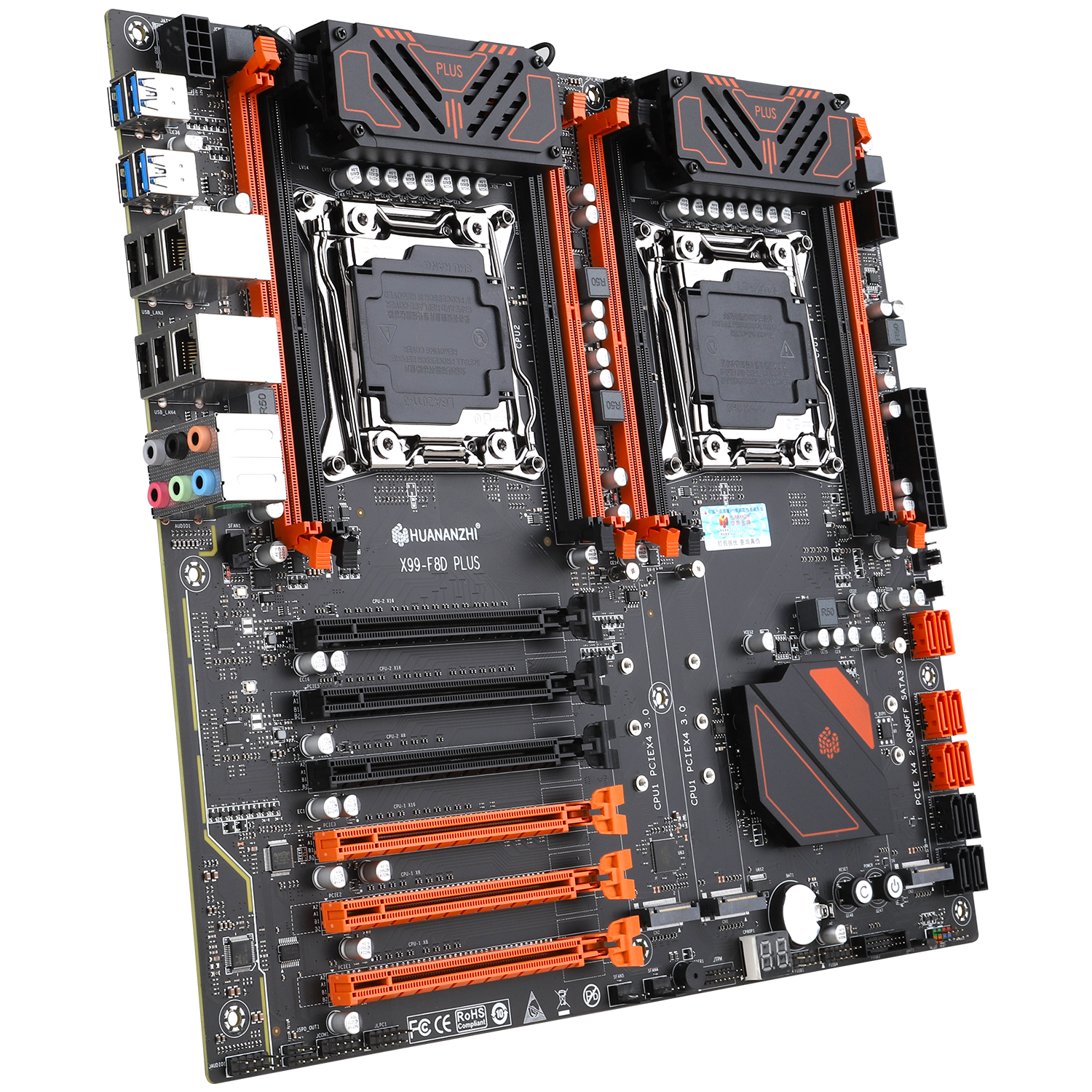

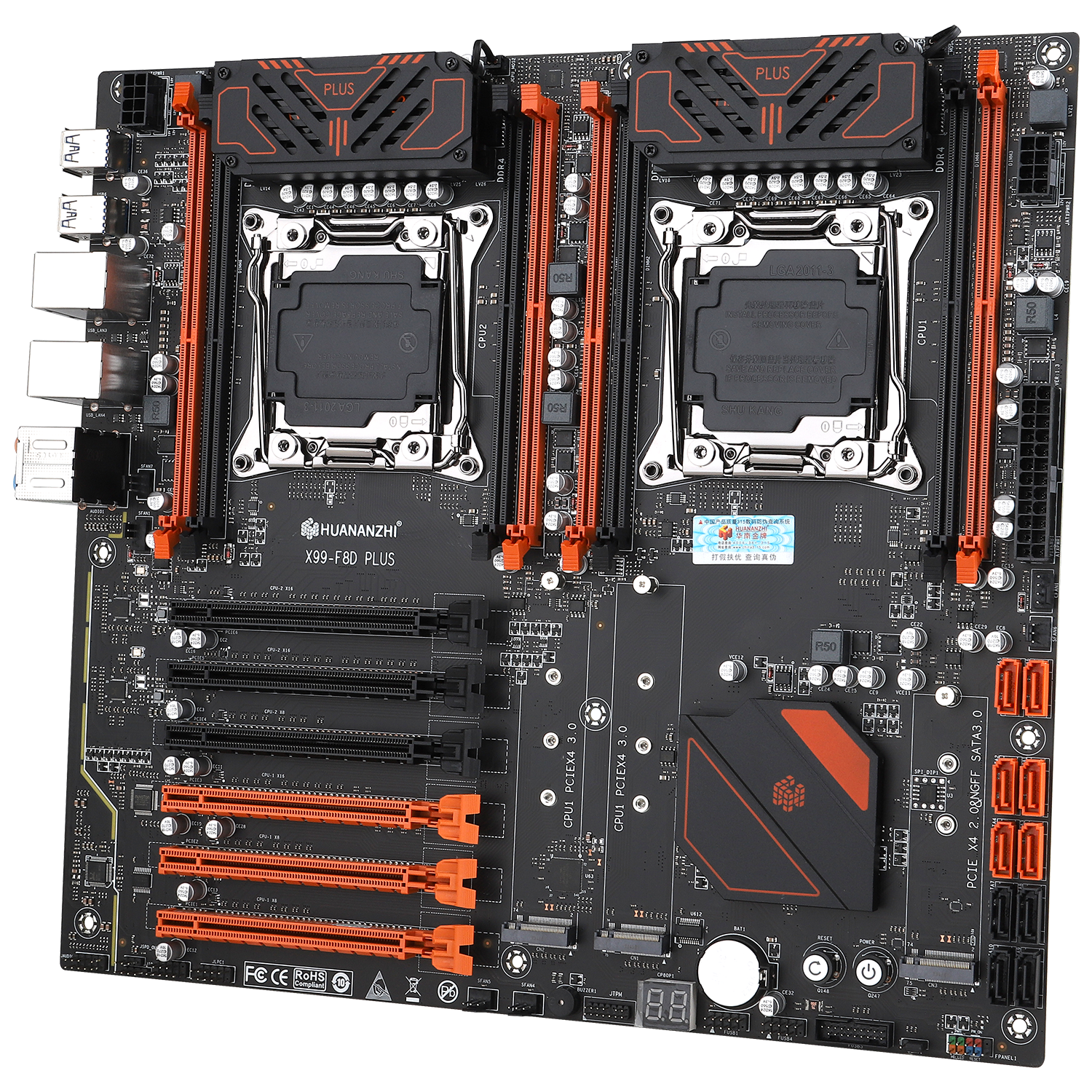

X99-F8D PLUS V1.2
· Supports dual Intel LGA2011-3 processors
· 8 x DDR4 memory slots, quad-channel per processor, supports DDR4 1866/2133/2400MHz, max. 512GB memory capacity
· Supports both ECC server memory and standard desktop memory
· 2 x M.2 22110 NVMe PCIe 3.0 x4 slots
· 1 x M.2 2280 NVMe PCIe 2.0 x4 & NGFF SATA3.0 6Gbps slot (occupies one SATA signal when in use)
· Onboard diagnostic card, power/reset buttons
· 7.1-channel audio with ALC897 codec
· 12-layer PCB with 8+8 phase power design
· 4 x USB 3.0 ports, 4 x USB 2.0 ports (supports 1 additional USB 3.0 header and 2 USB 2.0 headers)
· 6 x SATA3.0 6Gbps ports, 4 x sSATA3.0 6Gbps ports
· 3 x PCI Express 3.0 x16 slots, 3 x PCI Express 3.0 x8 slots
· Dual 2.5G LAN (RTL8125BG controllers)
