Model

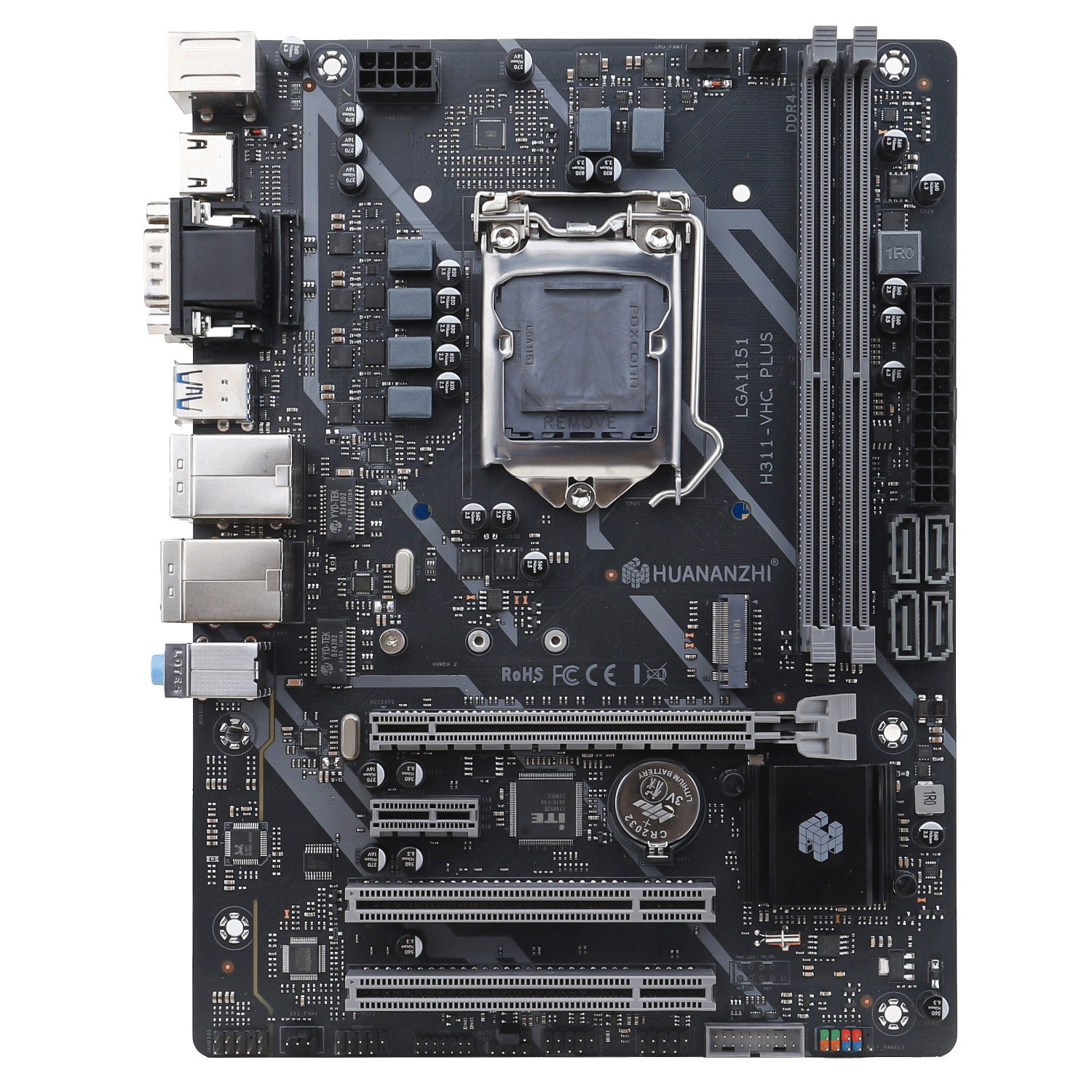

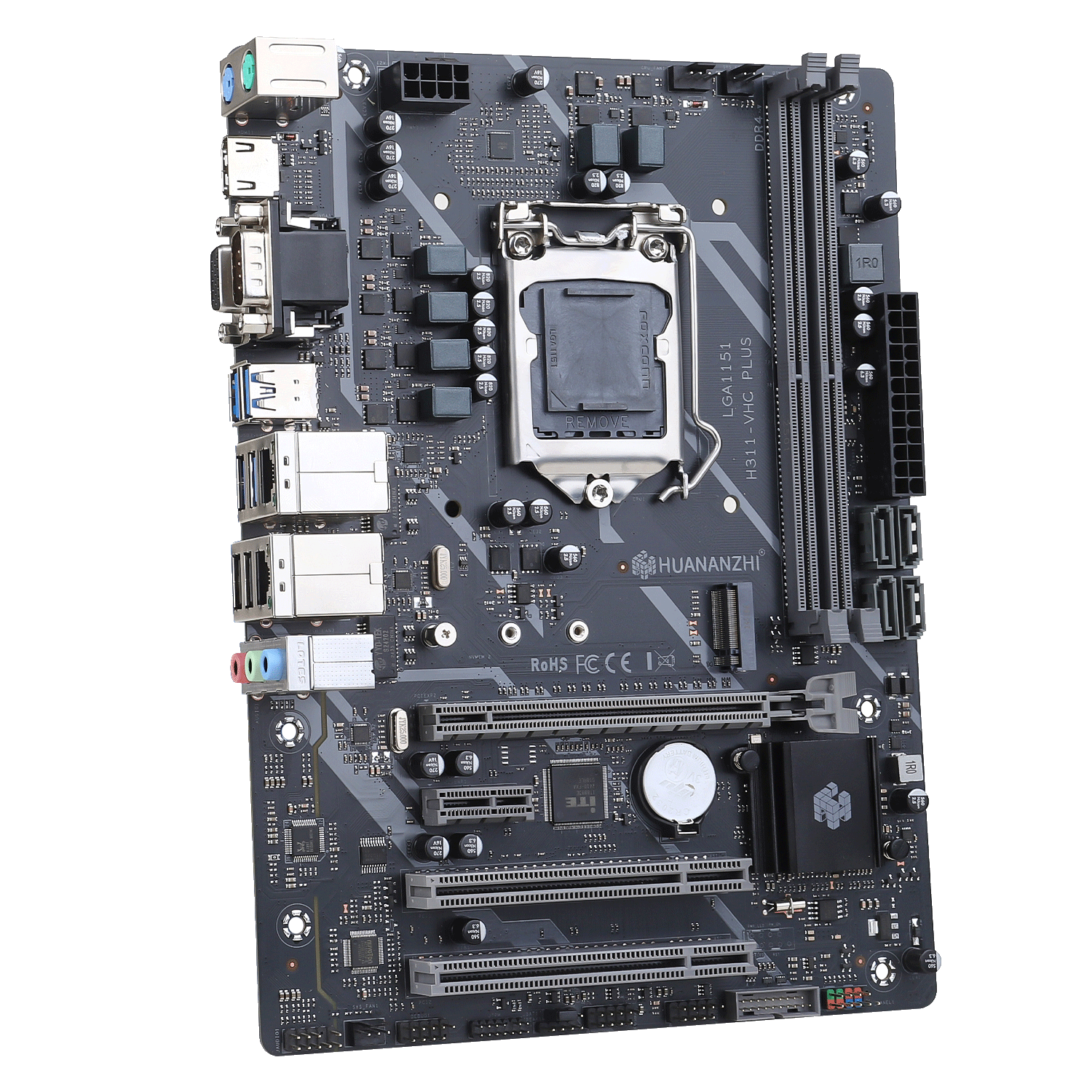

HUANANZHI H311-VHC PLUS V3.0 Motherboard

Main chipset

Intel 100

CPU Socket

Support Intel LGA1151 CPU

Memory slot

2 x DDR4 memory slot

Memory standard

Support Dual DDR4 2666/2400/2133/ 1866MHz，Max support 32GB

Storage interface

4xSATA3.0 6Gbps interfaces

Expansion Slots

1xPCI Express3.0 x16，1xPCI Express2.0 x1，2x PCI

Expansion interface

1xM.2 2280 NVME PCIE X4 2.0

Soud Track

Realtek High Fidelity Audio

Network Card

2*Realtek Gigabit network card

Power interface

24PIN+8PIN

FAN PIN

1xCPU_FAN PIN（Temperature-controllable），2xSYS_FAN PIN

power supply

6-phase power supply

PCB layers

4-layer PCB

Dimension

240*180MM M-ATX

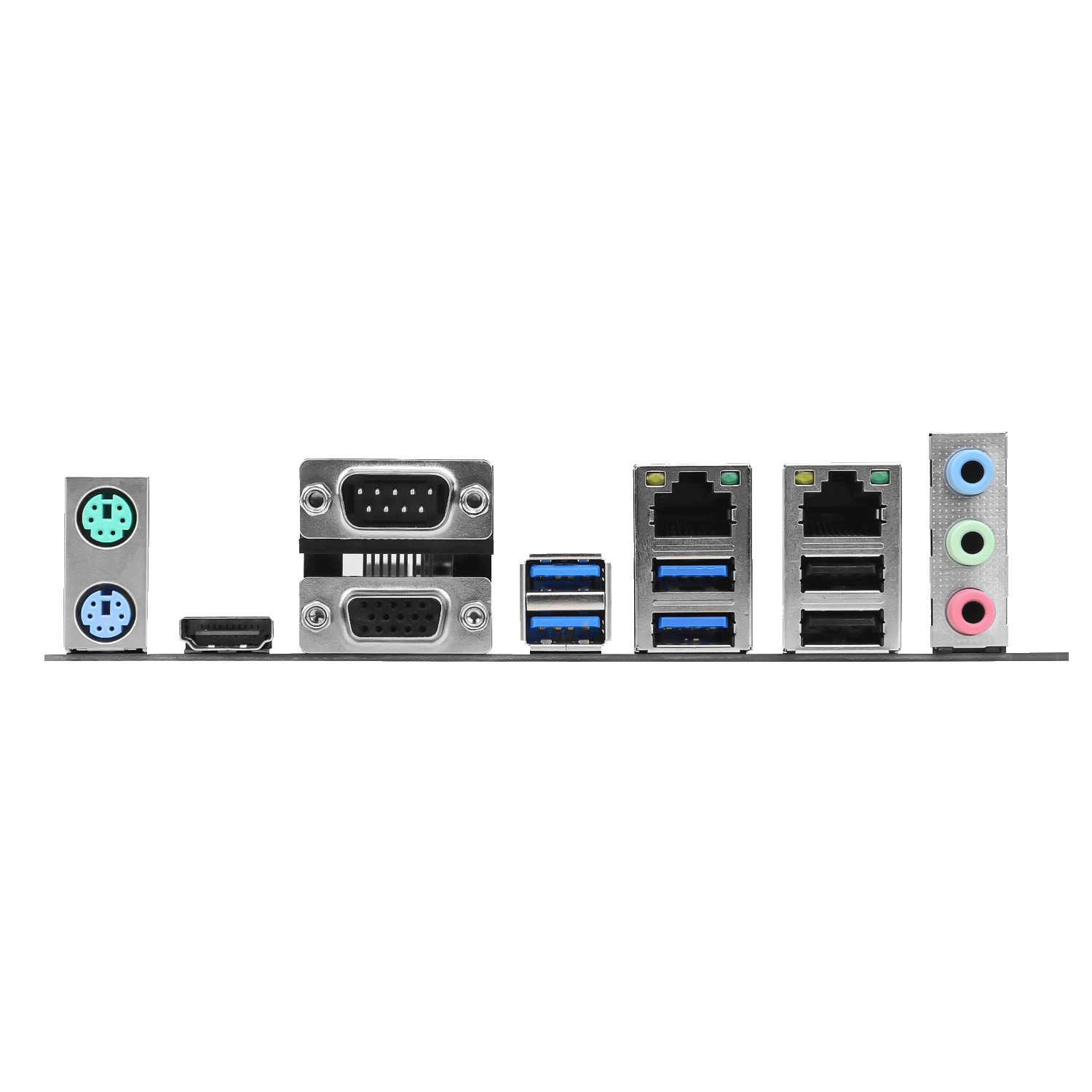

Rear panel interface

4xUSB3.0，2xUSB2.0，1xHDMI 2.0，1xVGA，2x Network card interface，1x3-hole audio interface，1xCOM PIN，1xPS/2

Front panel interface

1 x USB3.0 PIN，2 x USB2.0 PIN，1 x Front audio PIN，1 xDEBUG PIN，1 xPower on/restart PIN，1x JBAT BIOS PIN

1 xTPM2.0 PIN，1 xSPEAK PIN

Support system

Windows10 Windows11（Support incoming call startup/timed startup/network wake-up IPV4/IPV6 diskless startup/CFAN temperature control）

BIOS

AMI UEFI BIOS

Packing list

1 x Motherboard，1x SATA data cable
