Model

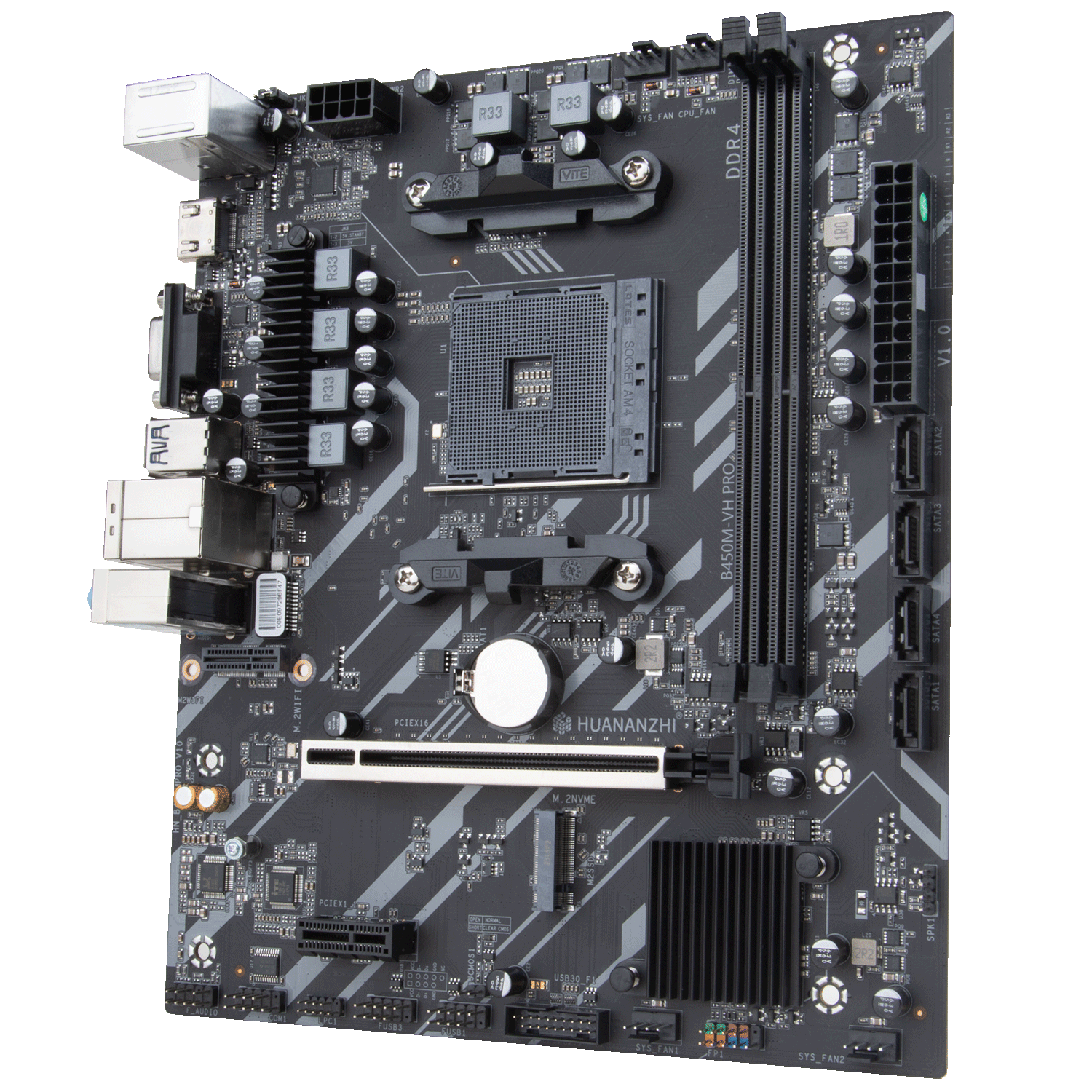

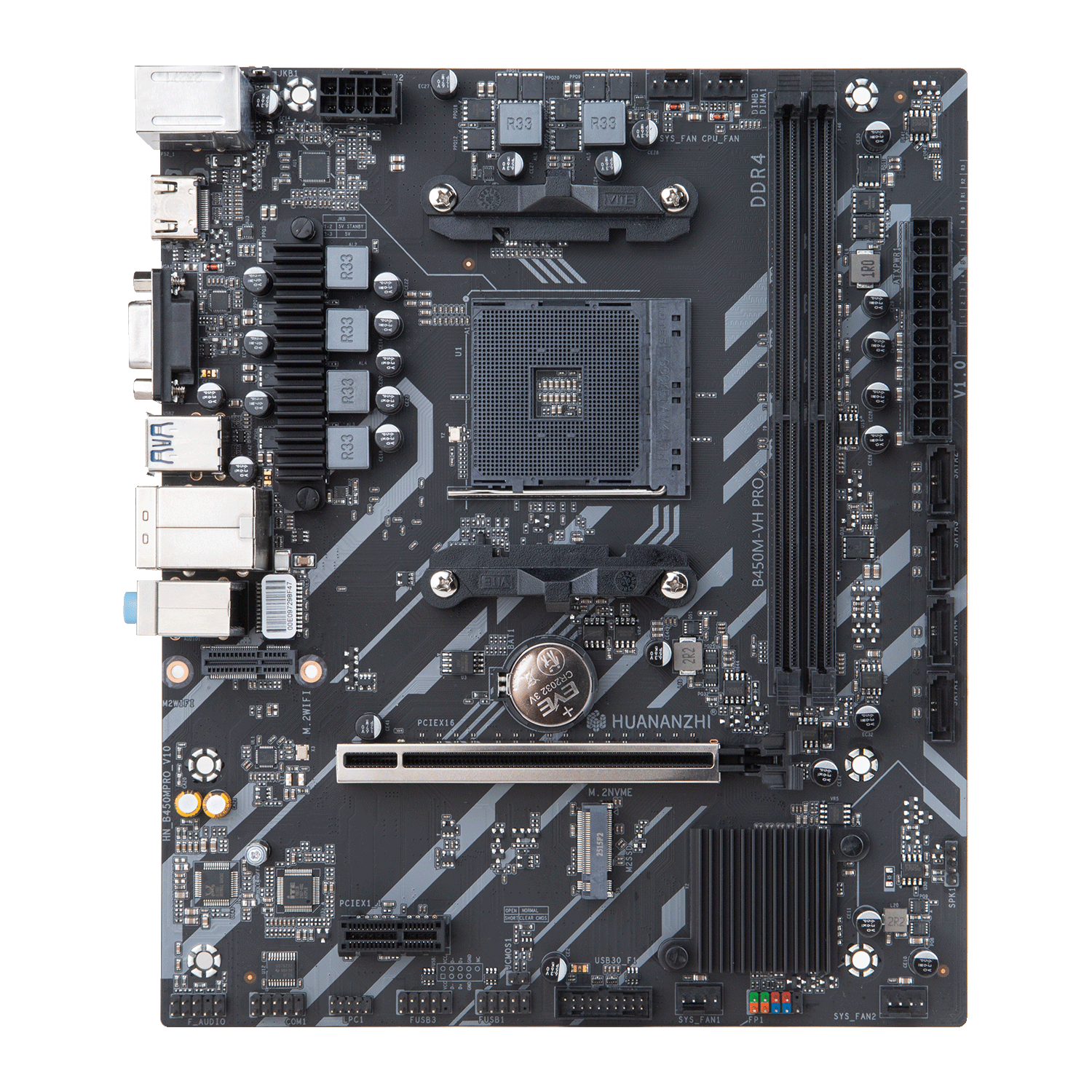

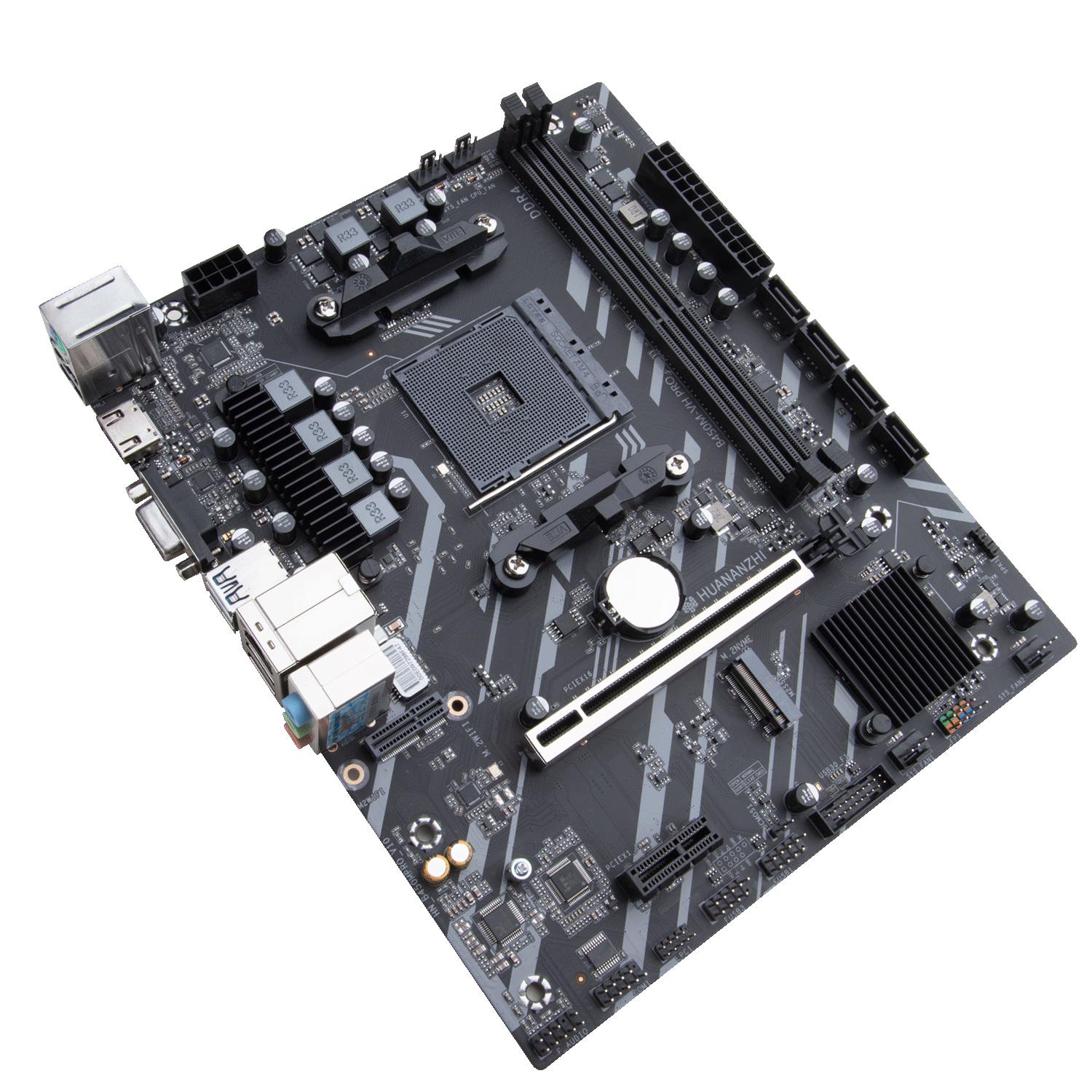

HUANANZHI B450M-VH PRO V1.0  Motherboard

Main chipset

AMD B450

CPU Socket

Support AM4 ，support AMD Ryzen1-5 CPU

Memory slot

2 x DDR4 memory slot

Memory standard

Support Dual DIMM DDR4 3600/3200/3000/2666/2400MHz，Max support 64GB

Storage interface

4xSATA3.0 6Gbps interfaces

Expansion Slots

1xPCI Express3.0 x16，1xPCI Express2.0 x1

Expansion interface

1xM.2 2280 (NVME PCIE X4 3.0&NGFF，1xM.2 WIFI（Only the PCIe protocol is supported at the I/O ports.）

Soud Track

Realtek High Fidelity Audio

Network Card

Realtek Gigabit network card

Power interface

24PIN+8PIN

FAN PIN

1xCPU_FAN PIN（Temperature-controllable），1xSYS_FAN PIN（Temperature-controllable），1xSYS FAN1/2 PIN

power supply

6-phase power supply

PCB layers

4-layer PCB

Dimension

220*190MM M-ATX

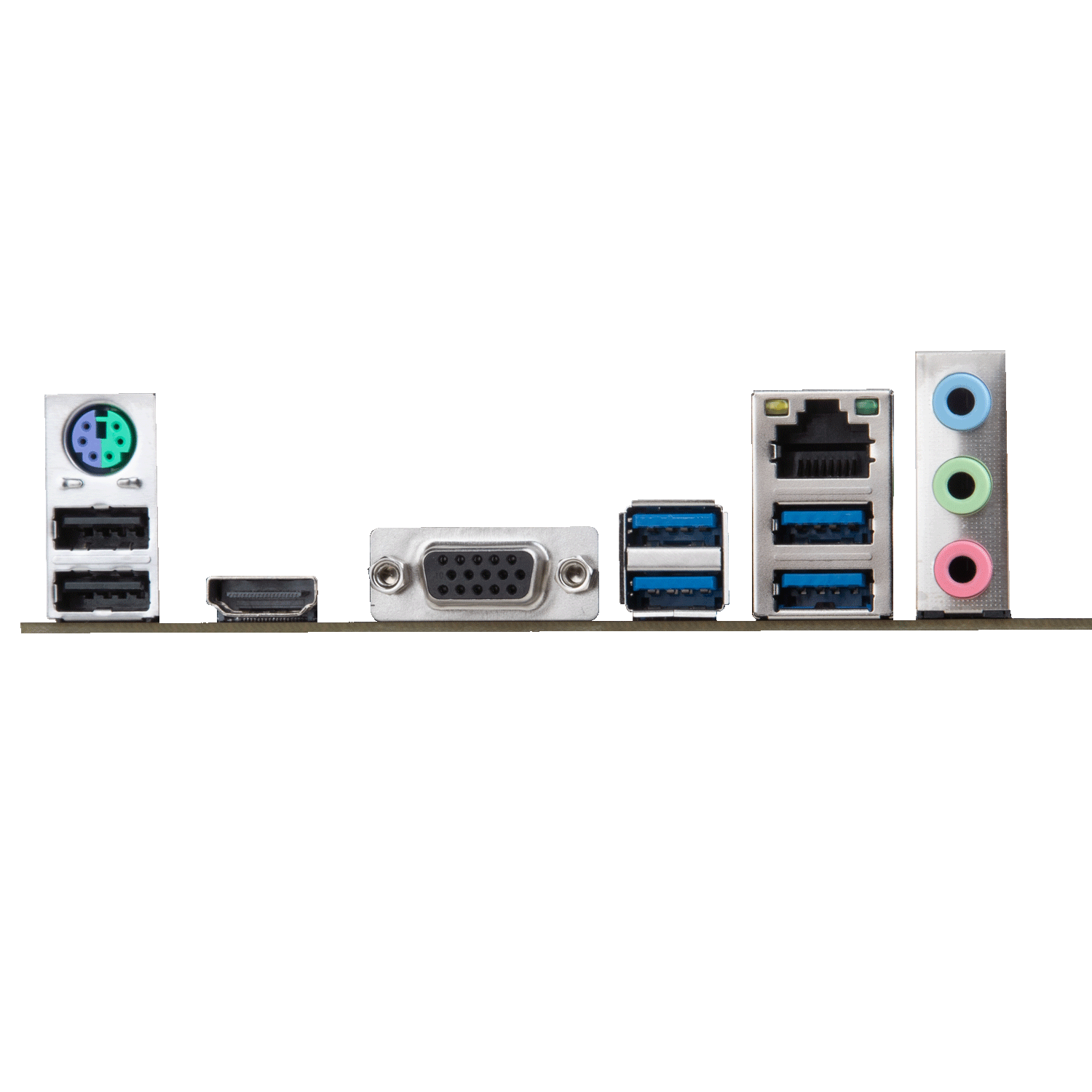

Rear panel interface

1xPS/2，4xUSB3.2 Gen1，2xUSB2.0，1xHDMI，1xVGA，1x Network card interface，1x3-hole audio interface，1xVertical WIFI reserved interface

Front panel interface

1 x USB3.2 Gen1 PIN，2 x USB2.0 PIN，1 x Front audio PIN，1 xJKB PIN，1 xPower on/restart PIN，1x LPC PIN，1 xSPK PIN

Support system

Windows10 Windows11（Support incoming call startup/timed startup/network wake-up IPV4/IPV6 diskless startup/CFAN temperature control）

BIOS

AMI UEFI BIOS

Packing list

1 x Motherboard，1x SATA data cable
