Graphics card model

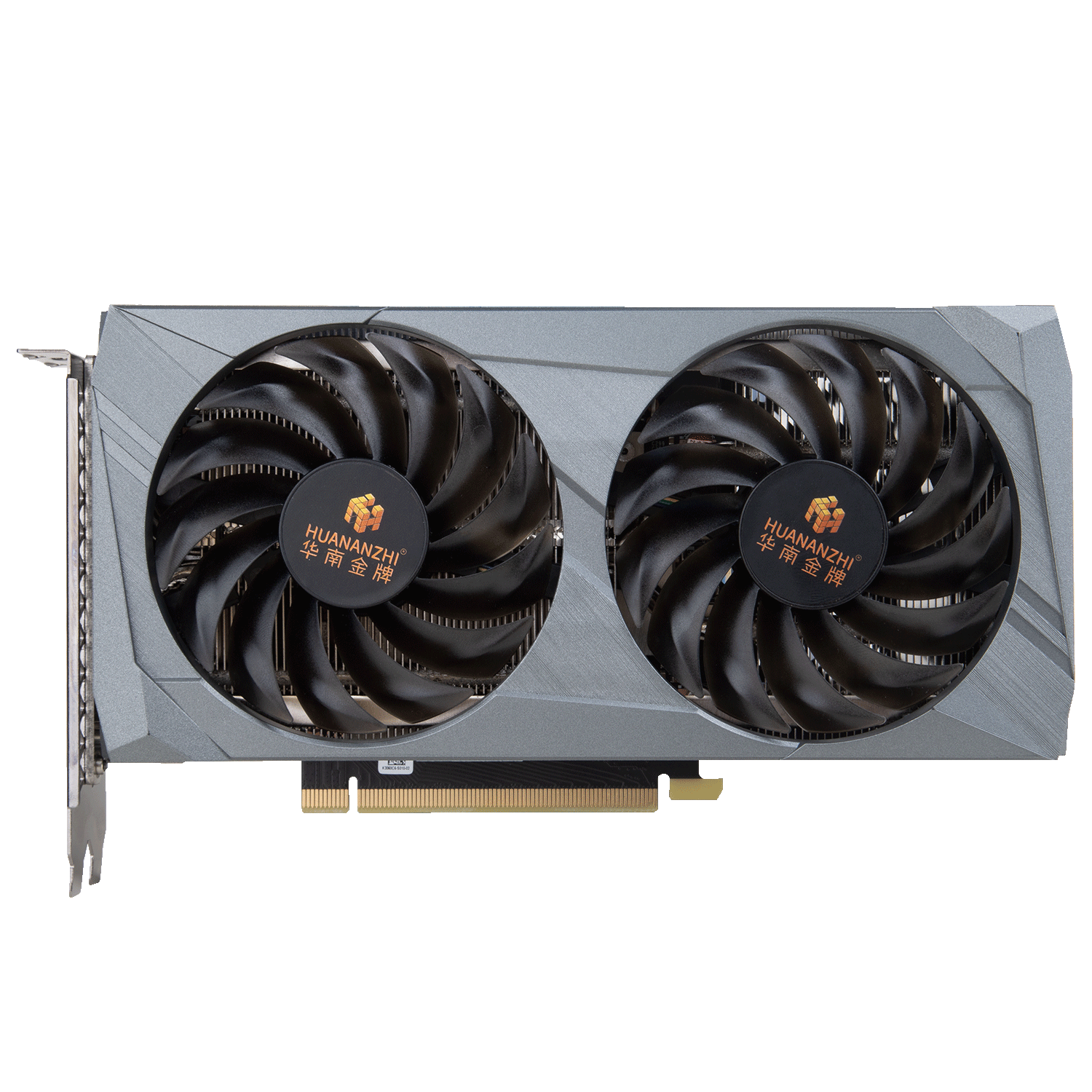

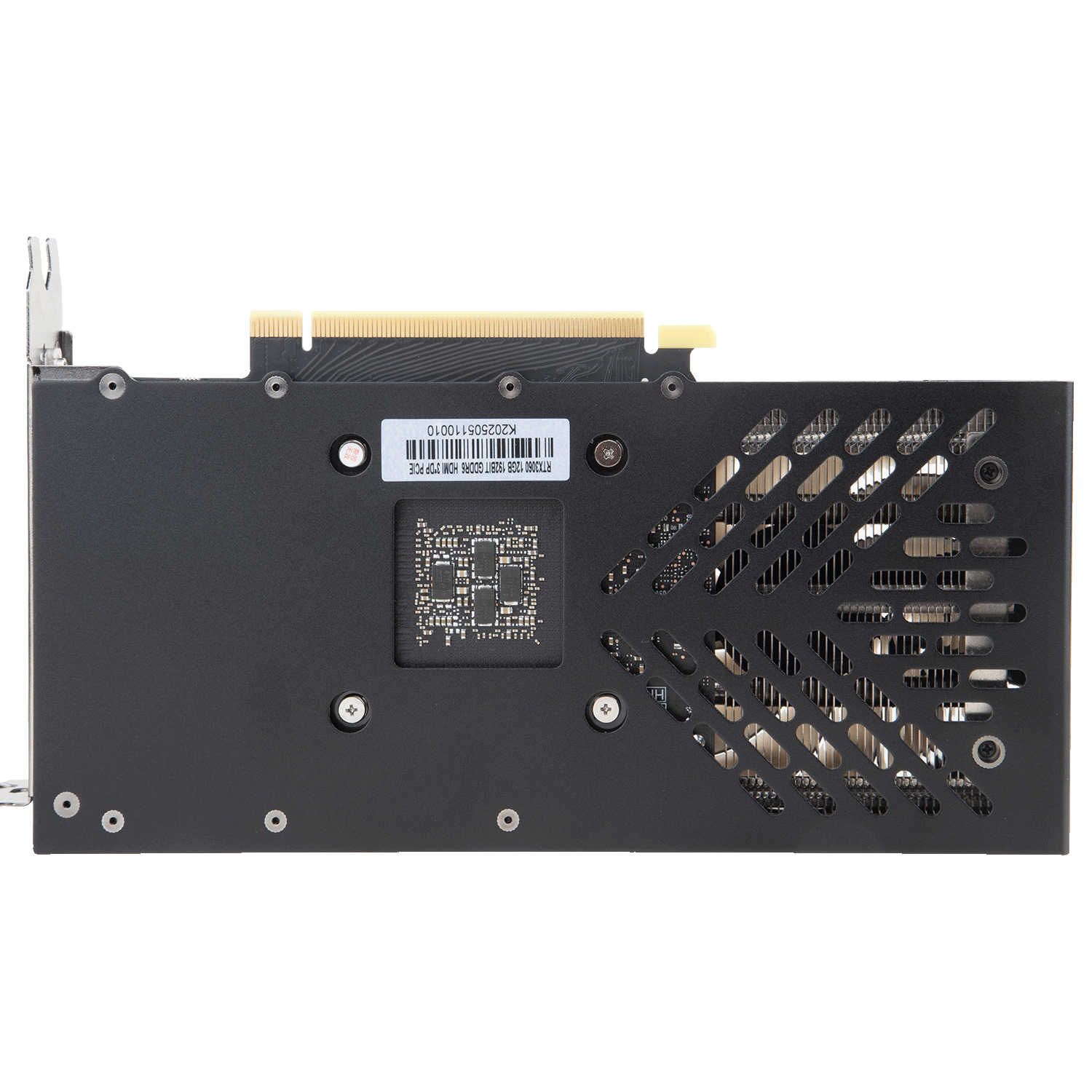

HUANANZHI RTX3060 12G-B Graphics card
Model Number
RTX3060 12G
Chip manufacturers
NVDIA
Graphics chip
GeForce RTX3060
Display chip series
NVDIA RTX30 series
Sandy Bridge
GA106(LHR)
Core Frequency
1320MHZ
CUDA core
3584
Video Memory Specifications
/
Memory frequency
15000MHz
memory type
GDDR6
Memory capacity
12G
Bit
192BIT
Maximum Resolution
7680*4320
interface type
PCI Express 4.0 X16
I/O interface
1*HDMI，3*Display Port
power interface
8PIN
Graphics card type
Mainstream level
Graphics card heat dissipation
Dual fan cooling
3D API
DirectX 12/OpenGL 4.6/Virtual Reality/Ray Tracing
Support HDCP
YES HDCP2.3
Product size
225*110*43MM
Max power consumption
170w
Suggested power supply
600W more than
-
User Manual
Installation video
RTX3060 12G-B
· GPU: RTX 3060
· CUDA Cores: 3584
· Memory Specs: 12GB/192bit GDDR6
· Output Ports: 1*HDMI, 3*DP
· Cooling: Dual-fan
· Supported Technologies: G-SYNC Compatible, Game Ready Drivers, DirectX 12 / OpenGL 4.6 / VR Ready / Ray Tracing
· Max Digital Resolution (8K Support): 7680*4320
Buy
· CUDA Cores: 3584
· Memory Specs: 12GB/192bit GDDR6
· Output Ports: 1*HDMI, 3*DP
· Cooling: Dual-fan
· Supported Technologies: G-SYNC Compatible, Game Ready Drivers, DirectX 12 / OpenGL 4.6 / VR Ready / Ray Tracing
· Max Digital Resolution (8K Support): 7680*4320
