Graphics card model

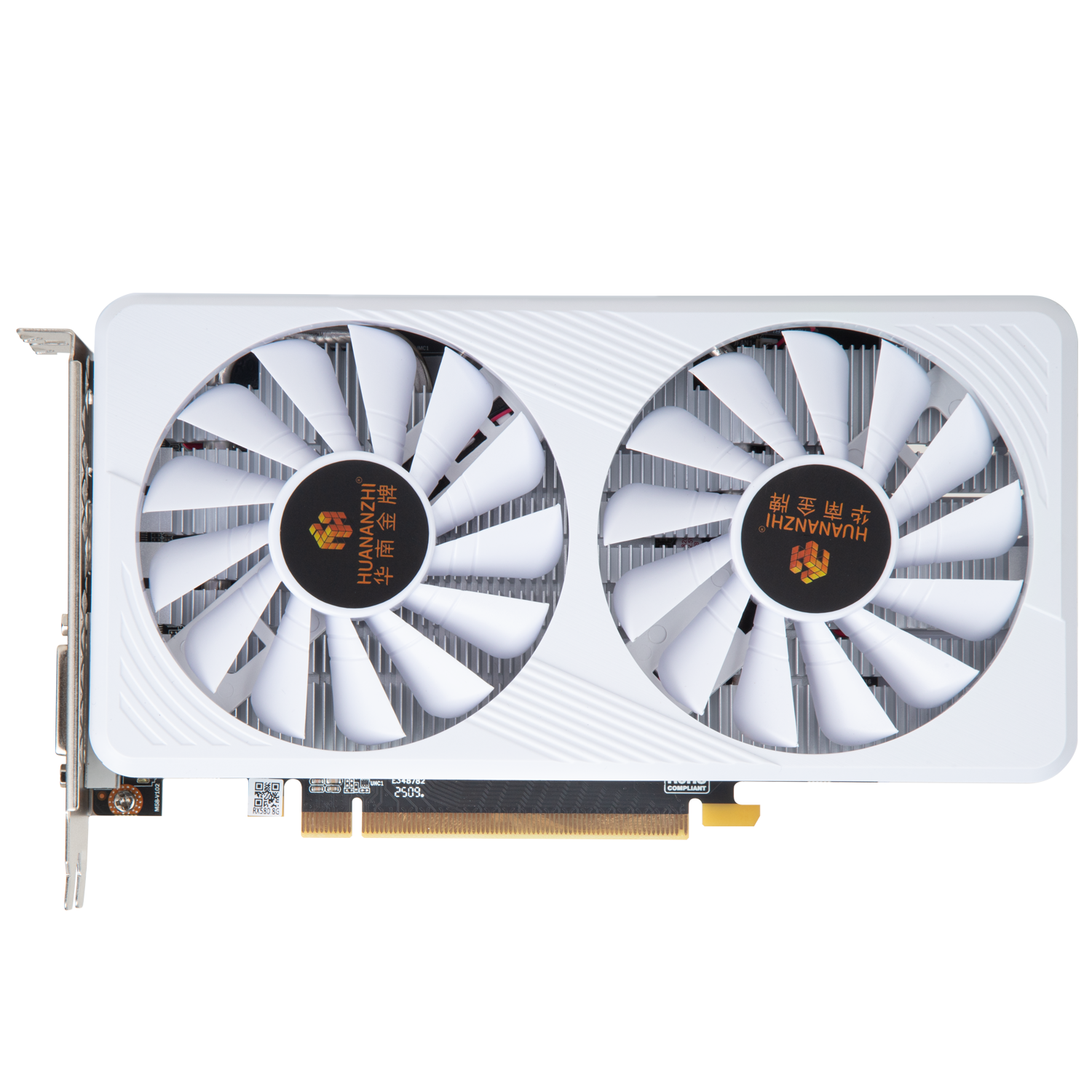

HUANANZHI RX580 8G-D 2048SP Graphics card
Model Number
RX580 8G
Chip manufacturers
AMD
Graphics chip
AMD Radeon RX580
Display chip series
AMD Radeon RX500 series
Sandy Bridge
Ellesmere
Core Frequency
1206MHZ
CUDA core
2048
VideoMemory Specifications
/
Memory frequency
6000MHz
memory type
GDDR5
Memory capacity
8G
Bit
256BIT
Maximum Resolution
4096*2160
interface type
PCI Express 3.0 16X
I/O interface
1*HDMI，1*DP ，1*DVI
power interface
8PIN
Graphics card type
Mainstream level
Graphics card heat dissipation
Dual fan cooling
3D API
DirectX 12/OpenGL 4.5
Support HDCP
YES
Product size
210*120*40MM
Max power consumption
185w
Suggested power supply
400W more than
-
User Manual
Installation video
RX580 8G-D 2048sp
· Model: AMD Radeon RX580 2048sp
· Stream Processing Units: 2048 ·
· Video Memory Specification: 8GB/256bit GDDR5
· Output Interfaces: 1*HDMI, 1*DP, 1*DVI
· Cooling Method: Dual-fan and dual-heat-pipe air cooling
· Supported Technologies: DirectX 12, OpenGL4.5
· Maximum Digital Resolution for 8K Display Output: 4096*2160
