Model

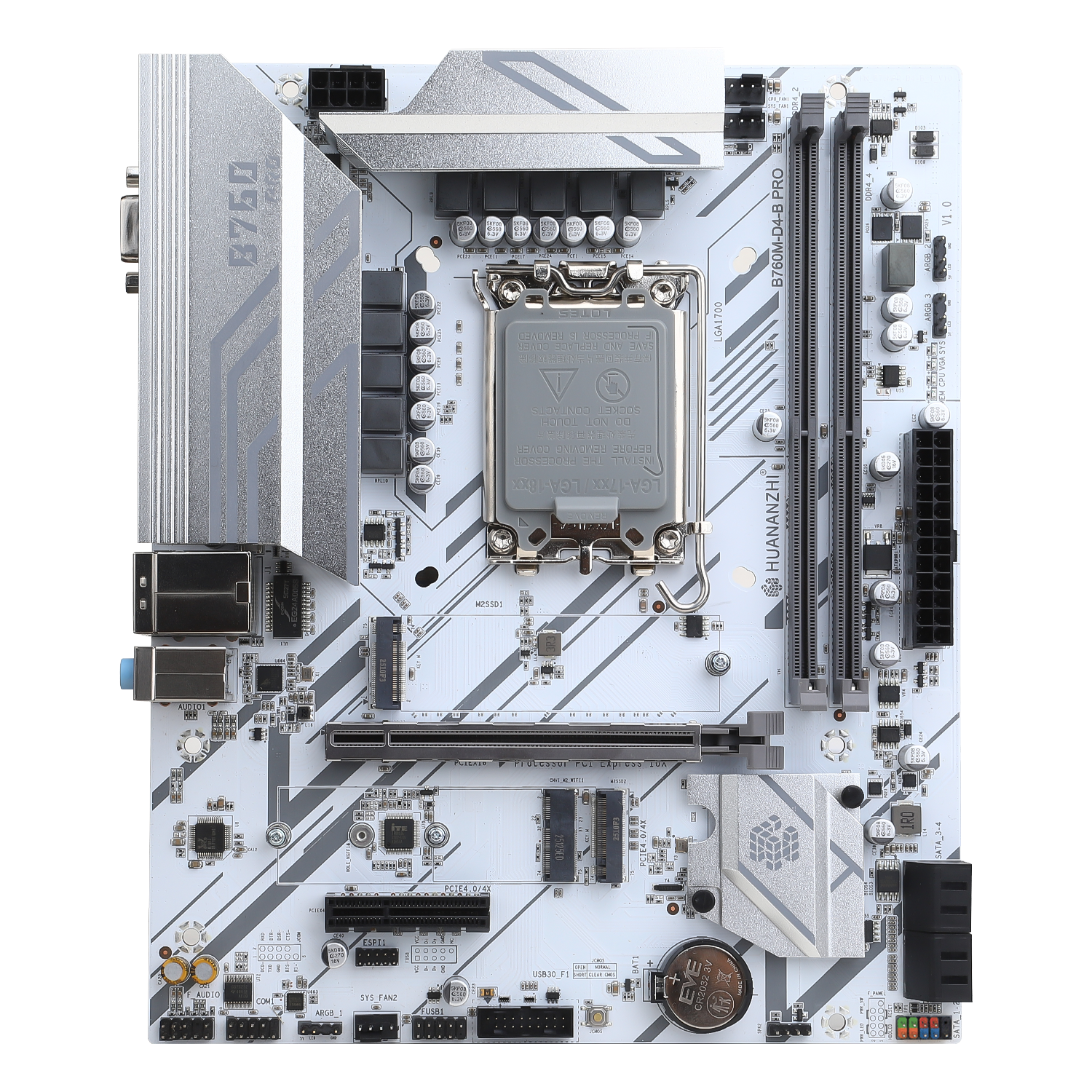

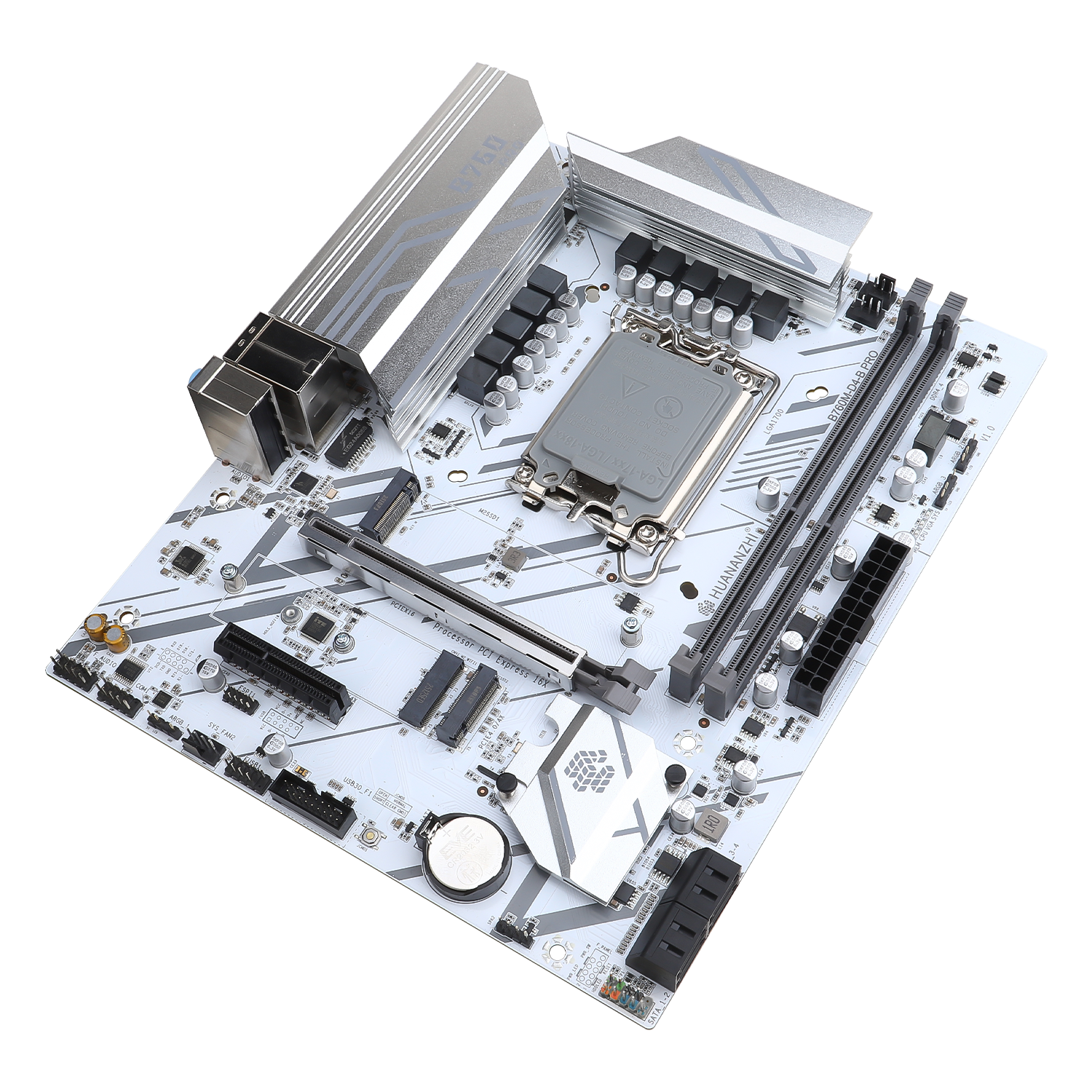

HUANANZHI B760M-D4-B PRO Motherboard
Main chipset
IntelB760
CPU Socket
Support Intel LGA1700，support intel 12/13/14 Core CPU
Memory slot
2 x DDR4 memory slot
Memory standard
Support Dual channels DDR4 4000/3600/3200/2933/2666/2133MHz，Max support 64GB
Storage interface
4xSATA3.0 6Gbps interfaces
Expansion Slots
1xPCI Express4.0 x16，1xPCI Express3.0 x4
Expansion interface
1xM.2 2280 NVME PCIE X4 4.0，1xM.2 WIFi（CNVI&PCIE）
Soud Track
Realtek High Fidelity Audio
Network Card
Realtek 2.5G network card RTL8125BG
Power interface
24PIN+8PIN
FAN PIN
1xCPU_FAN PIN，2xSYS_FAN PIN，3x5V ARGB PIN
power supply
10-phase power supply
PCB layers
6-layer PCB
Dimension
235*195MM M-ATX

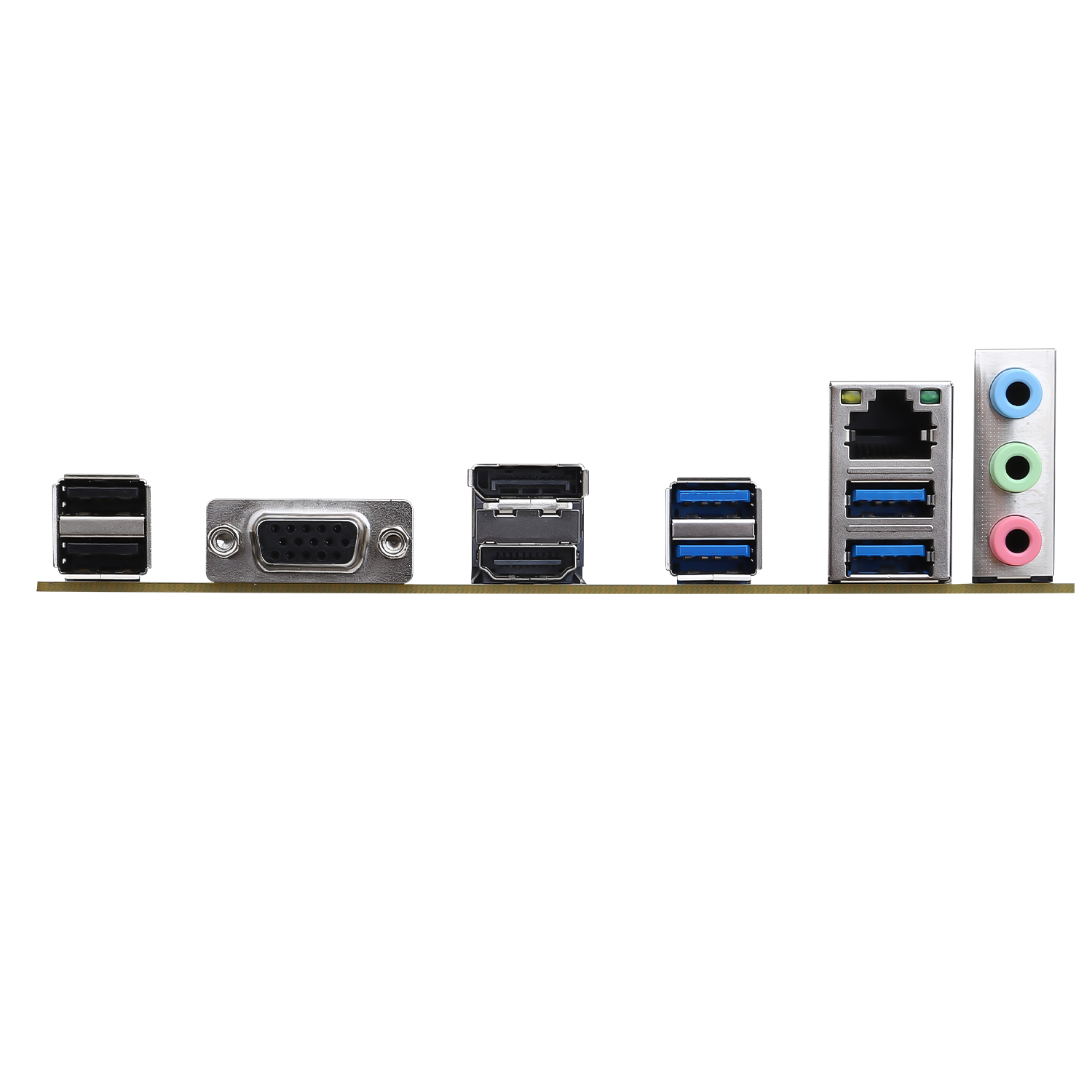

Rear panel interface
2xUSB3.0 480Mbps，4xUSB3.2Gen1 5Gb/s，1xDP 1.4，1xHDMI 2.1，1xVGA，1x Network card interface，1x3-hole audio interface
Front panel interface
1 x USB3.2 PIN，1 x USB2.0 PIN，1 x Front audio PIN，1 x COM PIN，1 xPower on/restart pin，1 xError detection indicator
Support system
Windows10 Windows11（Support incoming call startup/timed startup/network wake-up IPV4/IPV6 diskless startup/
S3 sleep/CFAN temperature control）
BIOS
AMI UEFI BIOS
Packing list
1 x Motherboard，1x SATA data cable
-
B760M-D4-BPRO Motherborad Drive Download
B760M-D4-BPRO Gaming Light Control Drive Download
B760M-D4-BPRO LAN Drive Download
B760M-D4-BPRO ME Drive Download
-
User Manual
Installation video
B760M-D4-B PRO
· Support LGA1700 platform processors, support Intel 12/13/14 processors
· 2x DDR4 memory slots, up to 64GB
· 4xSATA 3.0 6Gbps hard drive ports
· 1xPCI Express 4.0 x16 slot, 1x PCI Express 3.0 x4 slot
· 2 x M.2 2280 NVME PCIE X4 4.0, 1 x M.2 WIFI (PCIe&CNVi)
· 2xUSB 2.0 ports, 4x USB 3.2 Gen1 ports
· 1xDP 1.4 port, 1 xHDMI 2.1 port, 1x VGA port
