Model

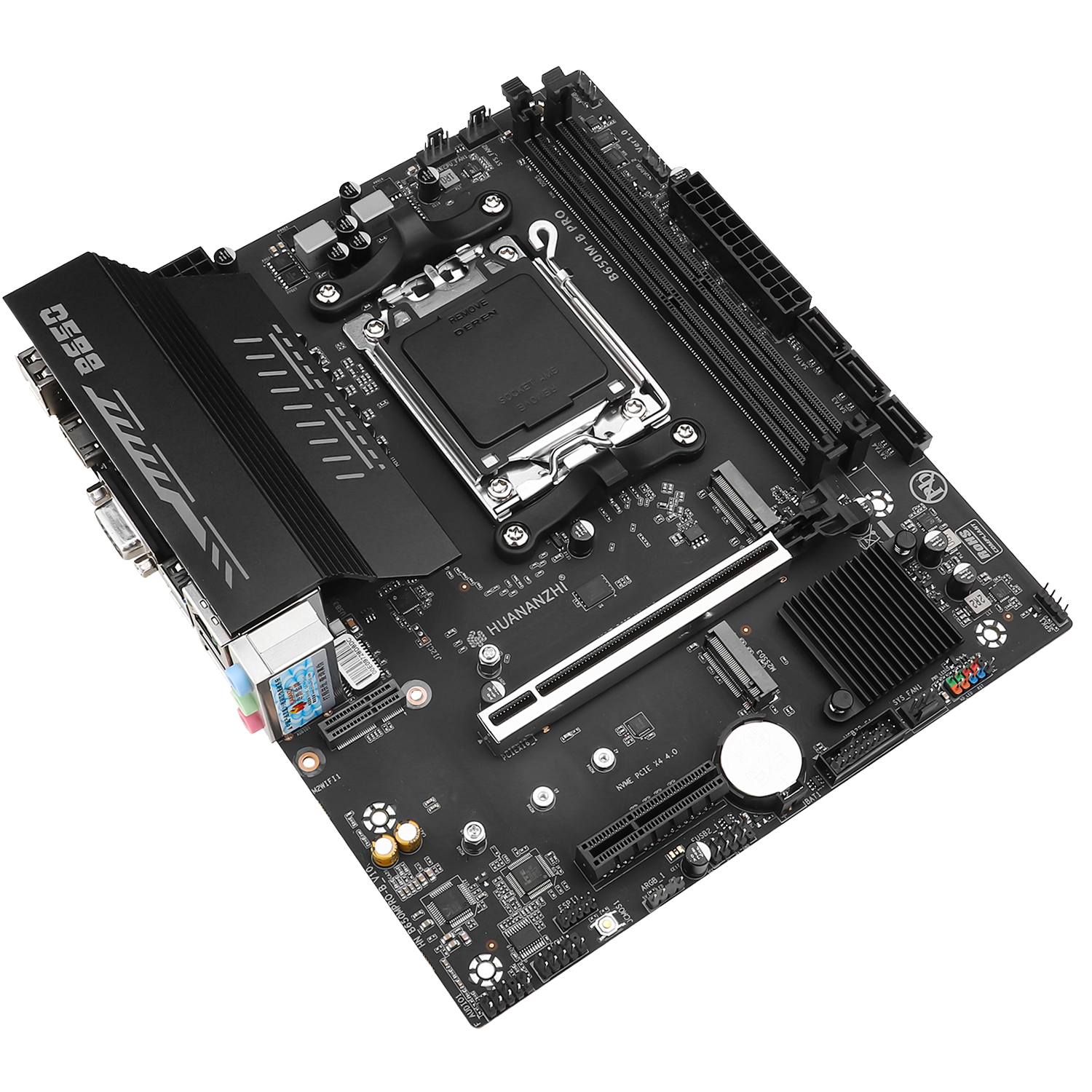

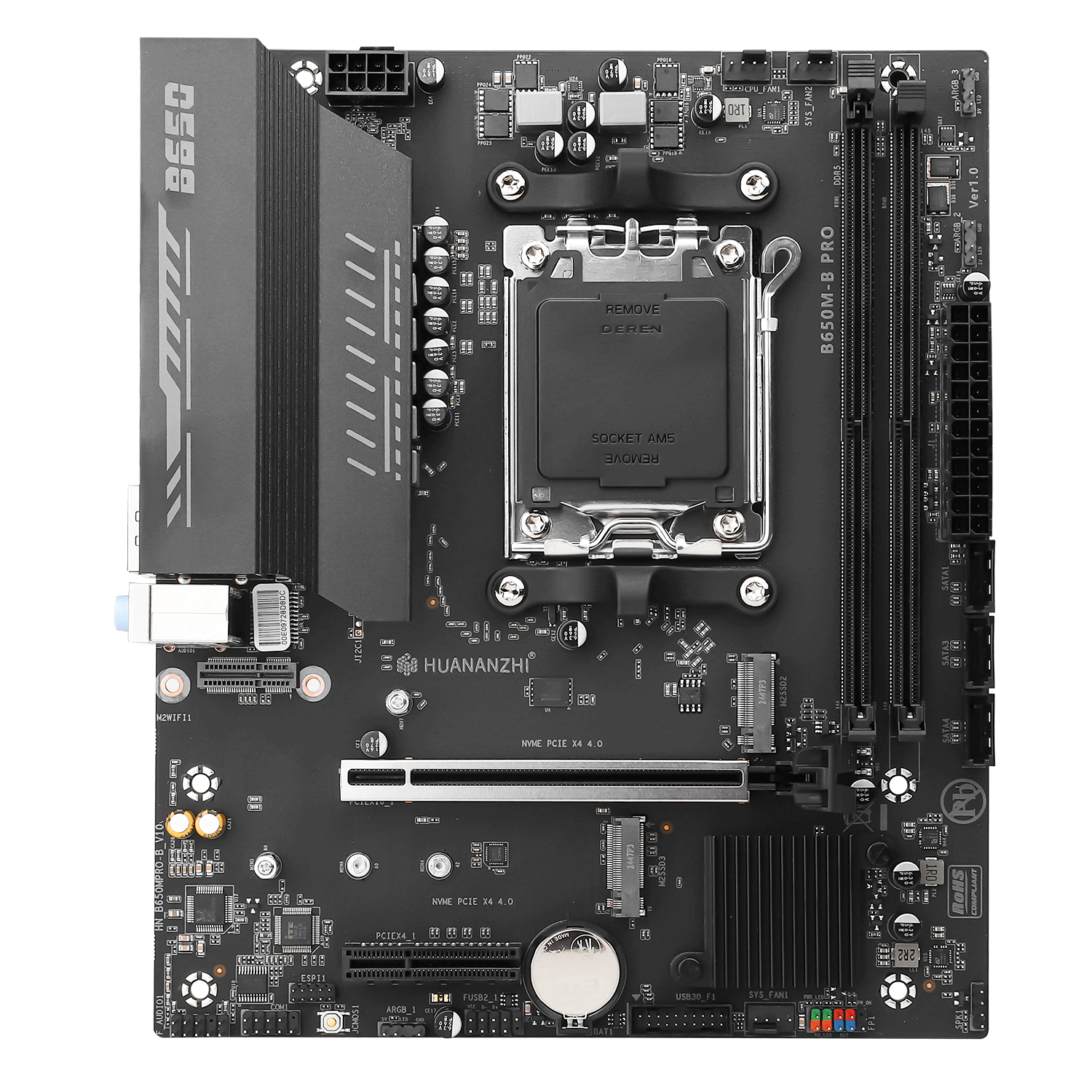

HUANANZHI B650M-B PRO Motherboard

Main chipset

AMD B650

CPU Socket

Support AM5，Support AMD Ryzen7000-9000

Memory slot

2 x DDR5 memory slot

Memory standard

Support Dual channels DIMM DDR5 4800/5200/5600/6000/6400/6800MHz ，Max support 96GB，support EXPO overclocking

Storage interface

3xSATA3.0 6Gbps interfaces（RAID 0/1）

Expansion Slots

1xPCI Express4.0 x16，1xPCI Express4.0 x4

Expansion interface

2xM.2 2280 (NVME PCIE X4 4.0），1 x Vertical M.2 WIFI，support PCIE protocol (at IO port)

Soud Track

Realtek High Fidelity Audio ALC897

Network Card

Realtek Gigabit network card RTL8111H

Power interface

24PIN+8PIN

FAN PIN

1xCPU_FAN PIN（Temperature adjustable），1xSYS_FAN1 PIN（Temperature adjustable），1xSYS_FAN2 PIN

power supply

8-phase power supply，1 up, 2 down MOS strengthens the power supply layout

PCB layers

4-layer PCB

Dimension

225*185MM M-ATX

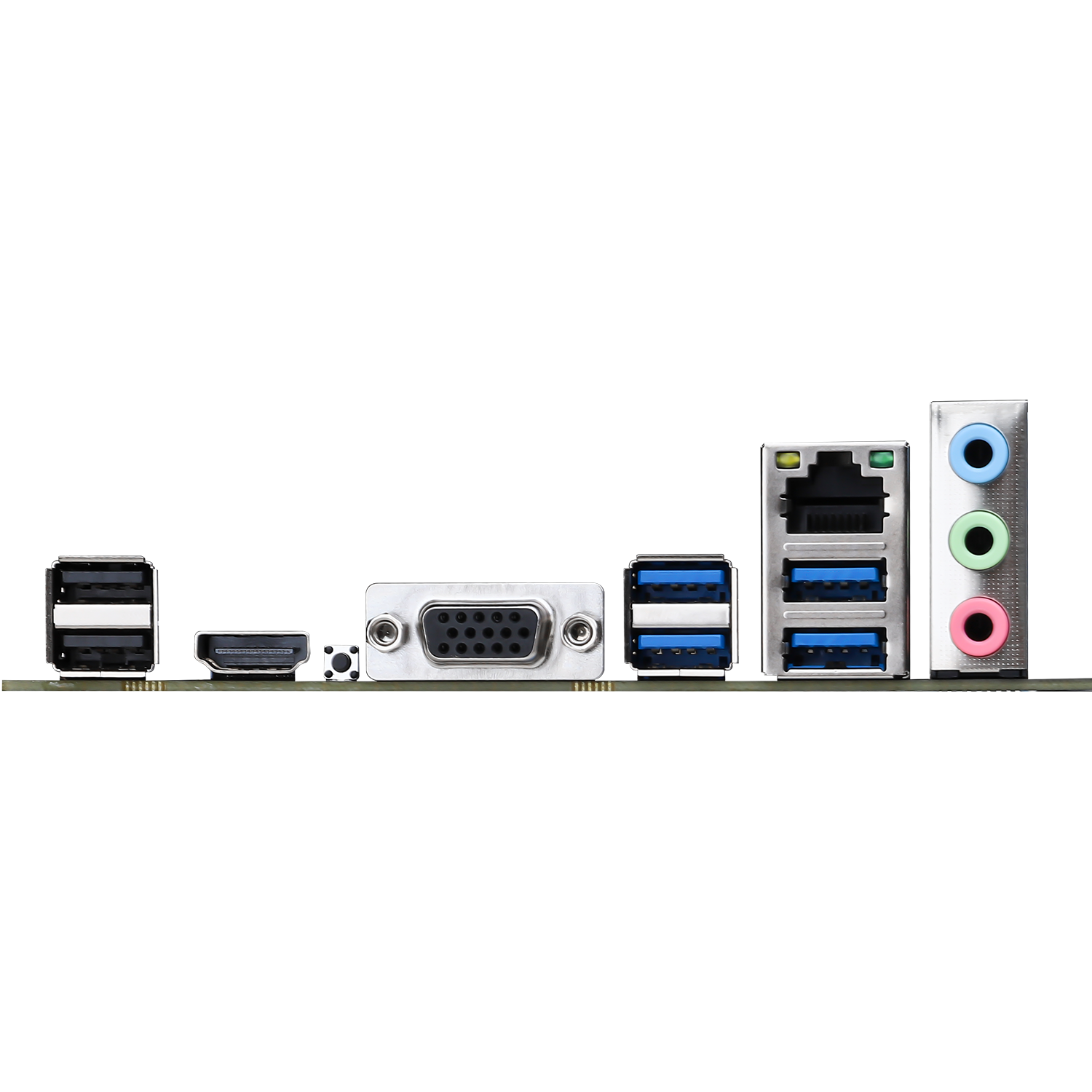

Rear panel interface

4xUSB3.2 Gen1，2xUSB2.0，1xHDMI，1xVGA，1x Network card interface，1x3-hole audio interface，1xVertical M.2 WIFI interface

Front panel interface

1 xUSB3.2 Gen1 PIN，1 x USB2.0 PIN，1 x Front audio PIN，1 x COM PIN，1 xPower on/restart pin，1x SPK buzzer pins

3x5V ARGB pin/Songhan master IC control

Support system

Windows10 Windows11（Support incoming call boot/scheduled boot/wake-on-LAN IPV4/IPV6 diskless boot

/CFAN temperature controlled）

BIOS

AMI UEFI Graphics BIOS

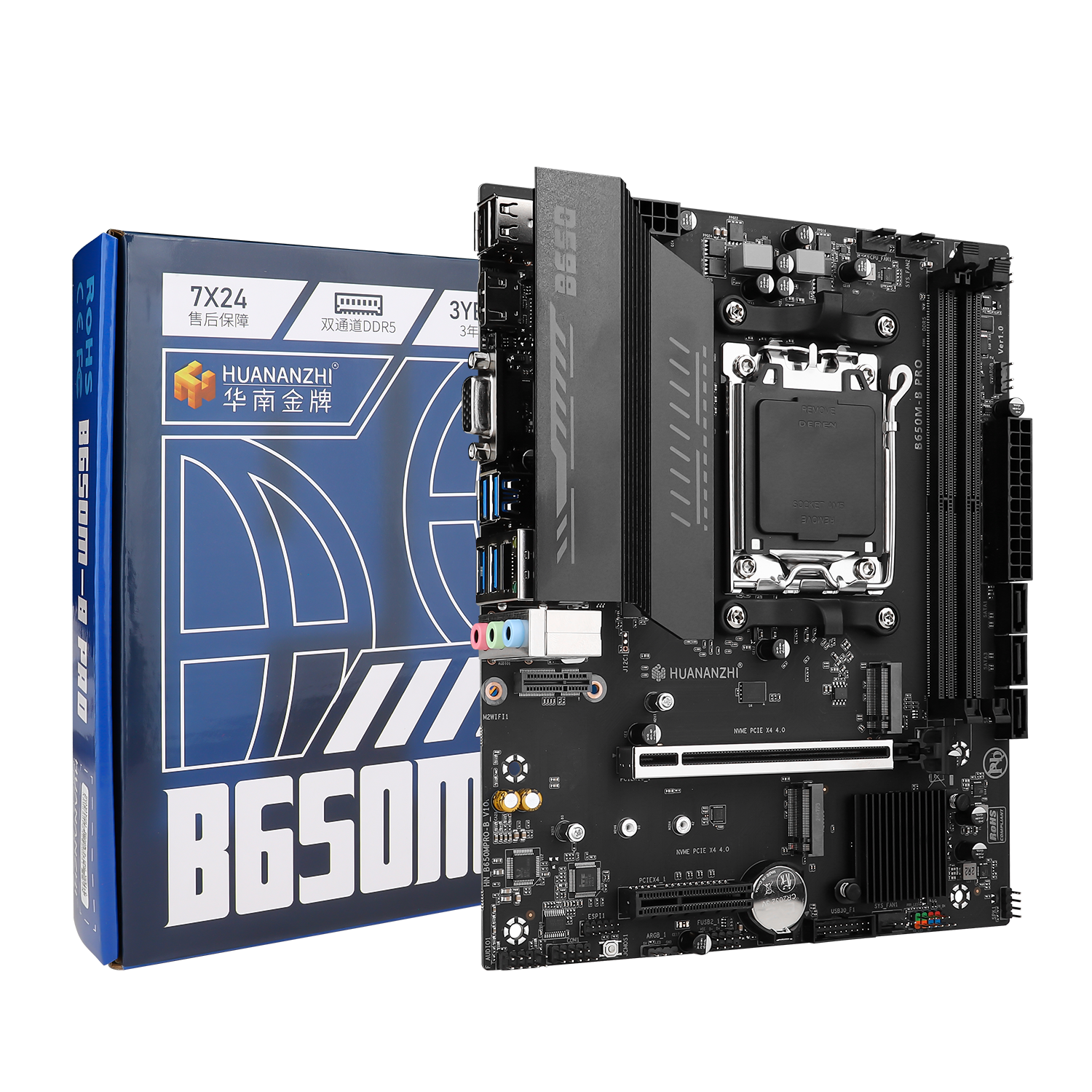

Packing list

1 x Motherboard，1x SATA data cable，1xI/O Baffles
