Model

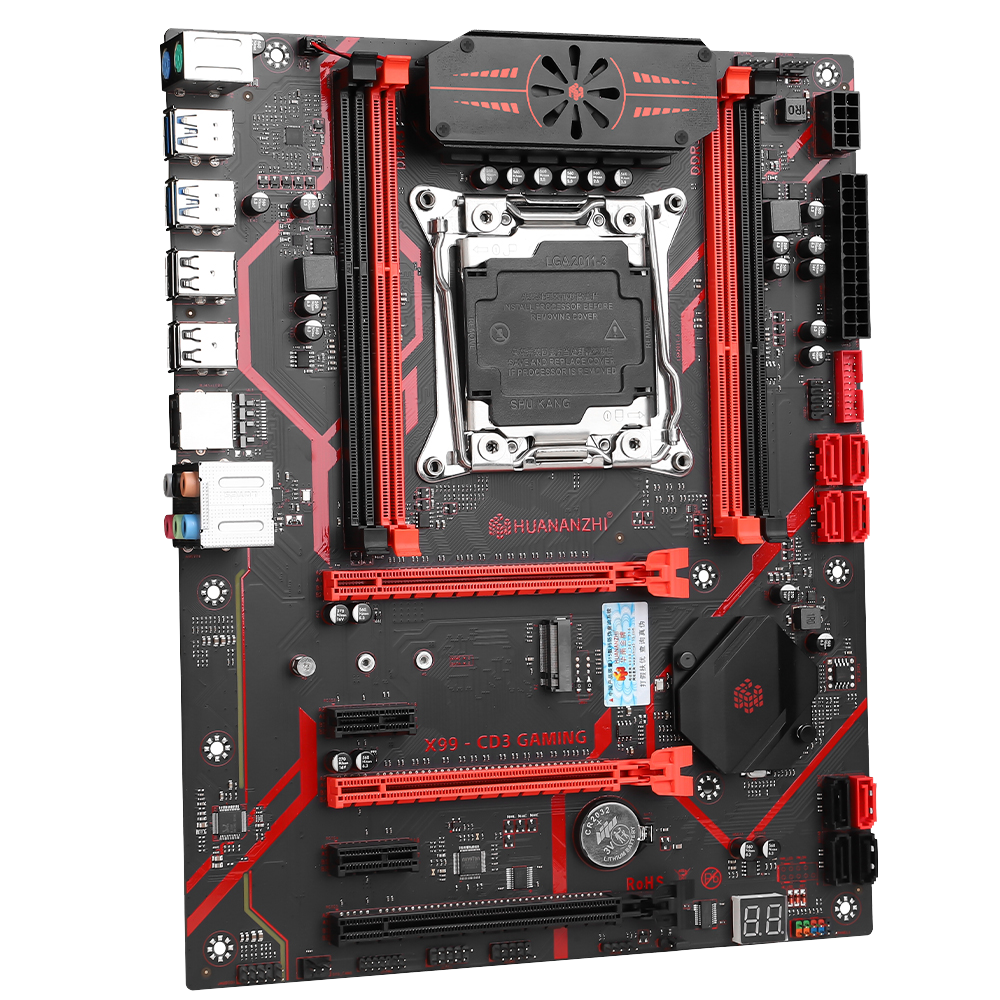

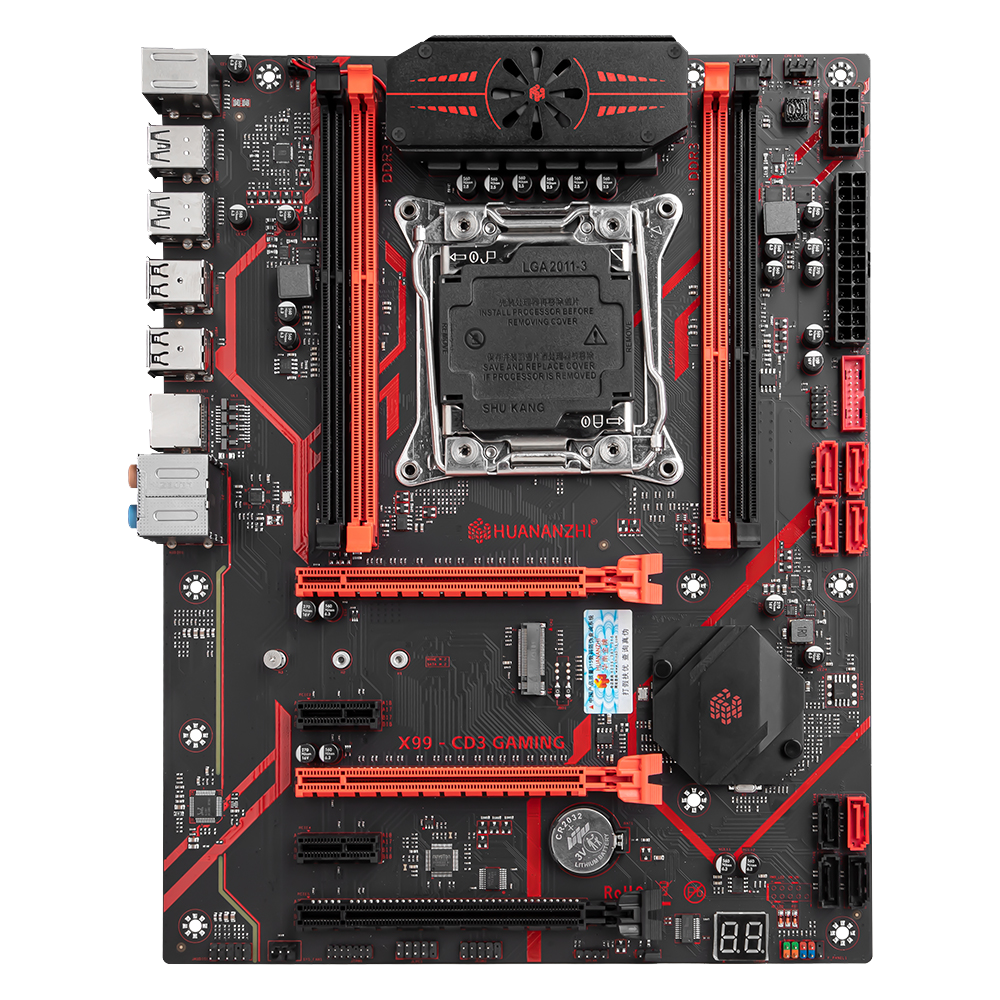

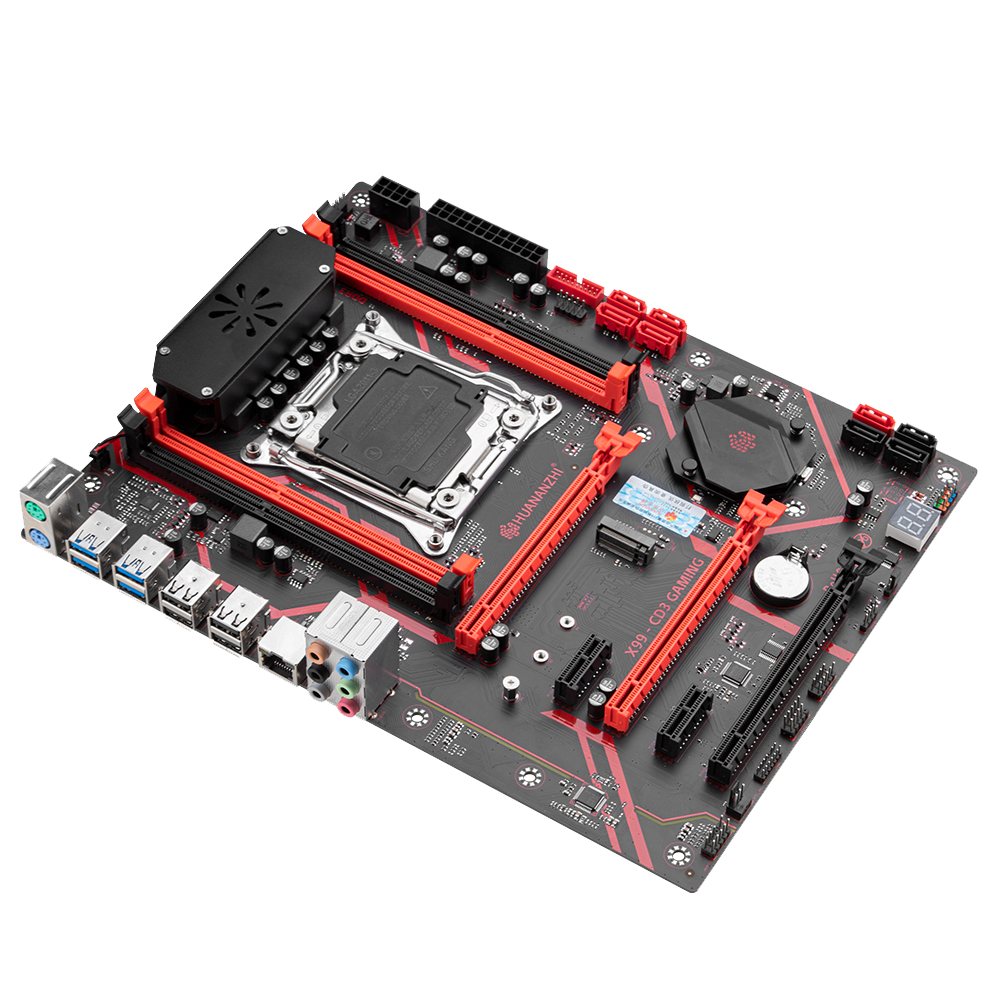

 X99-CD3 GAMING

Main chipset

Intel C612

CPU Socket

Support Intel LGA2011-3

Memory slot

4 x DDR3 memory slot

Memory standard

Support Dual channels DIMM DDR3 1866/1600/1333/1066MHz，Max support 128GB

Storage interface

5xSATA3.0 6Gbps interfaces，3xSSATA3.0 6Gbps

Expansion Slots

2x PCI Express3.0 x16，3xPCI Express2.0 x1（One of the X1s is a full-length X16 slot）

Expansion interface

1x M.2 2280 NVME PCIE X4 3.0

Soud Track

Realtek High Fidelity Audio

Network Card

Realtek Gigabit network card

Power interface

24PIN+8PIN

FAN PIN

1xCPU_FAN PIN，2xSYS_FAN PIN

power supply

6-phase power supply

PCB layers

4-layer PCB

Dimension

280*220MM ATX

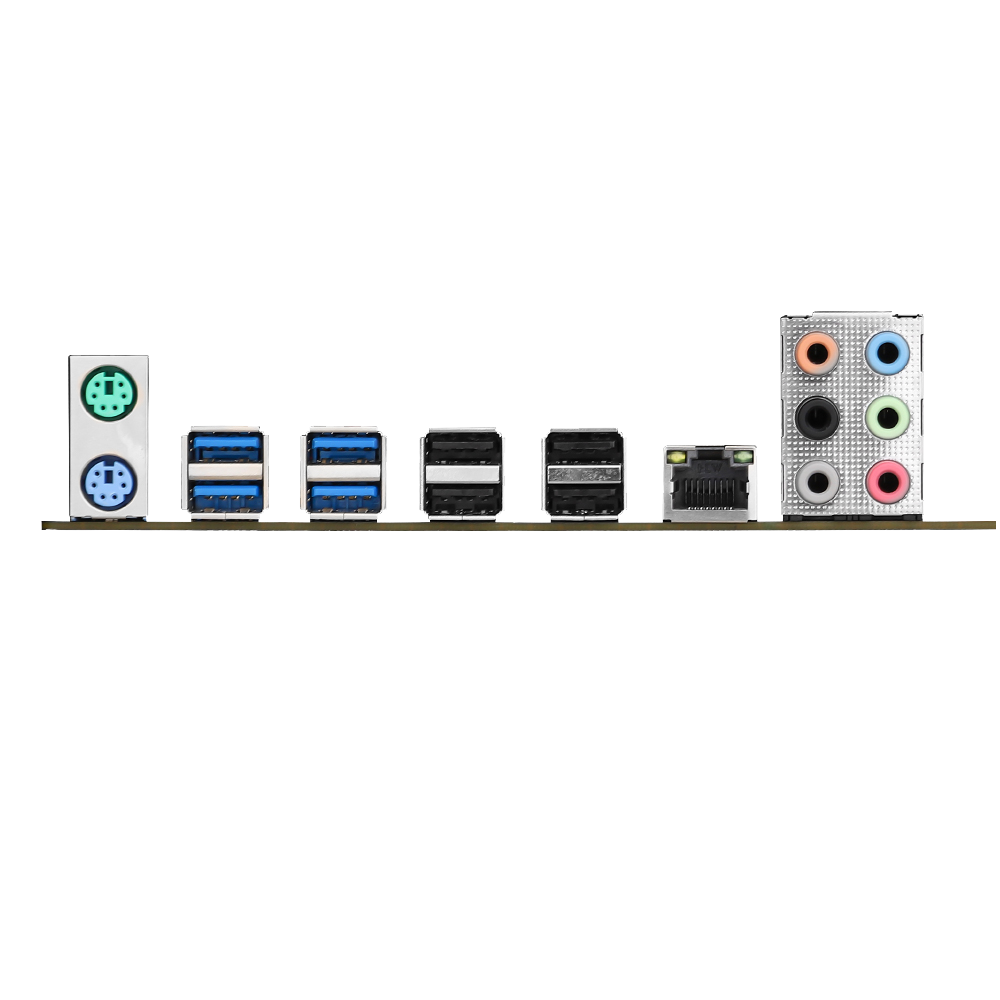

Rear panel interface

4xUSB3.2 Gen1，4xUSB2.0，1x Network card interface，1x6-hole audio interface

Front panel interface

1 x USB3.2 PIN，1x USB2.0 PIN，1x USB3.2 Gen1 pin , 1x USB2.0 pin , 1x audio pin , 1x COM pin , 1x CMOS jumper cap, 1x JLPC pin ,

1x SPK buzzer pin , 1 set of power-on/reset pin , 1 set of TPM pin , 1x DEBUG diagnostic card supporting the system.

Support system

Windows7 Windows10 Windows11

BIOS

AMI UEFI BIOS

Packing list

1 x Motherboard，1x SATA data cable
