Model

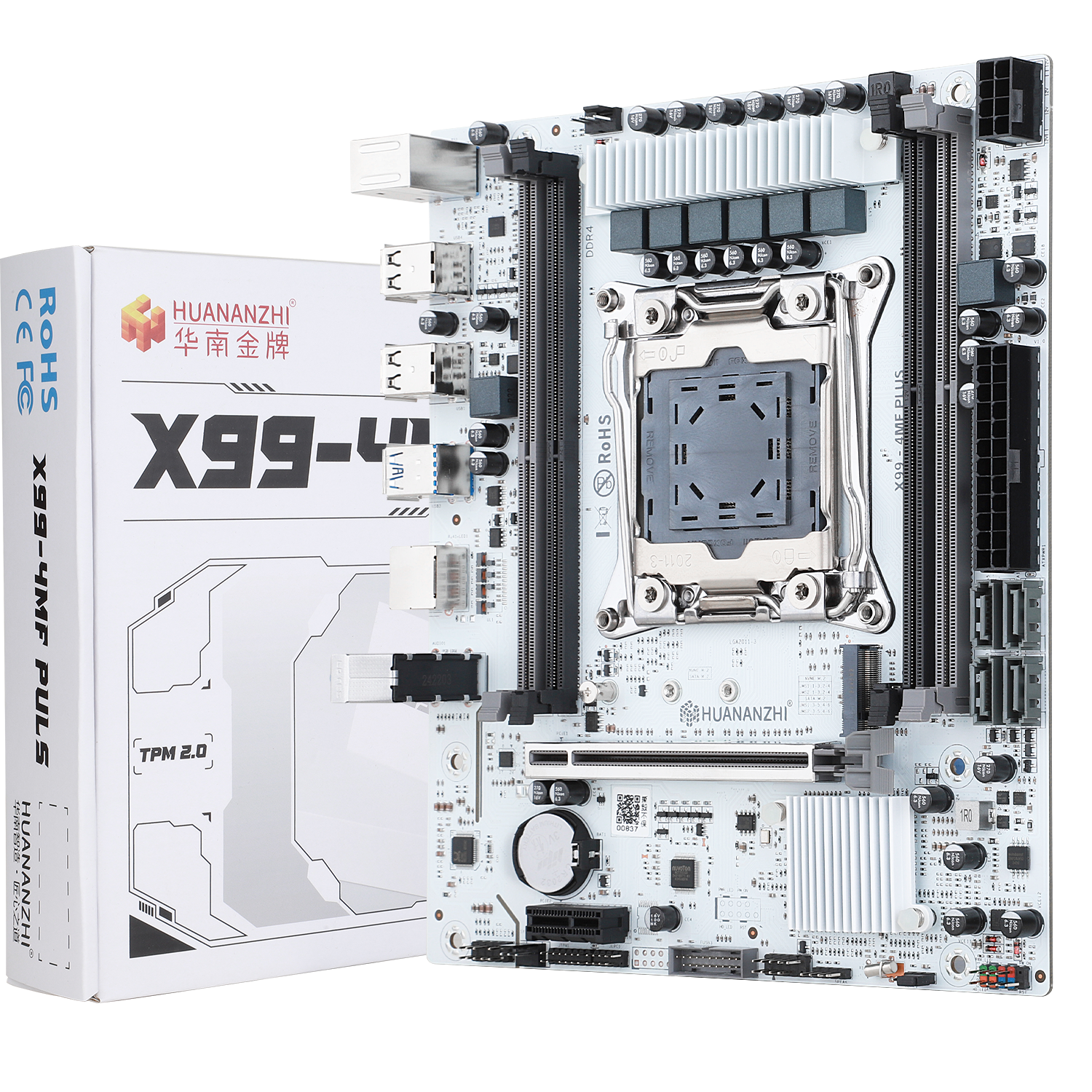

HUANANZHI X99-4MF PLUS Motherboard

Main chipset

IntelC612

CPU Socket

Support Intel LGA2011-3

Memory slot

4 x DDR4 memory slot

Memory standard

Support Dual channels DIMM DDR4 2400/2133/1866MHz，Max support 128GB

Storage interface

4xSATA3.0 6Gbps  interfaces

Expansion Slots

1xPCI Express3.0 x16，1xPCI Express2.0 x1

Expansion interface

1xM.2 2280 (NVME PCIE X4 3.0&NGFF SATA3.0)（Need to switch protocols through hat adjustment, default NVME protocol mode）

Soud Track

Realtek High Fidelity Audio

Network Card

Realtek Gigabit network card

Power interface

24PIN+8PIN

FAN PIN

1xCPU_FAN PIN，1xSYS_FAN PIN

power supply

6-phase power supply

PCB layers

4-layer PCB

Dimension

215*190 M-ATX

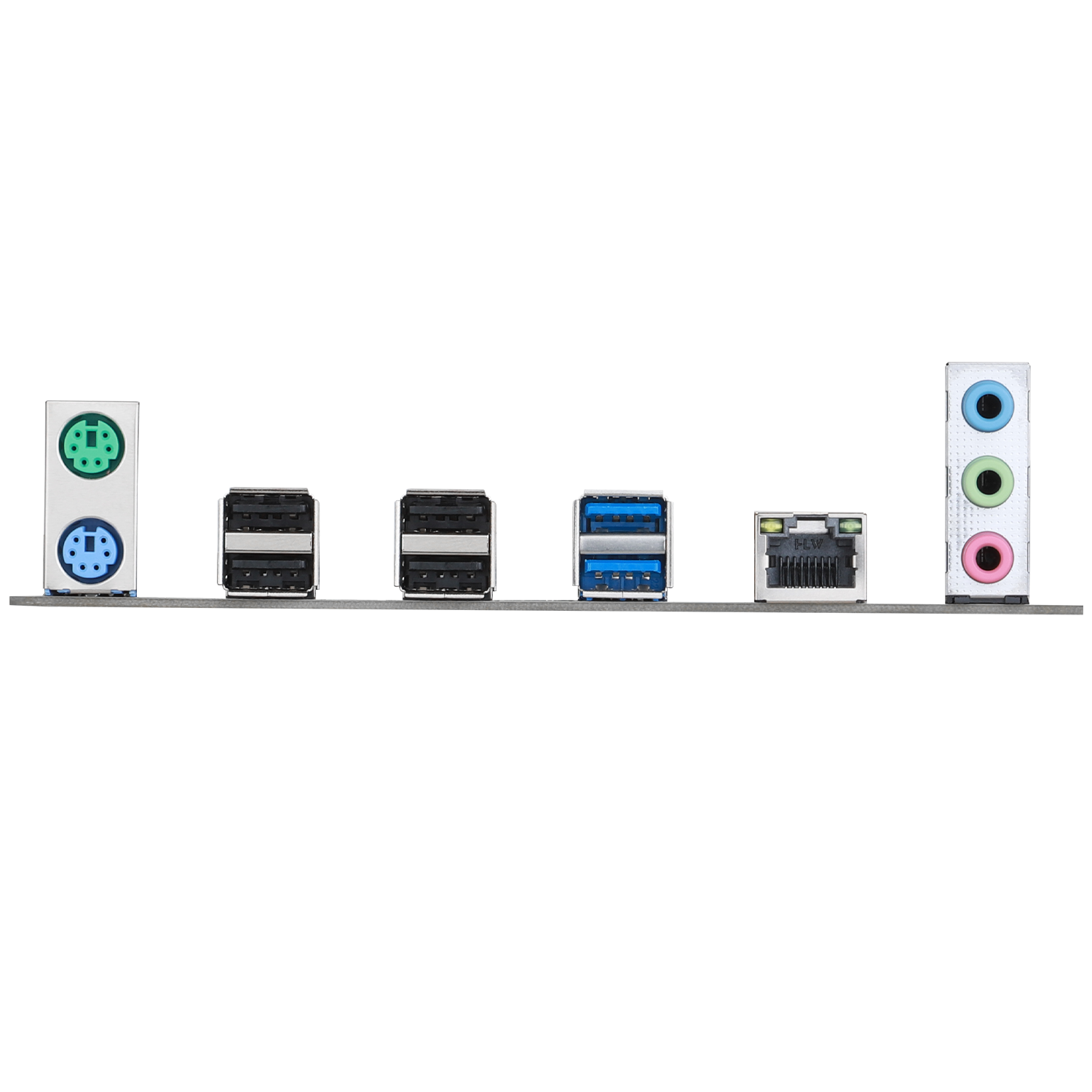

Rear panel interface

1xPS/2，2xUSB3.0，4xUSB2.0，1x Network card interface，1x3-hole audio interface

Front panel interface

1x USB3.0 PIN，1x USB2.0 PIN，1 x Front audio PIN，1 x JBAT PIN，1 xPower on/restart pin

1xJLPC PIN

Support system

Windows7 Windows10 Windows11

BIOS

AMI UEFI BIOS

Packing list

1 x Motherboard，1x SATA data cable
