Model

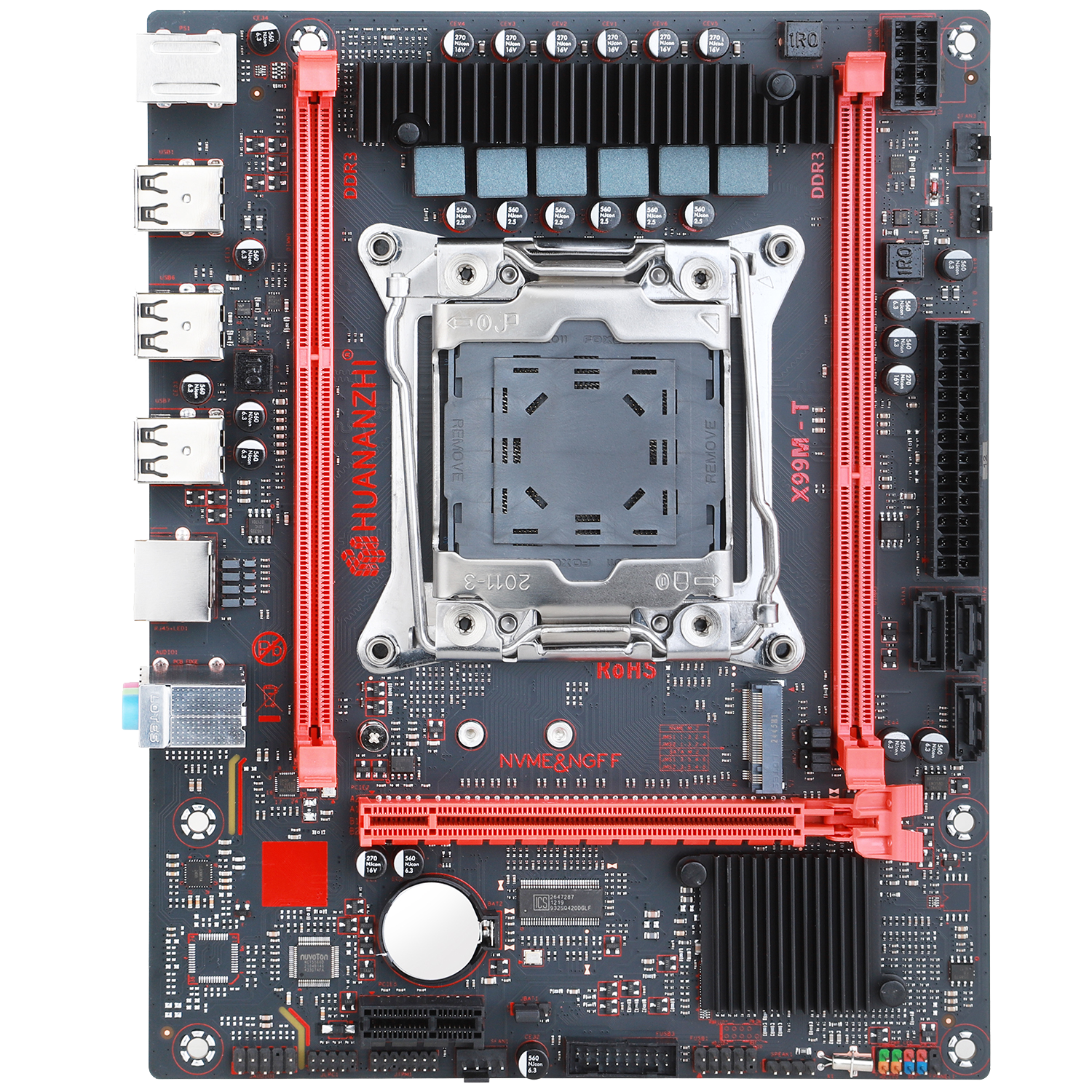

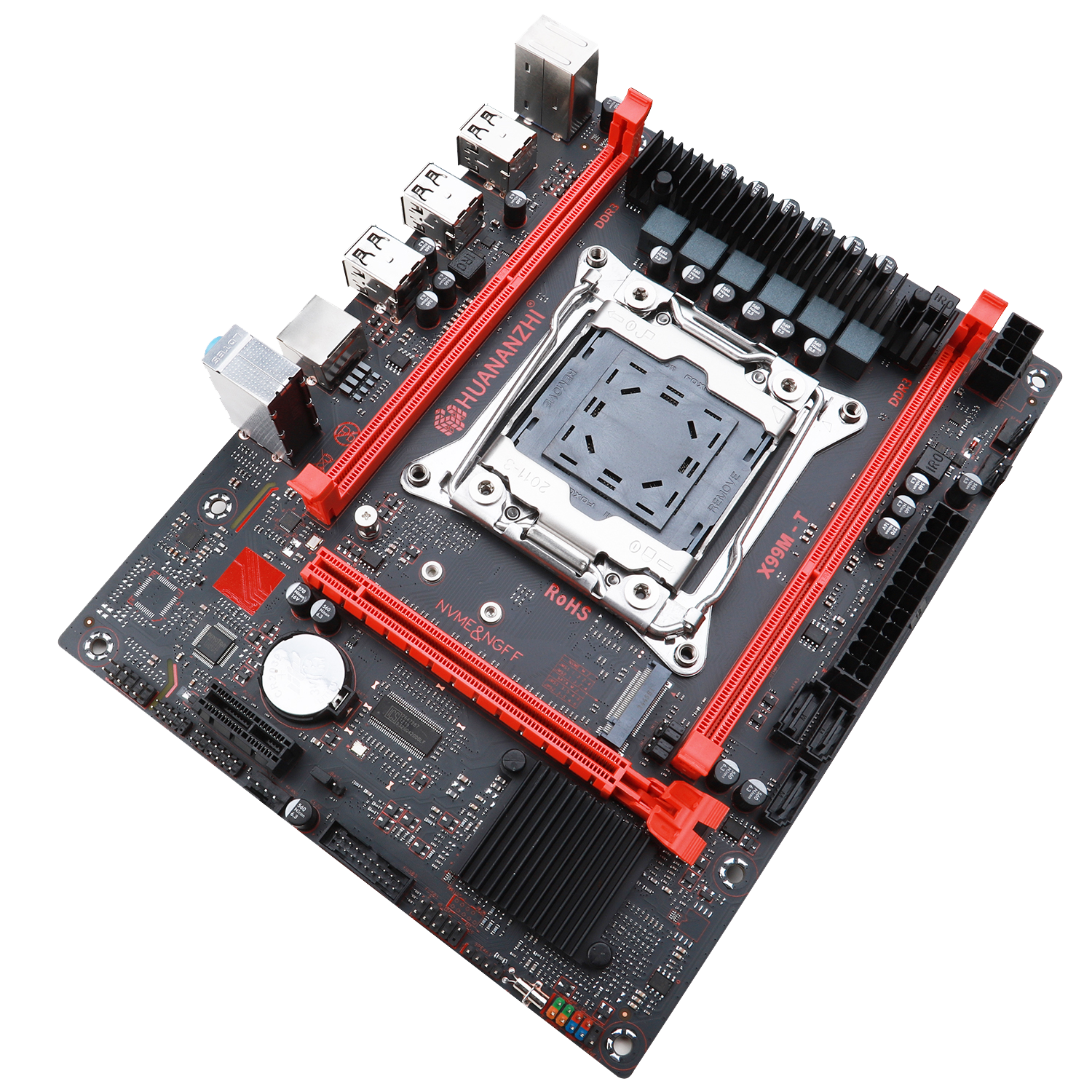

HUANANZHI X99M-T Motherboard

Main chipset

Intel H55

CPU Socket

Support Intel LGA2011-3

Memory slot

2 x DDR3 memory slot

Memory standard

Support Dual channels DDR3 1866/1600/1333MHz，Max support 64GB

Storage interface

3xSATA2.0 3Gbps interfaces

Expansion Slots

1xPCI Express3.0 x16，1xPCI Express2.0 x1

Expansion interface

1xM.2 2280（NVME PCIEX4 3.0&NGFF SATA2.0）（Need to switch protocols through hat adjustment, default NVME protocol mode）

Soud Track

Realtek High Fidelity Audio

Network Card

Realtek Gigabit network card

Power interface

24PIN+8PIN

FAN PIN

1xCPU_FAN PIN，2xSYS_FAN PIN

power supply

6-phase power supply

PCB layers

4-layer PCB

Dimension

215*170MM M-ATX

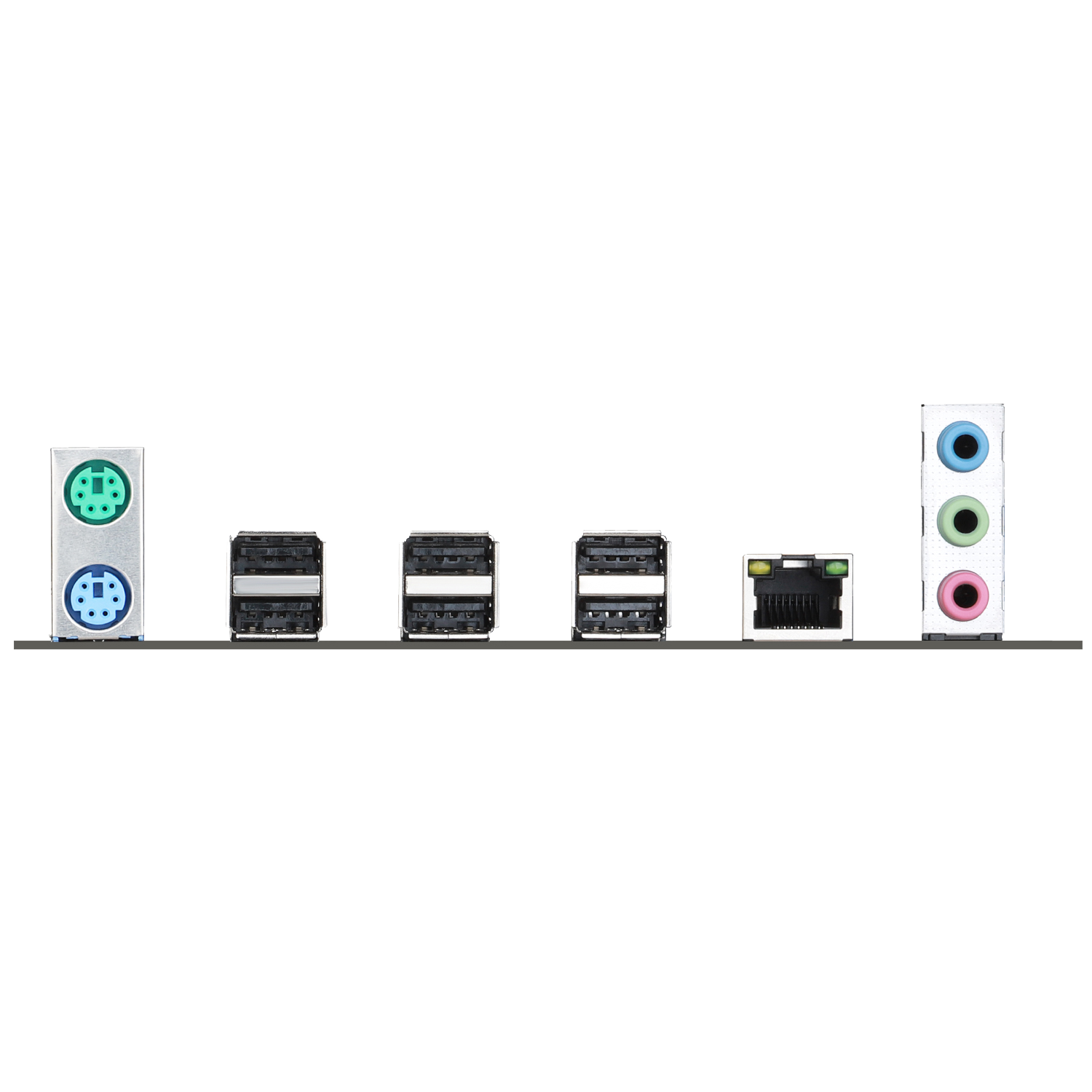

Rear panel interface

1xPS/2，6xUSB2.0，1x Network card interface，1x3-hole audio interface

Front panel interface

1x USB2.0 480Mbps PIN，1x USB3.0 480Mbps PIN，1 x Front audio PIN，1 xCOMS，1 xPower on/restart pin

1x Debug pin，1 xTPM14-1PIN

Support system

Windows10 Windows11

BIOS

AMI UEFI BIOS

Packing list

1 x Motherboard，1x SATA data cable
