Model

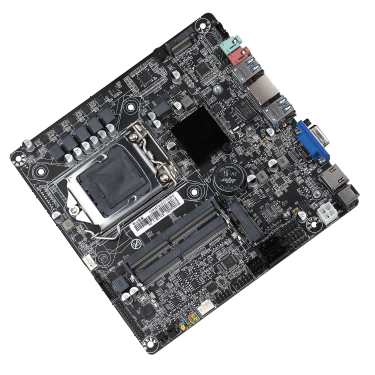

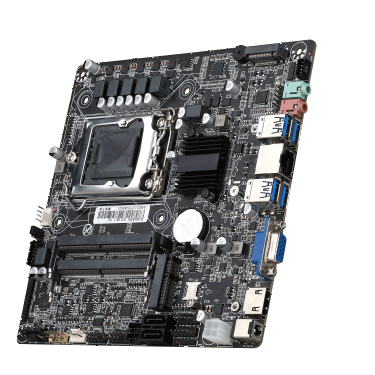

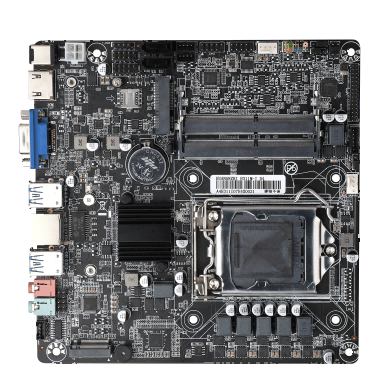

HUANANZHI H311-D4 Motherboard
Main chipset
Intel 110
CPU Socket
Support Intel LGA1151，support intel6/7/8/9 i3/i5/i7Core CPU
Memory slot
2 x DDR4 memory slot
Memory standard
Support Dual channels DDR4 2666/2400/2133MHz，Max support 32GB
Storage interface
4xSATA3.0 3.0 6Gbps interfaces
Expansion Slots
1*PCI Express 3.0 x16，1*PCI Express 2.0 x1
Expansion interface
1xM.2 2280 NVME PCIE X4 2.0 20Gbps
Soud Track
Realtek High Fidelity Audio
Network Card
Realtek Gigabit network card
Power interface
24PIN+8PIN
FAN PIN
1xCPU_FAN PIN，1xSYS_FAN PIN
power supply
6-phase power supply
PCB layers
4-layer PCB
Dimension
220*180MM M-ATX

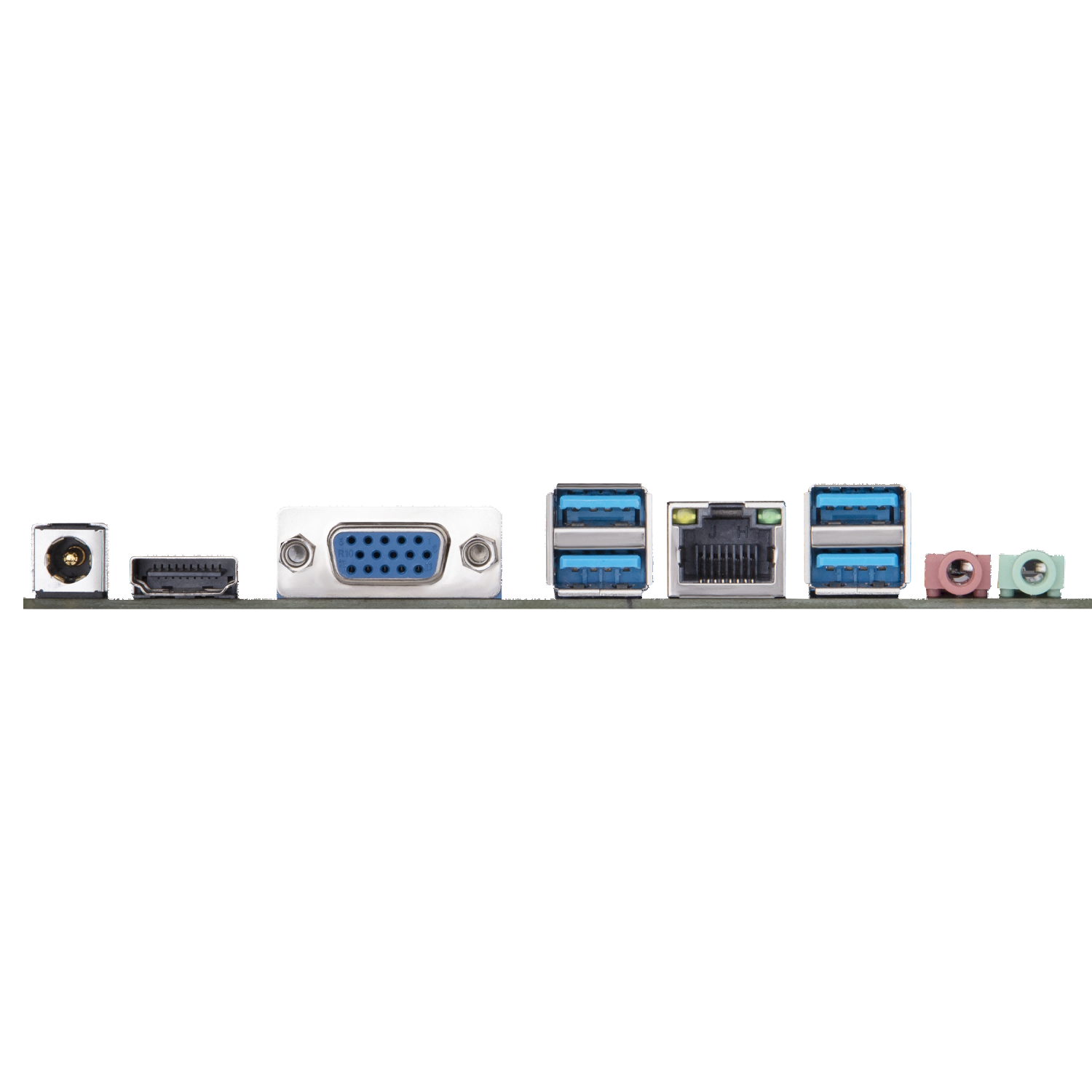

Rear panel interface
4xUSB2.0 480Mbps，2xUSB3.0，1xHDMI，1xVGA，1x Network card interface，1x3-hole audio interface，1xDC，1xPS/2
Front panel interface
2.5 x USB2.0 PIN，1 x Front audio PIN，1 xLVDS，1 xPower on/restart pin，1x Debug pin，1 xCMOSPIN
Support system
Windows7 Windows10 Windows11 （Support incoming call startup/scheduled startup/network card startup/network wake-up）
BIOS
AMI UEFI BIOS
Packing list
1 x Motherboard，1x SATA data cable
-
User Manual
Installation video
HUANANZHI H311-D4 Motherboard
·Supports 6/7/8/9 generation i3/i5/i7LGA1151 platform processors
·2 DDR4 memory slots, supporting up to 32GB
·4 SATA 3.0 6Gbps hard drive interfaces
·1 PCI Express3.0 x16 slot 1 PCI Express2.0 x1 slot
·1 M.2 2280 NVME PCIE X4 2.0 20Gbps
·4 USB 2.0 480Mbps interfaces and 2 USB 3.0 interfaces
·1 VGA display interface, 1 DVI display interface, and 1 HDMI display interface
