Graphics card model

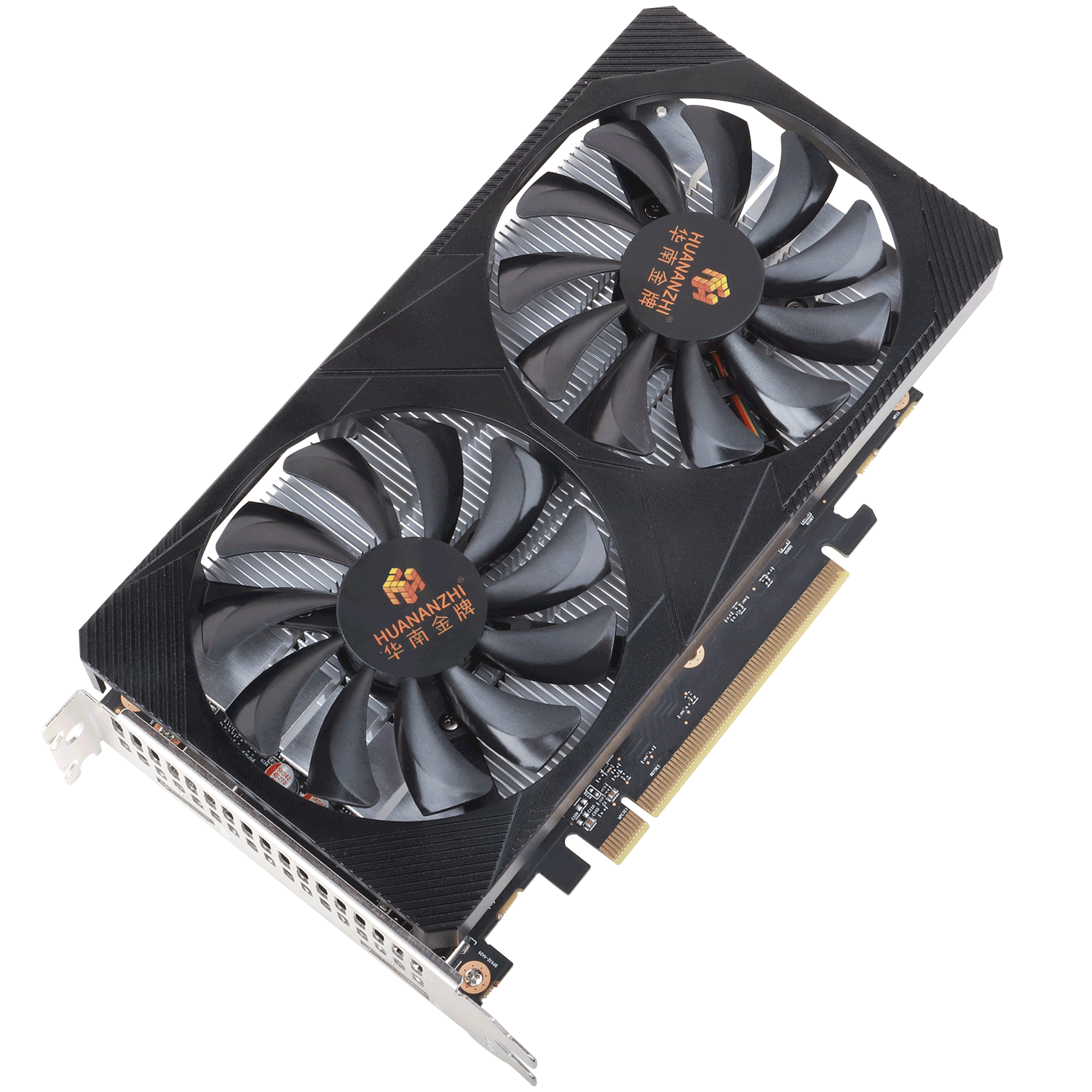

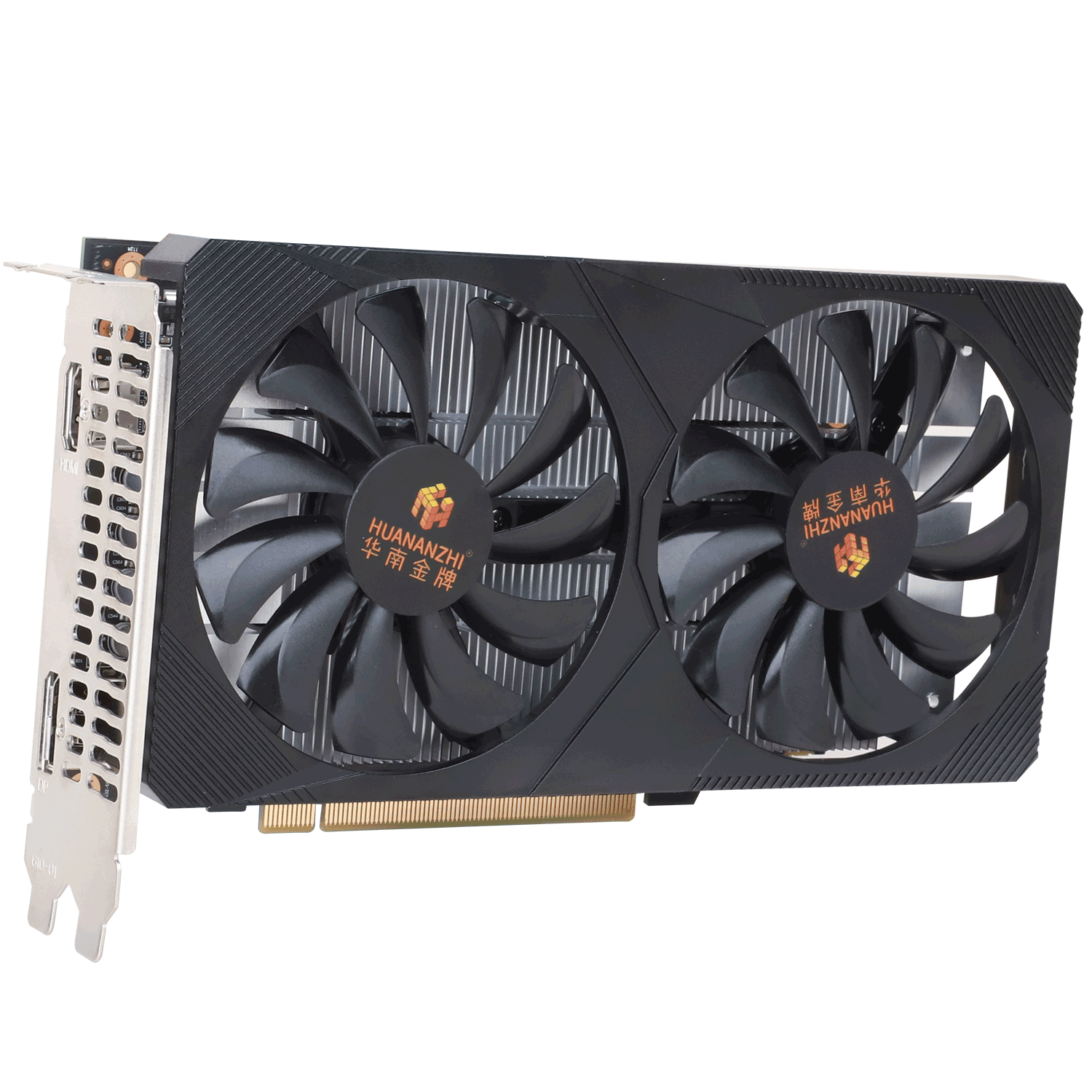

HUANANZHI RX6500XT 4G GDDR6 Graphics card
Model Number
RX6500XT 4G
Chip manufacturers
AMD
Graphics chip
AMD Radeon RX6500XT
Display chip series
AMD Radeon RX6000 series
Sandy Bridge
Navi24
Core Frequency
2610MHZ
CUDA core
1024
Video Memory Specifications
/
Memory frequency
18000MHz
memory type
GDDR6
Memory capacity
4G
Bit
64BIT
Maximum Resolution
7680*4320
interface type
PCI Express 4.0 x4

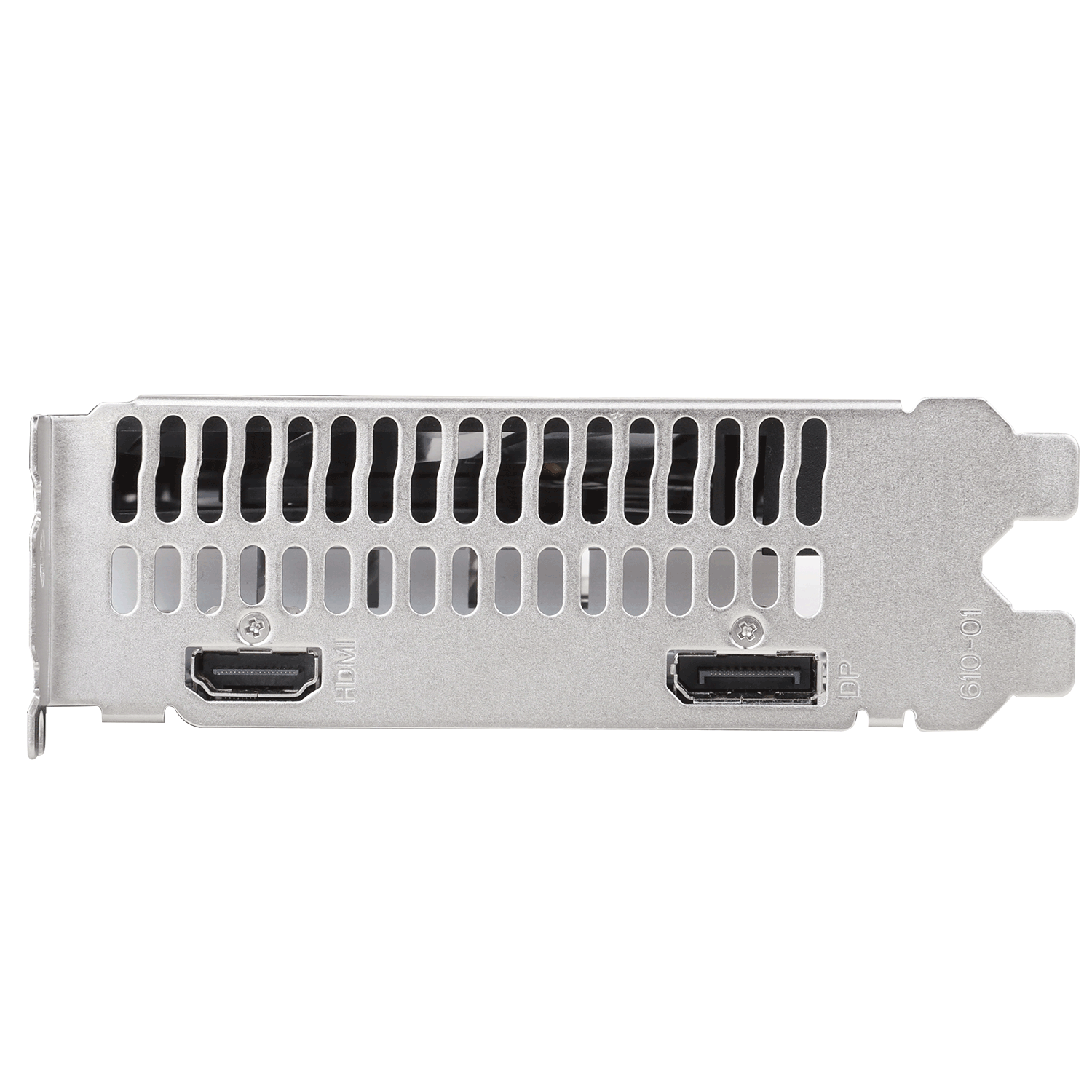

I/O interface
1*HDMI，1*DP
power interface
6PIN
Graphics card type
Mainstream level
Graphics card heat dissipation
Dual fan air-cooled heat dissipation
3D API
DirectX 12.1 OpenGL4.6
Support HDCP
YES
Product size
205*113*35MM
Max power consumption
107w
Suggested power supply
400W more than
-
User Manual
Installation video
-
RX6500XT 4G GDDR6 Graphics card
Graphics card model: RX6500XT 4G
Stream processing unit: 1024
Video Memory Specification: 4GB/64BIT GDDR6 18000MHz
Output interface: 1 * HDMI 1 * DisplayPort
Cooling method: Dual fan air-cooled cooling
Supported technologies: DirectX 12.1, OpenGL 4.6
Supports 8K display output with maximum digital resolution of 7680 * 4320
Buy
Stream processing unit: 1024
Video Memory Specification: 4GB/64BIT GDDR6 18000MHz
Output interface: 1 * HDMI 1 * DisplayPort
Cooling method: Dual fan air-cooled cooling
Supported technologies: DirectX 12.1, OpenGL 4.6
Supports 8K display output with maximum digital resolution of 7680 * 4320
