Graphics card model

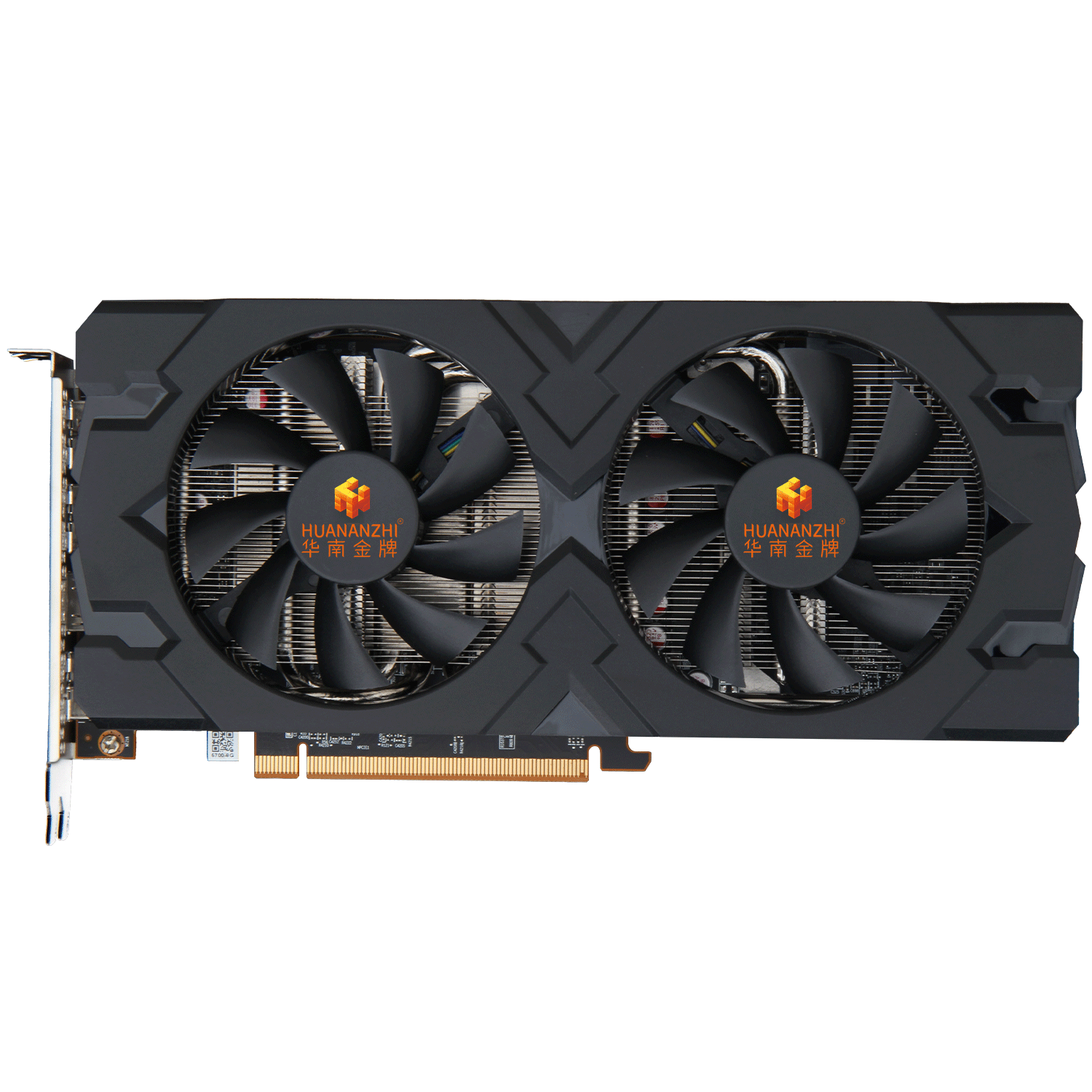

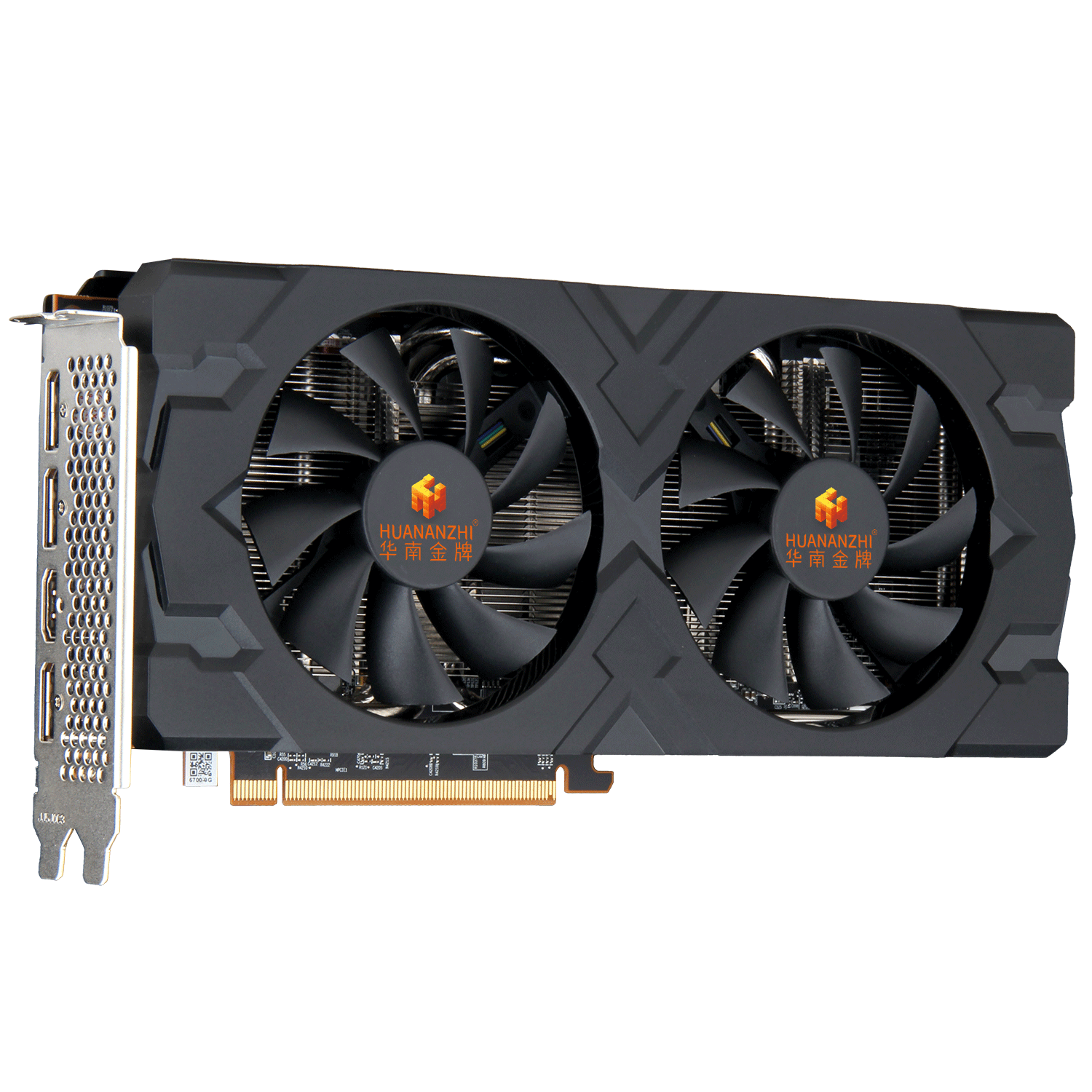

HUANANZHI RX5700 8G Graphics card
Model Number
RX5700 8G
Chip manufacturers
AMD
Graphics chip
AMD Radeon RX5700
Display chip series
AMD Radeon RX5000 series
Sandy Bridge
Navi10
Core Frequency
1625MHZ
CUDA core
2304
Video Memory Specifications
/
Memory frequency
14000MHz
memory type
GDDR6
Memory capacity
8G
Bit
256BIT
Maximum Resolution
7680*4320
interface type
PCI Express 4.0 x16
I/O interface
1*HDMI，3*DP
power interface
8+6 pin
Graphics card type
Enthusiast
Graphics card heat dissipation
Three heat pipes, dual fans, air-cooled heat dissipation
3D API
DirectX 12.1 OpenGL4.6
Support HDCP
YES
Product size
250*120*45MM
Max power consumption
180W
Suggested power supply
400W more than
-
User Manual
Installation video
RX5700 8G Graphics card
· Graphics card model: RX5700 8G
· CUDA CORE: 2304
· Video Memory Specification: 8GB/256bit GDDR6

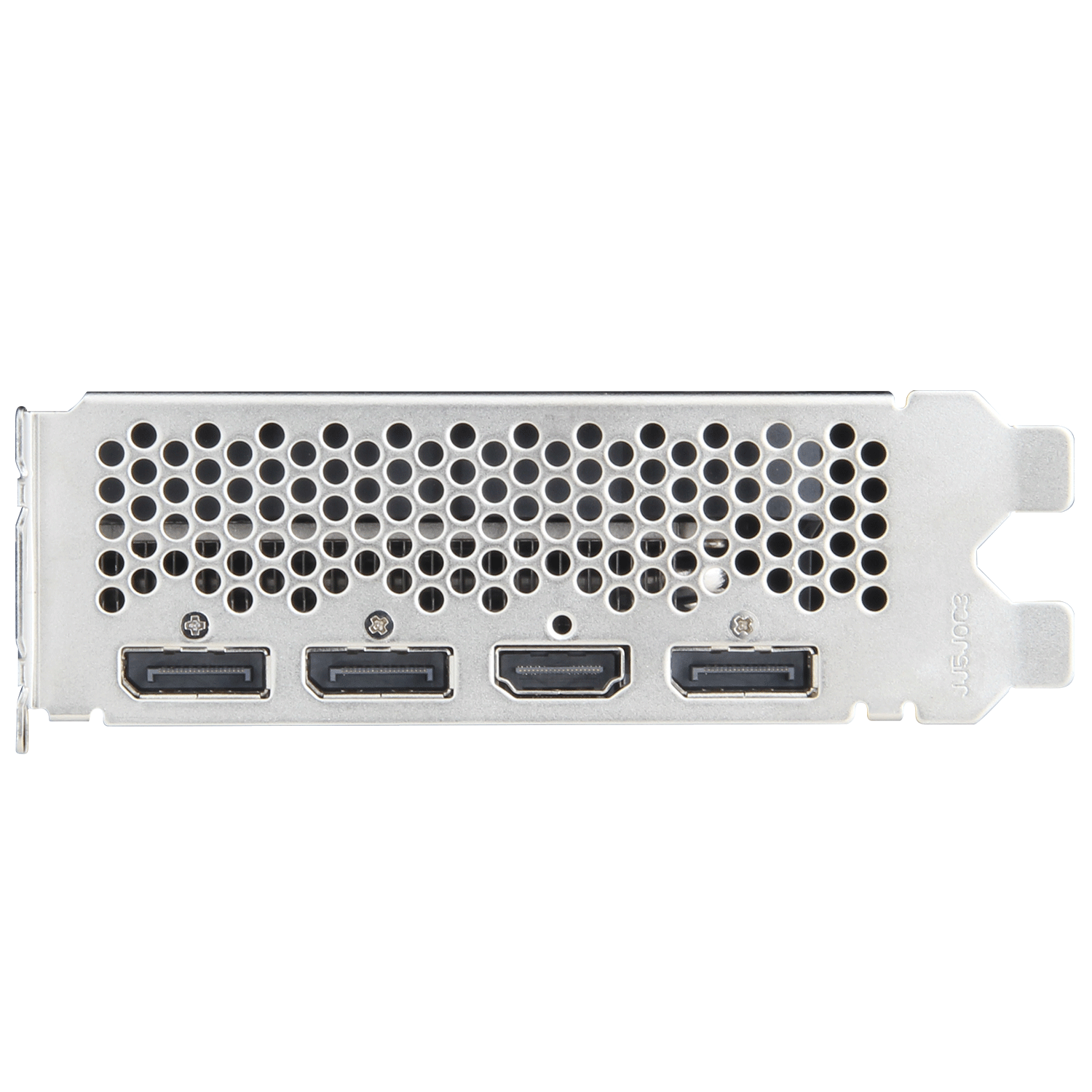

· Output interface: 1 * HDMI 3 * Display Port
· Heat dissipation method: Three heat pipes, dual fans, air-cooled heat dissipation
· Supported technologies: DirectX 12.1, OpenGL 4.6
· Supports 8K display output with maximum digital resolution of 7680 * 4320
Buy
· CUDA CORE: 2304
· Video Memory Specification: 8GB/256bit GDDR6
· Output interface: 1 * HDMI 3 * Display Port
· Heat dissipation method: Three heat pipes, dual fans, air-cooled heat dissipation
· Supported technologies: DirectX 12.1, OpenGL 4.6
· Supports 8K display output with maximum digital resolution of 7680 * 4320
