Model

HUANANZHI B760M-K Motherboard

Main chipset

Intel B760

CPU Socket

Support Intel LGA1700 platform processor

Memory slot

2 x DDR4 memory slot

Memory standard

Support dual channels DDR4 3200/2933/2666/2400MHz Memory(Depends on CPU/supports XMP)，Max support 64 GB

Storage interface

3 x SATA 3.0 6Gbps

Expansion Slots

1 x PCI Express 4.0x16 ，1 x PCI Express 3.0 x1

Expansion interface

2x M.2 2280 NVME PCIE X4 4.0，1x M.2 WIFI (Support CNVI)

Soud Track

Realtek High Fidelity Audio

Network Card

Realtek Gigabit network card RTL8111H

Power interface

24PIN+8PIN

FAN PIN

1xCPU_FAN PIN，1xSYS_FAN PIN

power supply

6-phase power supply

PCB layers

4-layer PCB

Dimension

218*170MM M-ATX

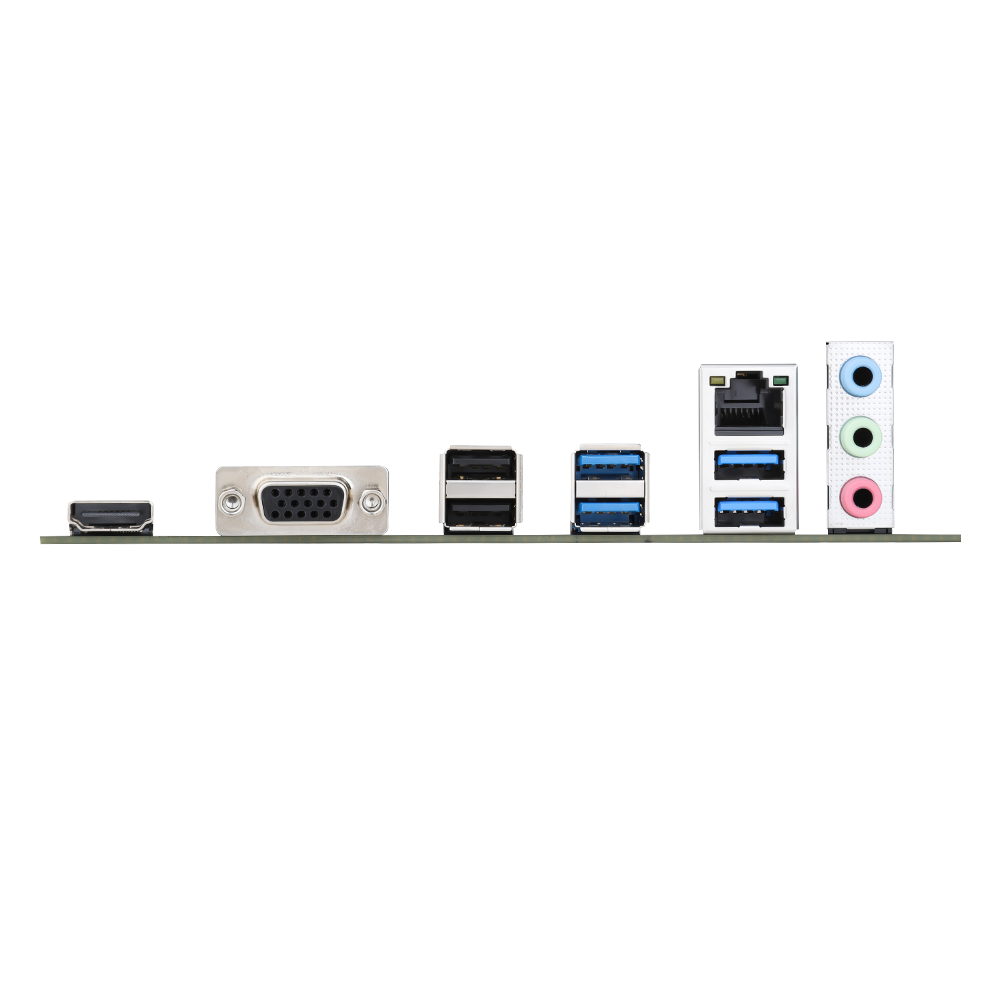

Rear panel interface

4x USB3.0 interface，2x USB2.0 interface，1x Inetwork interface，1x 3-hole audio interface，1x VGA

Front panel interface

1xUSB2.0 PIN，1xUSB3.0 PIN，1xFront audio PIN，1xCOM PIN，1xDebug PIN，1xPower on/restart pin，1xDebug indicator

Support system

Windows10 Windows11

BIOS

AMI UEFI BIOS

Packing list

1 x Motherboard，1 x SATA data cable，1xWarranty card，1xI/O shield back plat
