Model

HUANANZHI H510M-VHD Motherboard

Main chipset

Intel 400

CPU Socket

Support lntel LGA1200，Support Intel10/11 Core

Memory slot

2 x DDR4 memory slot

Memory standard

Support Dual channels DDR4 2933/2666/2400/2133MHz，Max support 64GB

Storage interface

4xSATA3.0 6Gbps interfaces

Expansion Slots

1xPCI Express3.0X16，1xPCIExpress3.0x1

Expansion interface

1x M.2 2280 NVME PCIE X4 3.0，1x M.2 WIFI

Soud Track

Realtek High Fidelity Audio

Network Card

Realtek Gigabit Network Card

Power interface

24pin+8pin

FAN PIN

1xCPU_FAN PIN，1xSYS_FAN PIN

power supply

4+1-phase power supply

PCB layers

4-layer PCB

Dimension

220*185MM M-ATX

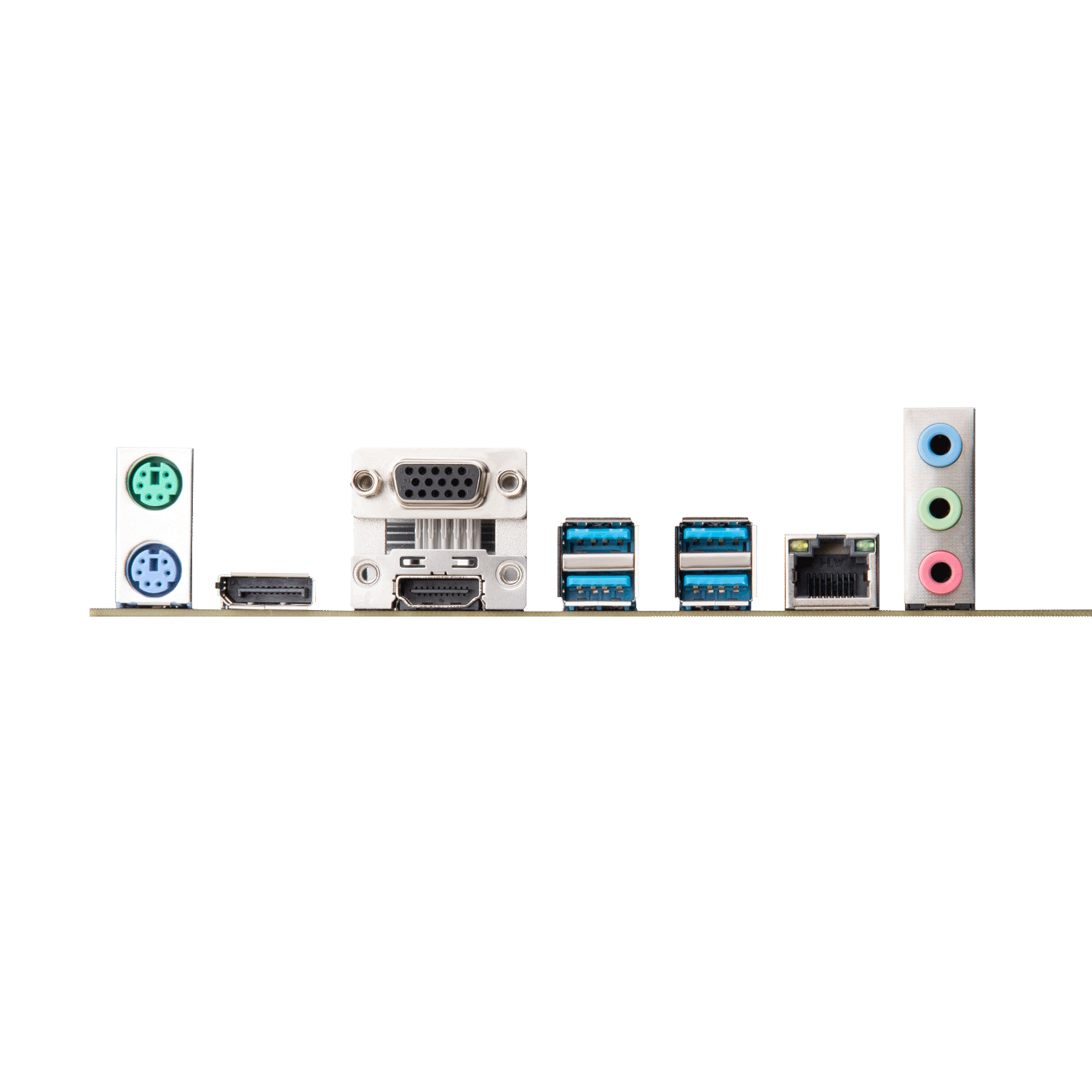

Rear panel interface

1xPS/2 Mouse and Keyboard port，4xUSB3.0，1x Network card interface，1x3-hole audio interface

1xHDMI，1xVGA，1xDP

Front panel interface

1 x USB2.0 PIN，1 x USB3.0 PIN，1 x Front audio PIN，1 xCOMPIN，1 xPower on/restart pin，1x Debug pin

Support system

Windows10 Windows11

BIOS

AMI UEFI BIOS

Packing list

1 x Motherboard，1x SATA data cable，1xWarranty card
