Graphics card model

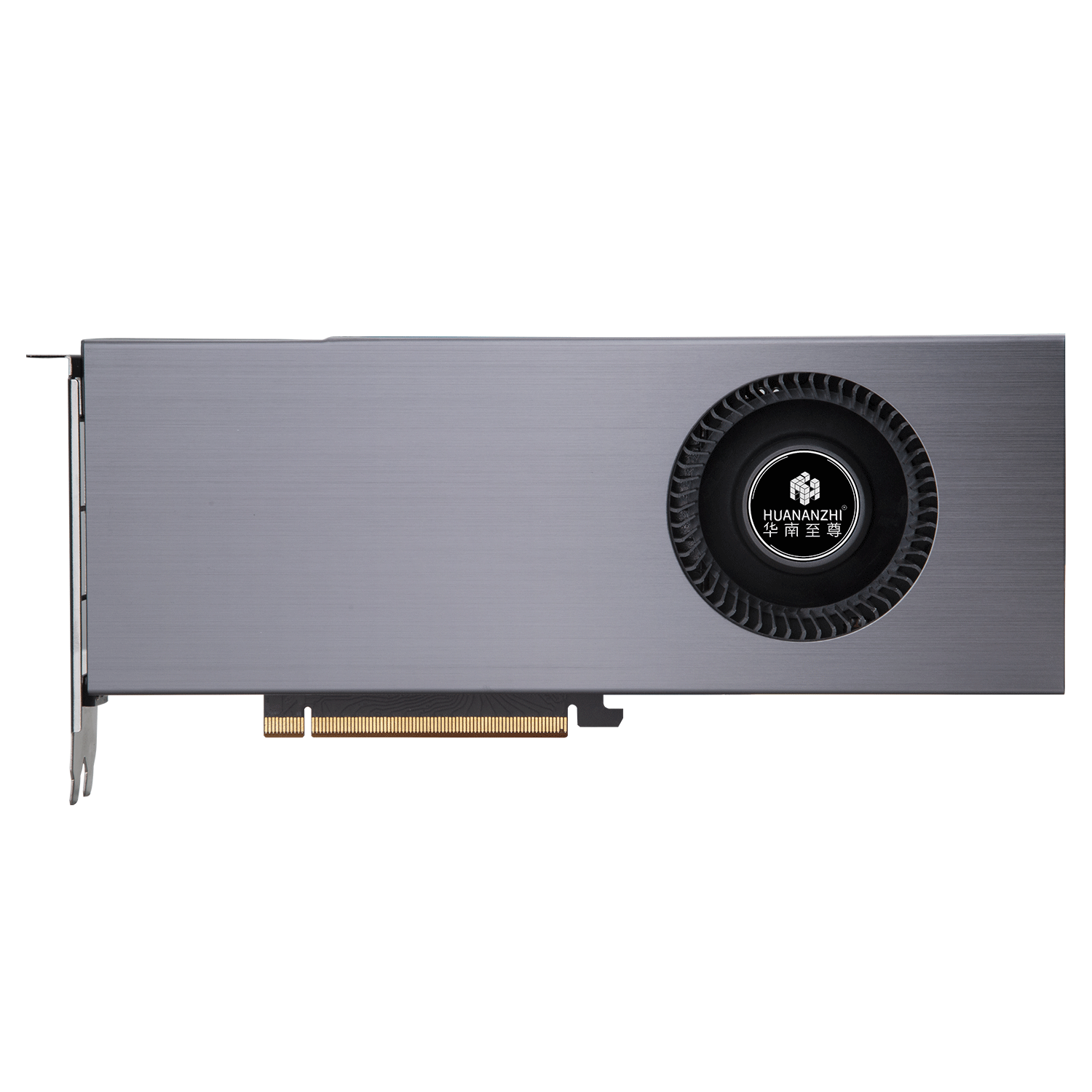

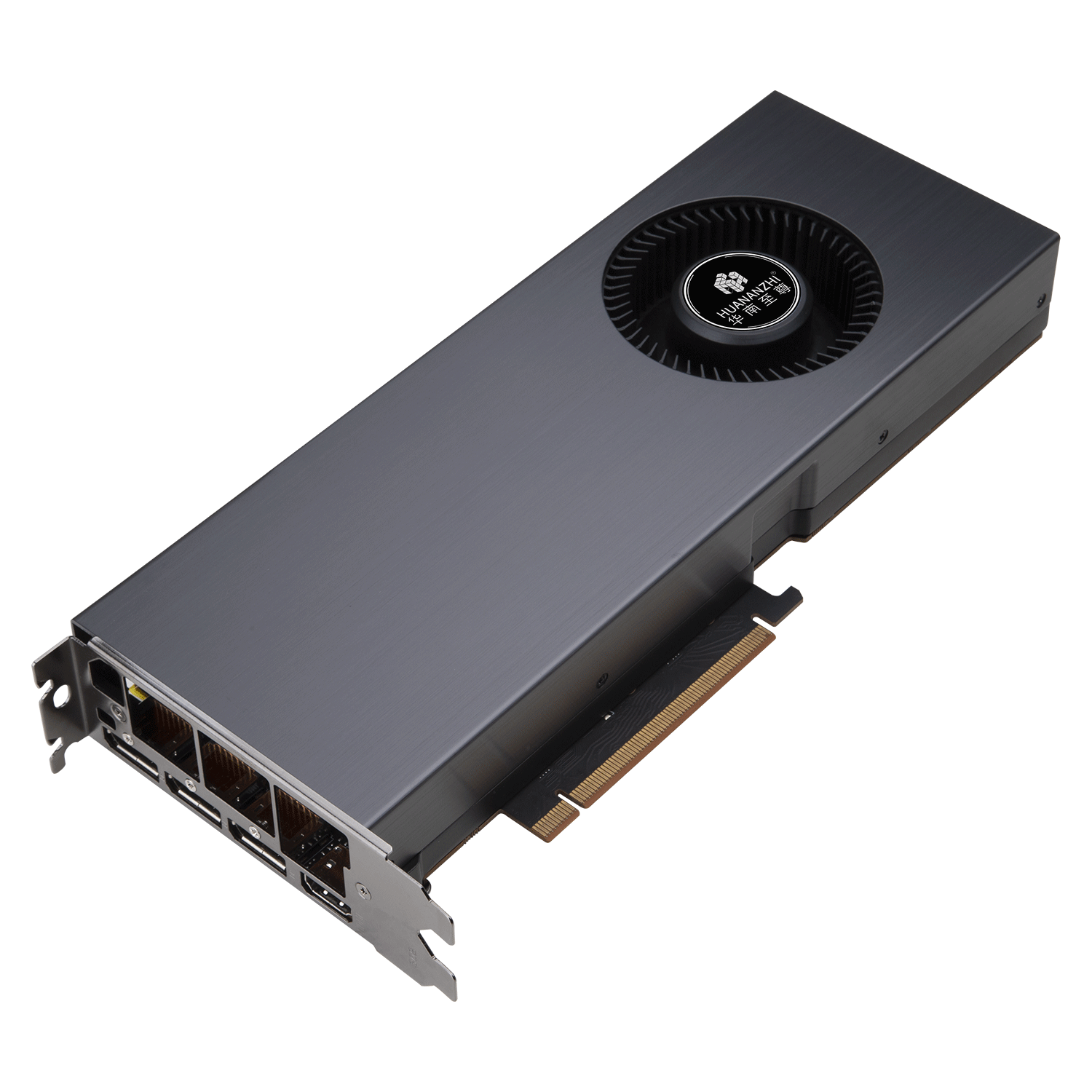

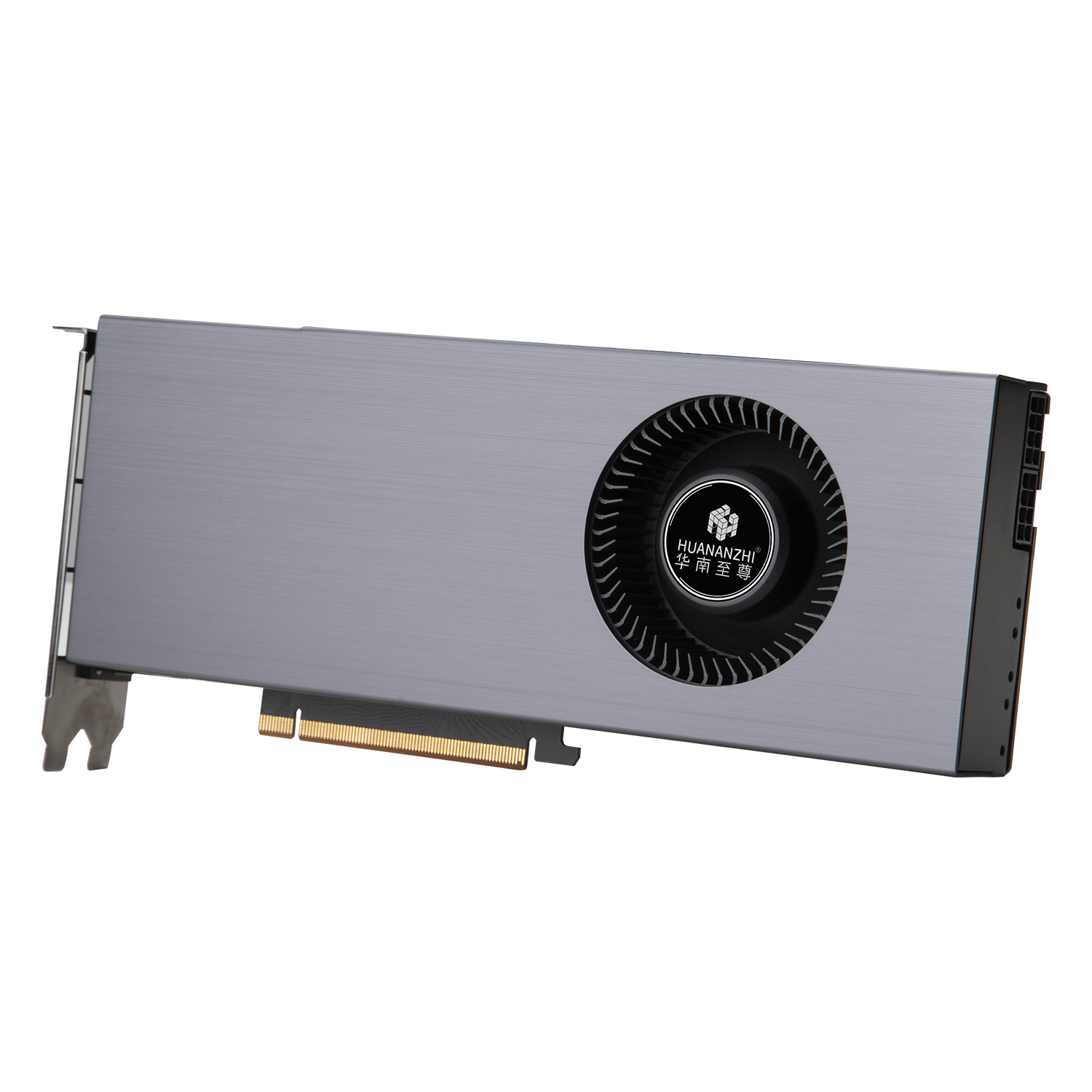

HUANANZHI RTX 3090 Graphics card
Model Number
RTX 3090
Sandy Bridge
GA102-300-A1
CUDA Core
10496
Core Clock(MHz)
Fundamental Clock：1400MHz；Acceleration Clock：1700MHz
Core process
8nm
Video Memory
24GB GDDR6X
Video memory bandwidth
936.2GB/s
Memory Interface
384bit
Memory frequency
19500MHz
Resolution
Digital Max Resolution 7680 x 4320

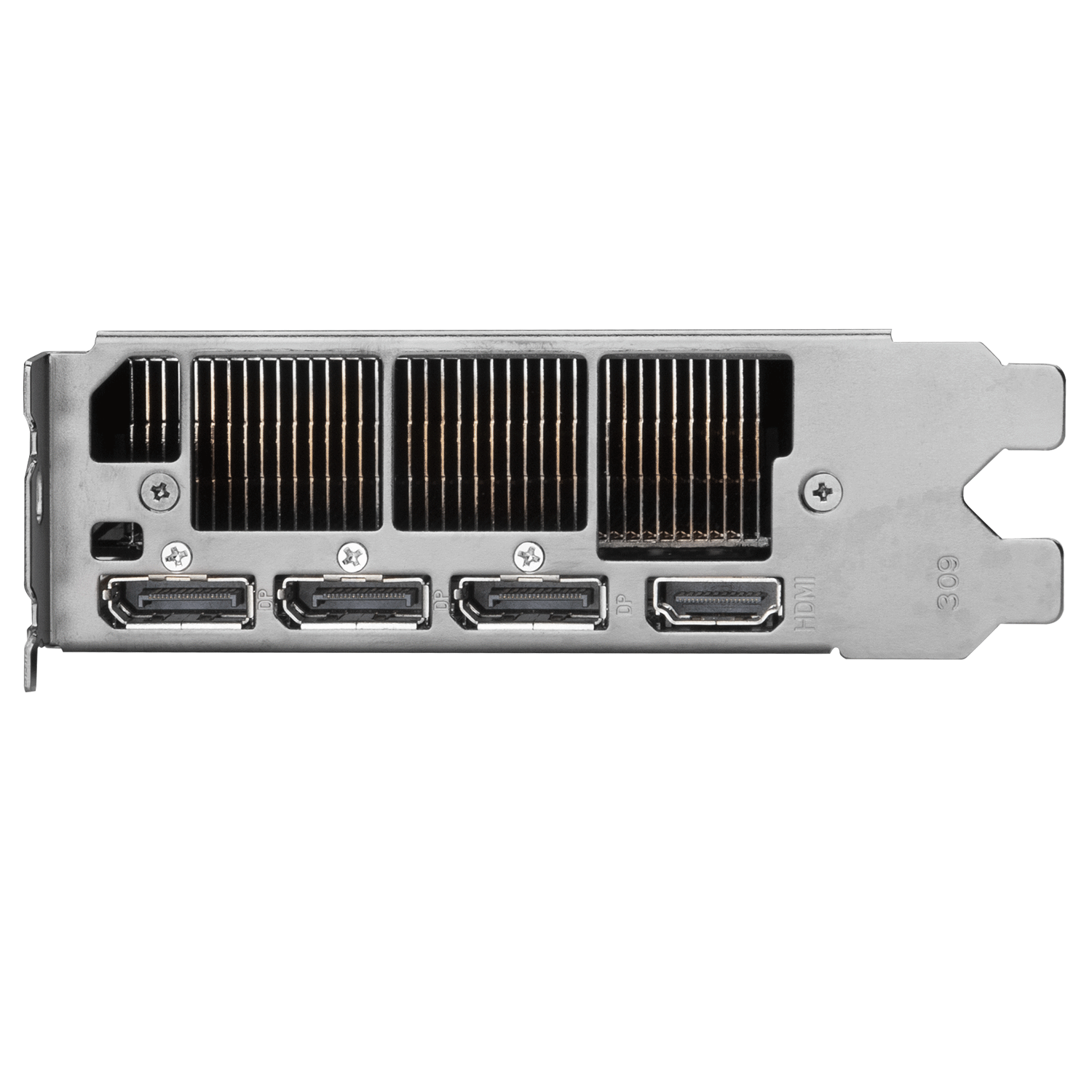

Interface
1*HDMI，3*DP
Dimensions
278*125*40MM
Power Connectors
8pin+8pin
Recommended power supply
PCI Express
Max GPU temperature
93
Heat dissipation method
turbofan
Graphics card power
350W
Support HDC
HDCP2.3
Min power supply
750W
-
User Manual
Installation video
RTX 3090 Graphics card
· Model Number：RTX 3090
· CUDA Core：10496
· Video Memory：24GB/384bit GDDR6X
· Interface：1*HDMI 3*Display Port
· Heat dissipation method：turbofan
· Support Technology：Technology Swpport、 Real-Timc Ray Tracing、 NVIDIA© GeForce Experience、 NVIDIA Ansel、NVIDIA® Highlights、NVIDIA G-SYNCT、Game Ready Drivers、Microsoft® DirectXe 12 Ultimate, Vulkan API, OpenGT. 4.6、HDCP2.3
· The Max resolution：7680*4320
Buy
· CUDA Core：10496
· Video Memory：24GB/384bit GDDR6X
· Interface：1*HDMI 3*Display Port
· Heat dissipation method：turbofan
· Support Technology：Technology Swpport、 Real-Timc Ray Tracing、 NVIDIA© GeForce Experience、 NVIDIA Ansel、NVIDIA® Highlights、NVIDIA G-SYNCT、Game Ready Drivers、Microsoft® DirectXe 12 Ultimate, Vulkan API, OpenGT. 4.6、HDCP2.3
· The Max resolution：7680*4320
