Model

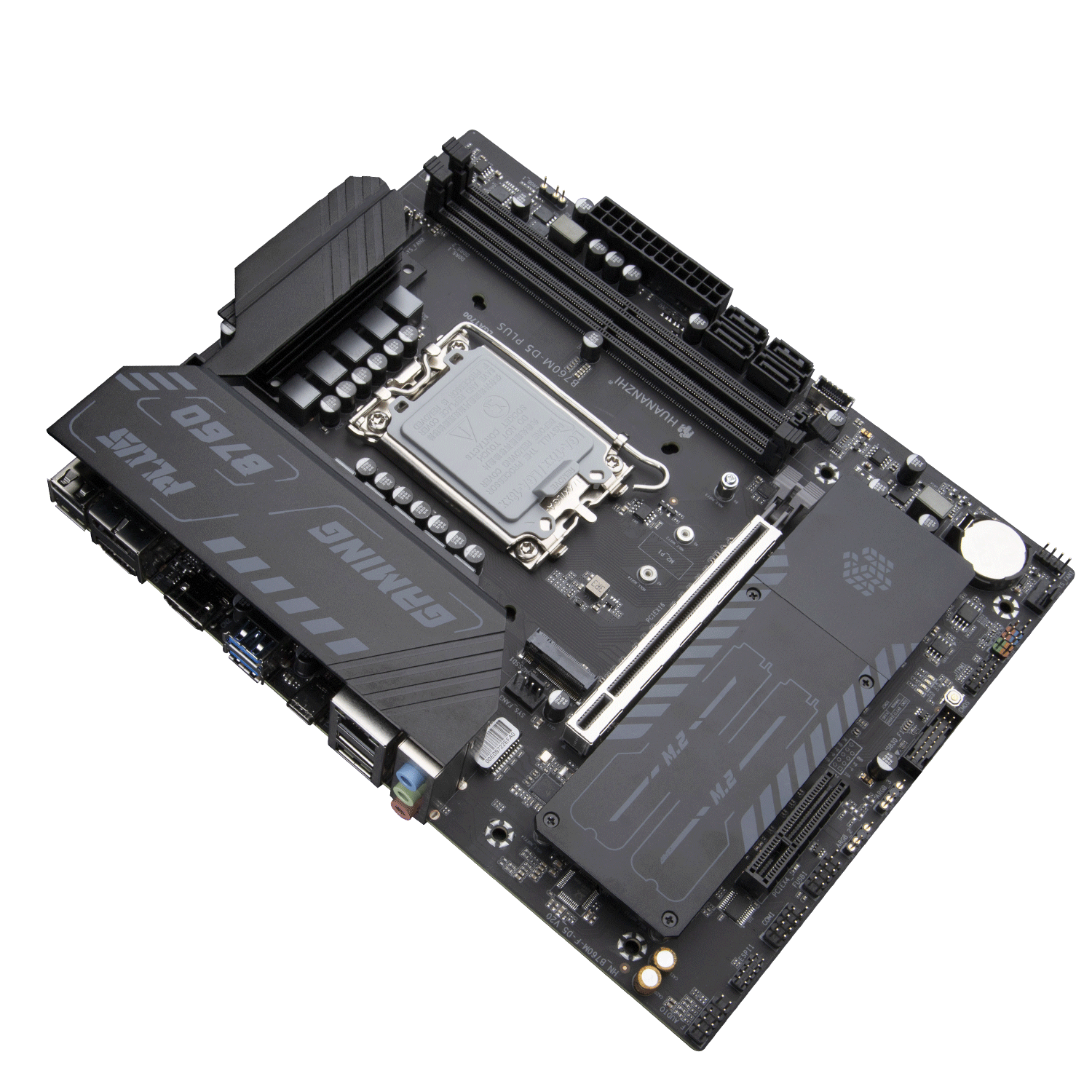

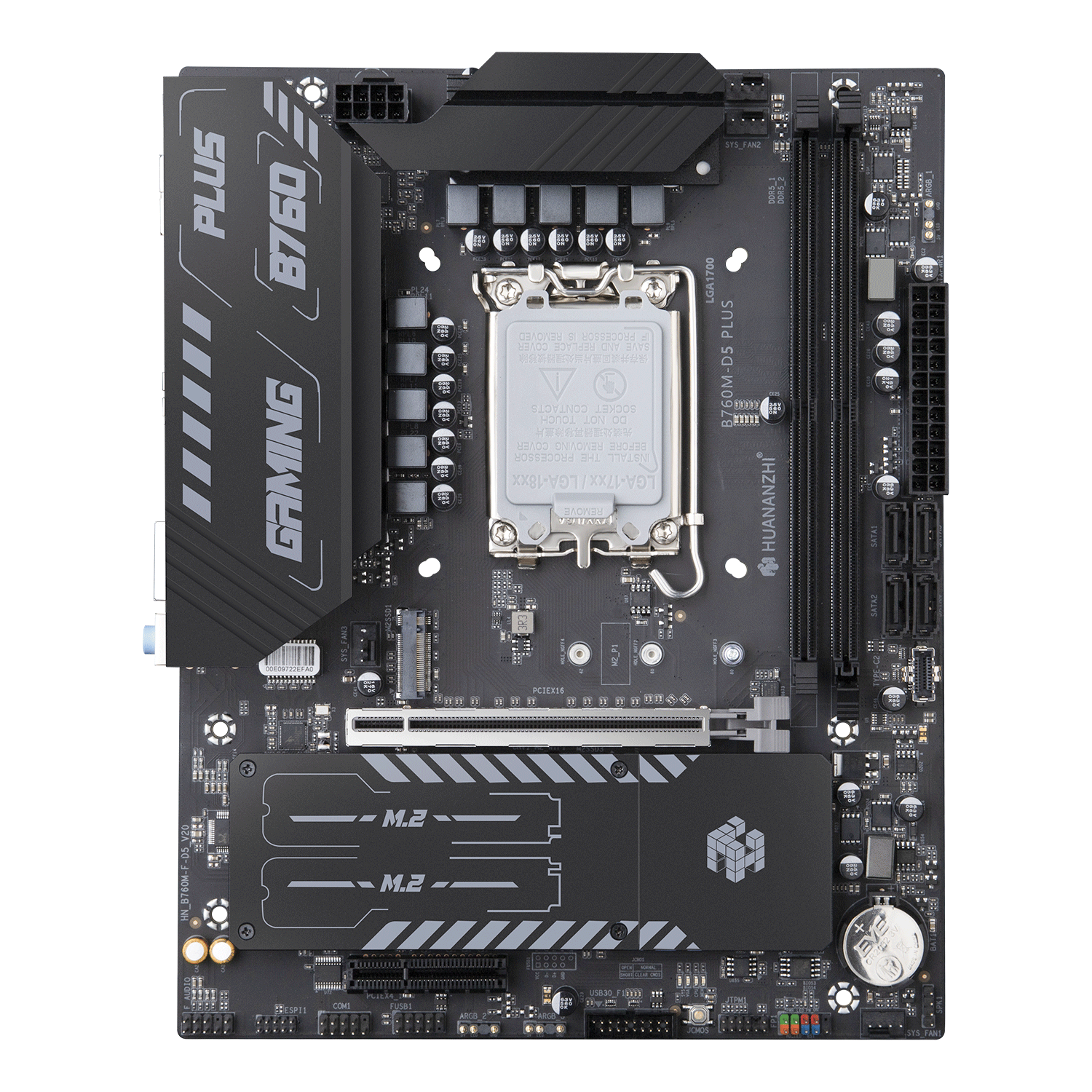

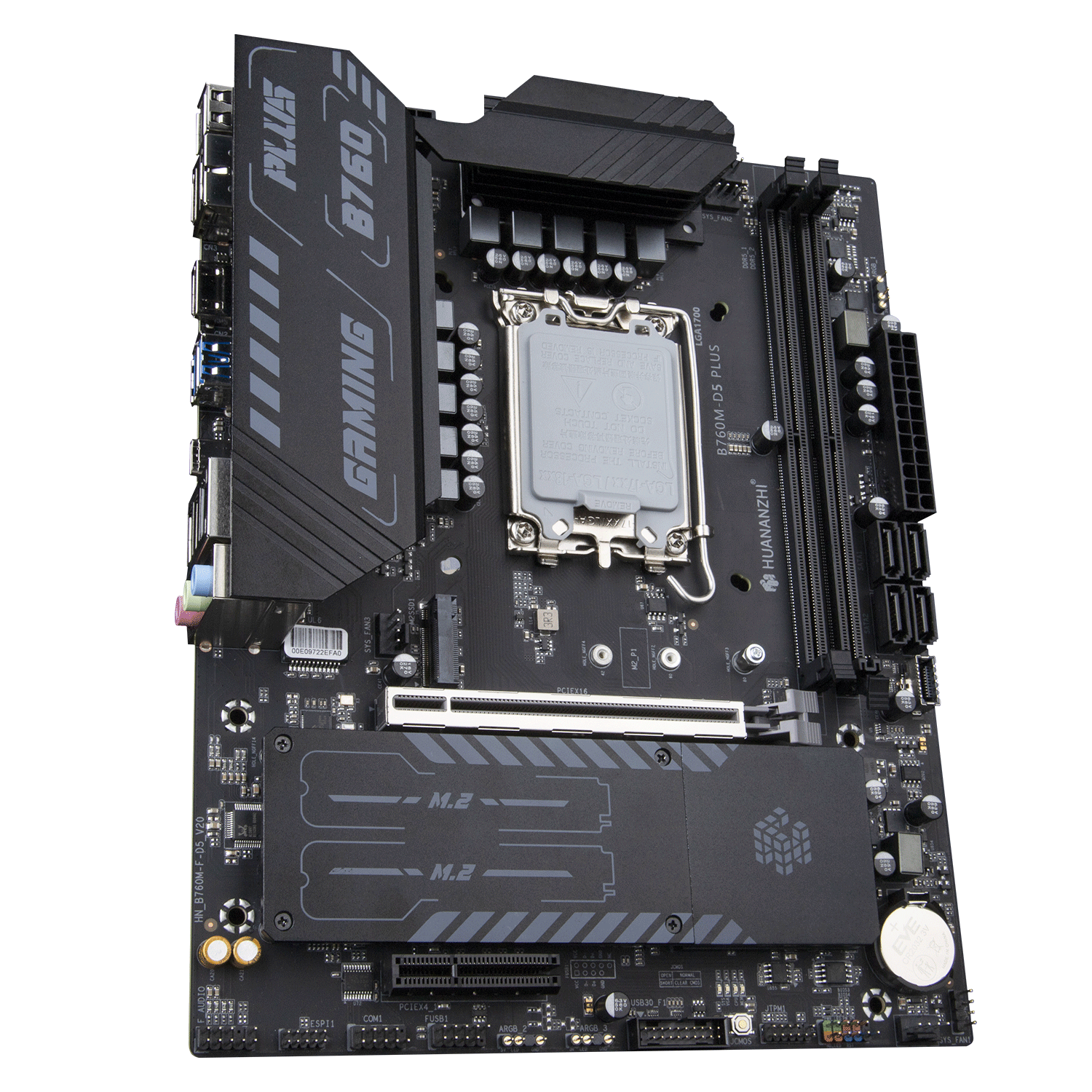

HUANANZHI B760M-D5 PLUS Motherboard

Main chipset

Intel B760

CPU Socket

Support Intel LGA1700，Supports Intel 12th/13th/14th generation Core processors

Memory slot

2 x DDR5 memory slot

Memory standard

Support Dual channels DDR5 6800/6400/6000/5600/5200/4800MHz，Max support96GB

Storage interface

4xSATA3.0 6Gbps interfaces

Expansion Slots

1xPCI Express4.0 x16，1xPCI Express3.0 x4

Expansion interface

3xM.2 2280 NVME PCIE X4 4.0，1xM.2 WIFI

Soud Track

Realtek High Fidelity Audio ALC897

Network Card

Realtek 2.5G Gigabit network card RTL8125BG

Power interface

24pin+8pin

FAN PIN

1xCPU_FAN PIN，2xSYS_FAN PIN

3x5V ARGB PIN（HUANANZHI Official website download software to control ARGB lighting effect)

power supply

10-phase power supply

PCB layers

6-layer PCB

Dimension

235*185MM M-ATX

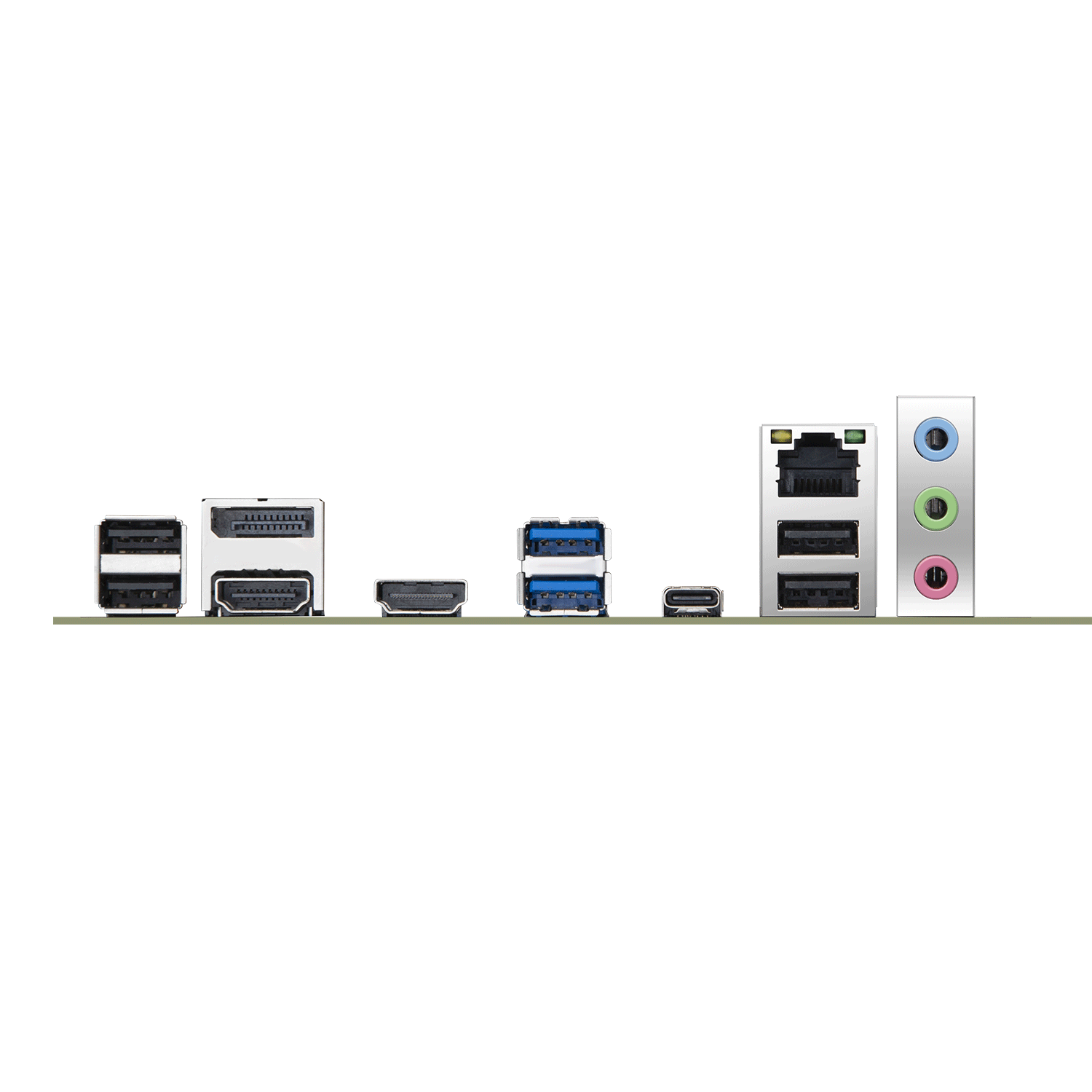

Rear panel interface

4xUSB2.0 480Mbps，2xUSB3.2 10Gb/s，1xType-C 5Gb/s，2xHDMI 2.1，1xDP 1.4，1x Network card interface，1x3-hole audio interface

Front panel interface

1 x USB2.0 480Mbps PIN，1 x USB3.2 5Gb/s PIN，1 x Front audio PIN，1 xCOMPIN，1 xPower on/restart pin，1x Debug pin，1 xCMOSPIN

1 x TPM PIN，1 x BuzzerPIN，1 x Type-C 5Gb/s ,1 x Debugging indicator light

Support system

Windows10 Windows11(Supports incoming power on/timed power on/network wake-up/S3 sleep/network card IPV4/IPV6)

BIOS

AMI UEFI BIOS Graphics BIOS

Packing list

1 x Motherboard，1x SATA data cable，1xWarranty card
