Model
HUANANZHI B550E-B Motherboard
Main chipset
AMD B550/PRO 565
CPU Socket
Supports AMD AM4 processors (Ryzen 3000/4000/4000G/5000/5000G series processors)
Memory slot
2 x DDR4 memory slot
Memory standard
Support DDR4 2133/2400/2666/3000(OC)/3200(OC)/3600(OC)MHz，Max support64GB
Storage interface
4xSATA3.0 6Gbps interfaces
Expansion Slots
1xPCI Express4.0X16，1xPCIExpress x1
Expansion interface
1xM.2 SSD interfaces:support PCI-E4.0 X4 NVME SSD& SATA3.0 SSD
1xM.2 WIFI interface (supports PCIE protocol)
Soud Track
3.5mm interfaces，5.1
Network Card
Gigabit network card
Power interface
24pin+8pin
FAN PIN
1x intelligent temperature control CPU fan connector, 2x system fan connector
Dimension
220mm×180mm

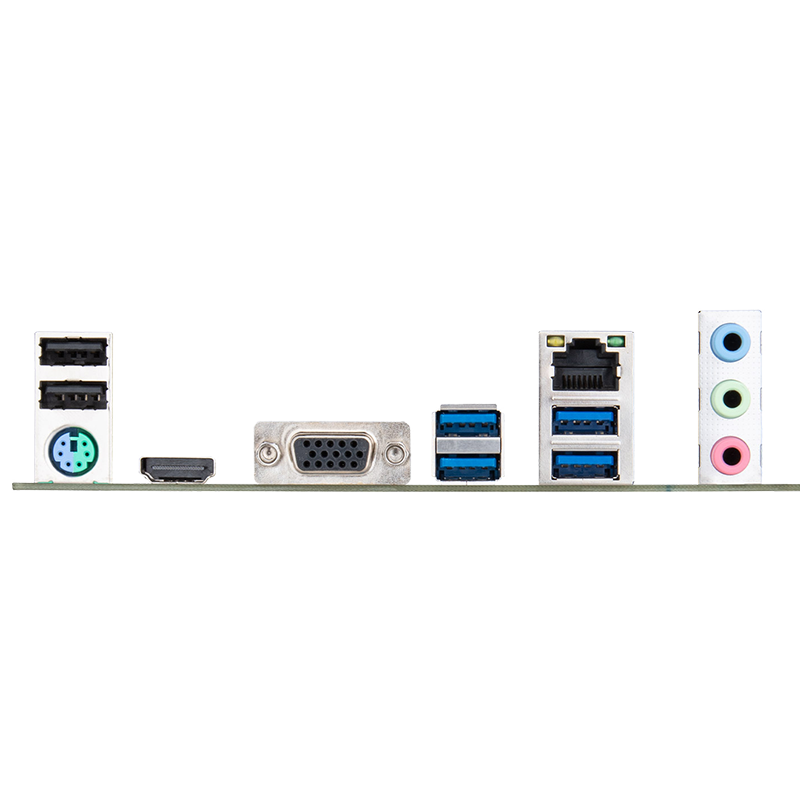

Rear panel interface
1xPS/2，4xUSB3.2 Gen1，2xUSB 2.0，1xHDMI，1xVGA，1x Network card interface，1x3-hole audio interface
Front panel interface
2 x USB2.0 PIN，1 x USB3.2 Gen 1PIN，1xRGB light pin (4pin 12v)
Support system
Windows10 Windows11
BIOS
AMI EFI BIOS
Packing list
1 x Motherboard，1x SATA data cable，1xWarranty card
-
User Manual
Installation video
HUANANZHI B550E-B Motherboard
· Ryzen 5th/4th/3rd generation series processors supporting AM4 interface and AMD SenseMI technology
· 4+2 phase reinforced digital power supply, solid-state capacitor
· Dual channel DDR4 × 2 memory, with a maximum memory frequency of 3600MHz
· Supports SATA and NVMe protocol solid-state drives.
· 4xSATA 3.0 interface, effortlessly possessing massive capacity
· Gigabit network card, M.2 WIFI interface, HDMI+VGA dual display interface
