Model
HUANANZHI B550PLUS-2.5G-W Motherboard
Main chipset
AMD B550
CPU Socket
Supports AMD AM4 processors (Ryzen 3000 series, 4000 series, 4000G series, 5000 series, 5000G series CPUs)
Memory slot
2 x DDR4 memory slot
Memory standard
Support DDR4 2133/2400/2666/3000/3200/3400/3600MHz，Max support64GB，One click overclocking
Storage interface
4xSATA3.0 6Gbps interfaces（RAID0/1/10）
Expansion Slots
1xPCI Express4.0X16，1xPCIExpress x4
Expansion interface
2xM.2 SSD interfaces:support PCI-E4.0 X4 NVME SSD& SATA3.0 SSD
1xM.2 WIFI interface (supports PCIE protocol)
Soud Track
3.5mm interfaces，5.1
Network Card
Realtek 2.5 Gb
Power interface
24pin+8pin
FAN PIN
1x intelligent temperature control CPU fan connector, 3x system fan connector
Dimension
245mm×220mm

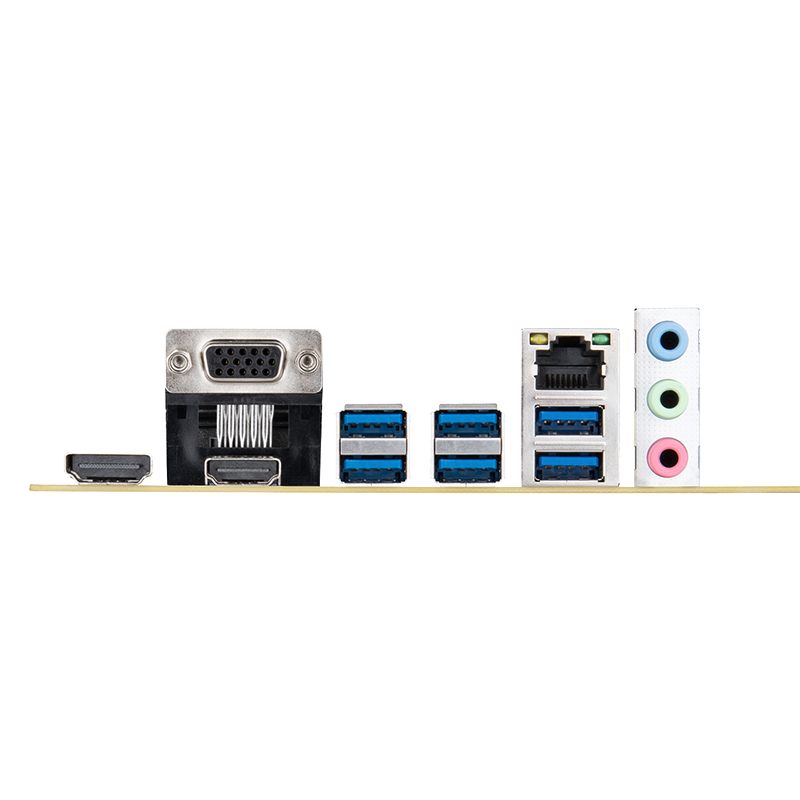

Rear panel interface
4xUSB3.2 Gen1，2xUSB 2.0，1xHDMI，1xVGA，1×DP，1x Network card interface，1x3-hole audio interface
Front panel interface
2 x USB2.0 PIN，1 x USB3.2 Gen 1PIN
Support system
Windows10 Windows11
BIOS
AMI EFI BIOS
Packing list
1 x Motherboard，1x SATA data cable，1xWarranty card
-
User Manual
Installation video

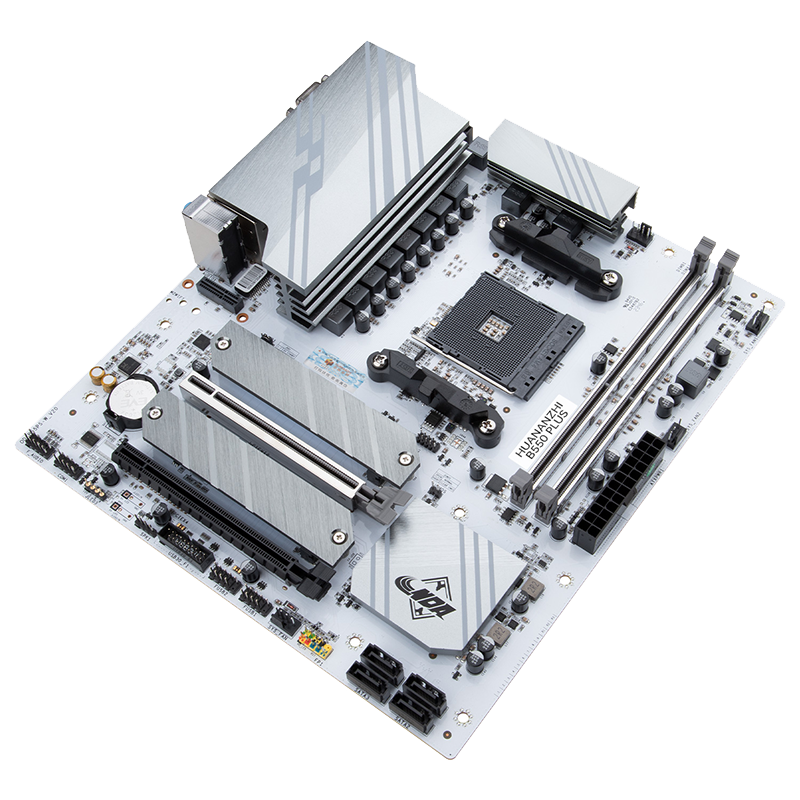

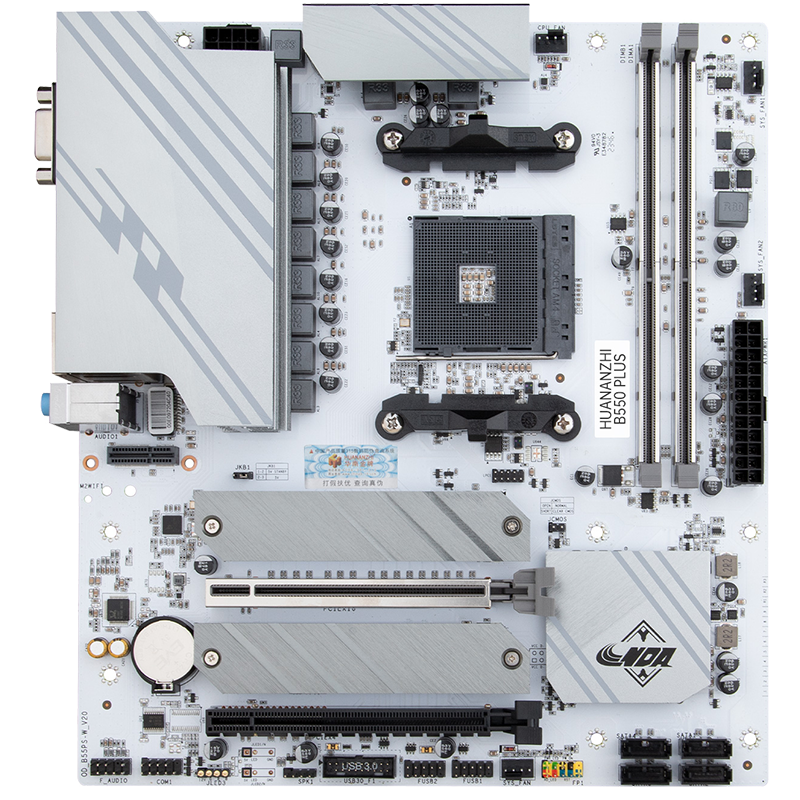

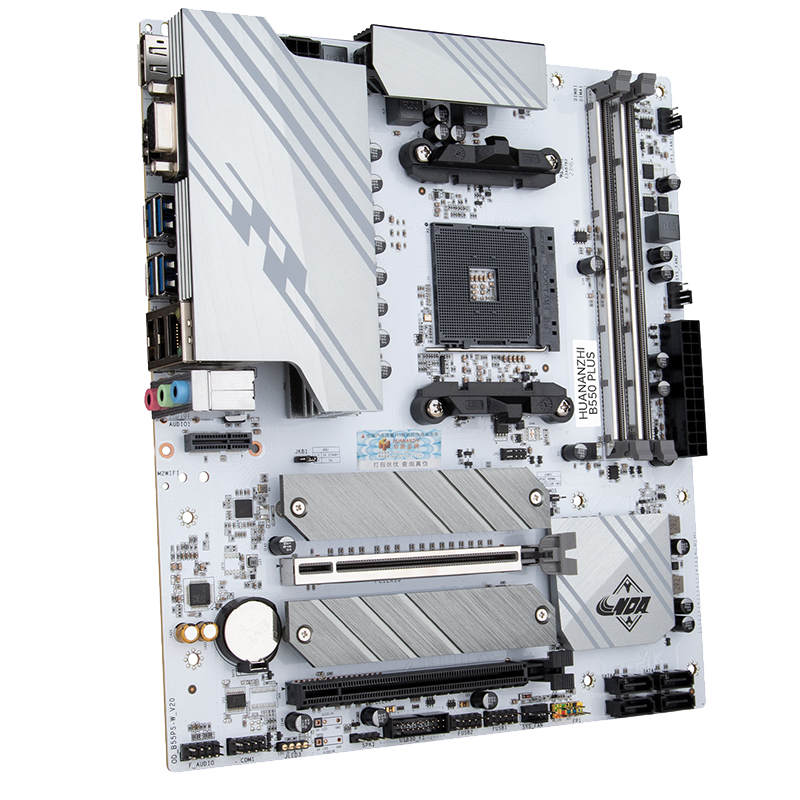

HUANANZHI B550PLUS-2.5G-W Motherboard
· Ryzen 5th/4th generation series processors supporting AM4 interface and AMD SenseMI technology
· 8+2 phase reinforced digital power supply, solid-state capacitors, greatly improving the stability and durability of the motherboard
· A larger area of alloy heat sink, covering the core IC, power supply module, and PCIE M.2 interface, effectively cooling and anti-interference.
· Dual channel DDR4 × 2 memory, with a maximum memory frequency of 3600MHz and one click overclocking
· Supports SATA and up to 32Gb/s NVMe protocol solid-state drives.
· 4 SATA 3.0 interfaces for easy access to massive capacity
· 2.5GB network chip, M.2 WIFI interface, DP+HDMI+VGA triple display interface, with rich expansion.
