Model

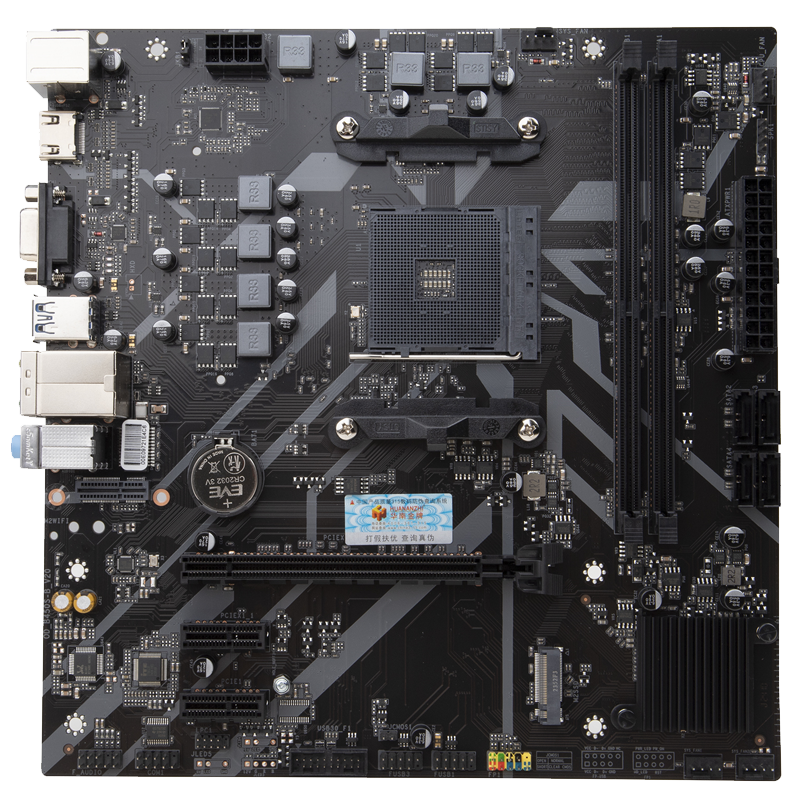

HUANANZHI B450S+B Motherboard
Main chipset
AMD B450
CPU Socket
Support AMD AM4 socket processor Ryzen 1st, 2nd, 3rd, 4th, 5th generation CPU, Athlon series CPU
Memory slot
2 x DDR4 memory slot
Memory standard
Support DDR4 2400/2666/3000/3200(OC)/3600(OC)MHz，Max support64GB
Storage interface
4xSATA3.0 3Gbps interfaces（RAID0/1/10）
Expansion Slots
1xPCI Express3.0X16，2xPCIExpress x1
Expansion interface
1xM.2 SSD interfaces:support PCI-E 3.0X4 NVME SSD&SATA 3.0 SSD
（Ryzen CPUs support NVMe SSDs and SATA 3.0 SSDs, while Athlon CPUs only support SATA 3.0 SSDs.）
1 × M.2 WIFI interface (supports PCIE protocol)
Soud Track
Realtek ALC897
Network Card
Realtek RTL8111H Gigabit Ethernet Controller
Power interface
24pin+8pin
FAN PIN
1xCPU_FAN PIN，1xSYS_FAN PIN
Dimension
226*220MM M-ATX
Rear panel interface
1xPS/2 Mouse and Keyboard port，4xUSB3.0，2xUSB2.0，1xHDMI，1xVGA，1x Network card interface，1x3-hole audio interface
Front panel interface
2 x USB2.0 PIN，1 x USB3.0 PIN，1 x Front audio PIN，1 xCOMPIN，1 xF_AUDIO pin，1xSPEAKER pin
Support system
Windows10 Windows11
BIOS
AMI EFI BIOS (Chinese and English Graphical BIOS) UEFI Mode
Packing list
1 x Motherboard，1x SATA data cable，1xWarranty card
-
User Manual
Installation video
HUANANZHI B450S+B Motherboard
· Support AMD AM4 socket processor
· 2 x DDR4 memory slot，Max support64GB
· 4xSATA3.0 3Gbps interfaces（RAID0/1/10）
· 1xPCI Express3.0X16，2xPCIExpress x1
· 1xM.2 SSD interfaces，1 × M.2 WIFI interface
· 4xUSB3.0，2xUSB2.0，2 x USB2.0 PIN，1 x USB3.0 PIN
· 1xHDMI，1xVGA，Gigabit Ethernet Controller
