Model

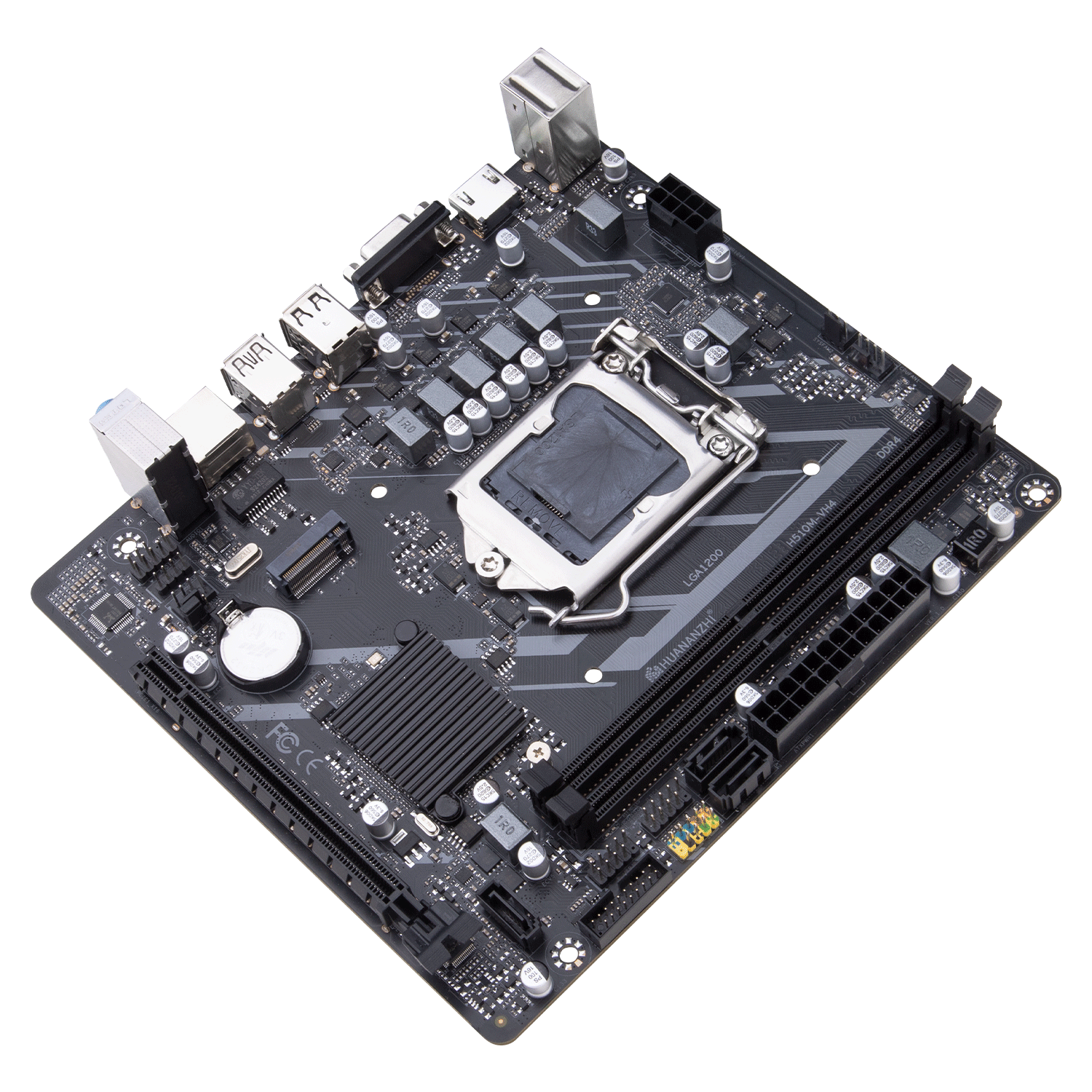

HUANANZHI H510M-VH4 Motherboard

Chipset

Intel H470 Series Chipset

CPU Socket

Support Intel LGA1200 Platform Processors

Memory Slot

2 x DDR4 Memory Slot

Memory Standard

Support Dual channels DDR4 2933/2666/2400MHz，Max support 64GB

Storage interface

3xSATA 3.0 6Gbps

Expansion Slots

1xPCI Express3.0 x16，1xPCI Express 3.0 x1

Expansion Interface

1xM.2 2280 NVME PCIE X4 3.0 32Gbps

Sound Track

Realtek High Fidelity Audio

Network Card

Gigabit Network Card

Power interface

24PIN+8PIN

FAN PIN

1xCPU_FAN PIN，2xSYS_FAN PIN

Power Supply

6-phase power supply

PCB Layers

4-layer PCB

Dimension

190*170MM M-ATX

Rear Panel Interface

4xUSB2.0 480Mbps，2xUSB3.2 10Gbps，1x Network card interface，1x3-hole audio interface，

1xVGA interface，1xHDMI interface

1 x PS/2 Mouse and Keyboard port，1 xUSB2.0 480Mbps PIN，1 xUSB3.2 5Gb/s PIN，

1 xFront audio PIN，1 xPower on/restart pin，1 xCOM PIN，1 xDebug PIN

Windows10 Windows11

（Support incoming power on/timed power on/network wake-up/network card startup）

BIOS

AMI UEFI BIOS

Packing List

1 x Motherboard，1x SATA Cable，1xWarranty Card
