Model
HUANANZHI X79-8D DUAL Motherboard
Main chipset
Intel C602
CPU Socket
Support Intel LGA2011
Memory slot
8 x DDR3 memory slot
Memory standard
Support four channel DDR3 1866/1600/1333MHz Memory，Max support 256GB
Storage interface
4 x SATA2.0 3Gbps，2 x SATA3.0 6Gbps
Expansion Slots
2xPCI Express3.0 x16，2xPCI Express3.0x1
Expansion interface
1个M.2 2280 NVME PCIE X4 3.0 32Gbps
Soud Track
5.1 sound card
Network Card
Gigabit Ethernet
Power interface
24PIN+8PIN+8PIN
FAN PIN
2xCPU_FAN PIN，2xSYS_FAN PIN
power supply
7+7-phase power supply
PCB layers
10-layer PCB
Dimension
305*290MM E-ATX

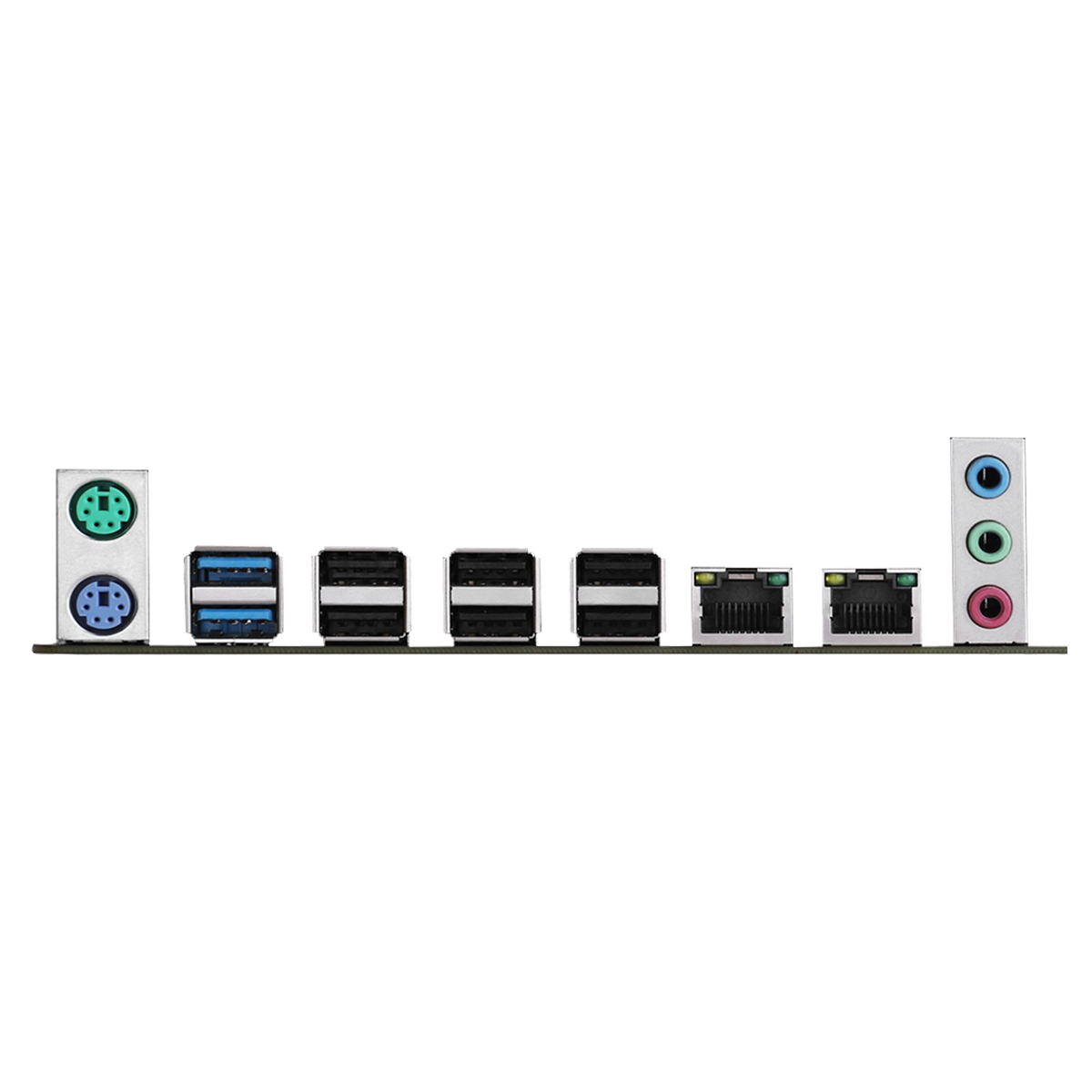

Rear panel interface
1 x PS/2 Mouse and Keyboard port，6xUSB2.0，2xUSB3.0，2xRJ45Network card interface，1x3-hole audio interface
Front panel interface
2 x USB2.0 PIN，1 x USB3.0 PIN，1 xFront audioPIN，1xCOM PIN，1xMotherboard buzzer
Support system
Windows7 Windows10 Windows11
BIOS
AMI UEFI BIOS
Packing list
1 x Motherboard，2 x SATA data cable，1xWarranty card，1xI/O shield back plat
-
X79-8D DUAL Motherboard Drive Download
X79-8D DUAL Motherboard BIOS（22-10-26） Download
X79-8D DUAL Sound card driver Download
X79-8D DUAL Network card driver Download
X79-8D DUAL USB3.0 driver Download
-
User Manual
HUANANZHI X79-8D motherboard User Manual Download
Installation video
HUANANZHI X79-8D DUAL Motherboard
· 8 x DDR3 memory slot，Max support 256GB
· four channel DDR3 1866/1600/1333MHz Memory
· 2xPCI Express3.0 x16，2xPCI Express3.0x1
· 4 x SATA2.0 3Gbps，2 x SATA3.0 6Gbps
· 1个M.2 2280 NVME PCIE X4 3.0 32Gbps
· 6xUSB2.0，2xUSB3.0，2 x USB2.0 PIN，1 x USB3.0 PIN
