GPU Model
RTX 2080TI 11G
Model
RTX 2080TI
chip Manufacturer
NVDIA
GPU Chip
GeForce RTX 2080TI
display chip series
RTX 2080TI series
Core Codename
TU102-300A-K1
core / acceleration frequency
Base frequency: 1545MHz; acceleration frequency: 1750MHz
core work Process
12 nm
CUDA core
4352
VRAM Specification
GDDR6
Video Memory frequency
16000MHz
Video Memory Wide
352bit
Video Memory bandwidth
616.0GB/s
Max Resolution
7680*4320
port type
PCI Express 3.0 16X
Display Interface
1*HDMI，3*DP，1*TYPE-C
Auxiliary Power
8 pin+8 pin
Max high GPU temperature
89
Cooling Method
Turbine Fan
graphics card Wattage
250W
supports HDCP
is HDCP2.2
products dimensions
268*155*38MM
-
User Manual
Installation Video
RTX2080TI 11G
Graphics Core: RTX 2080TI 11G
Stream Processors: 4352
VRAM Specification: 22GB/352bit GDDR6

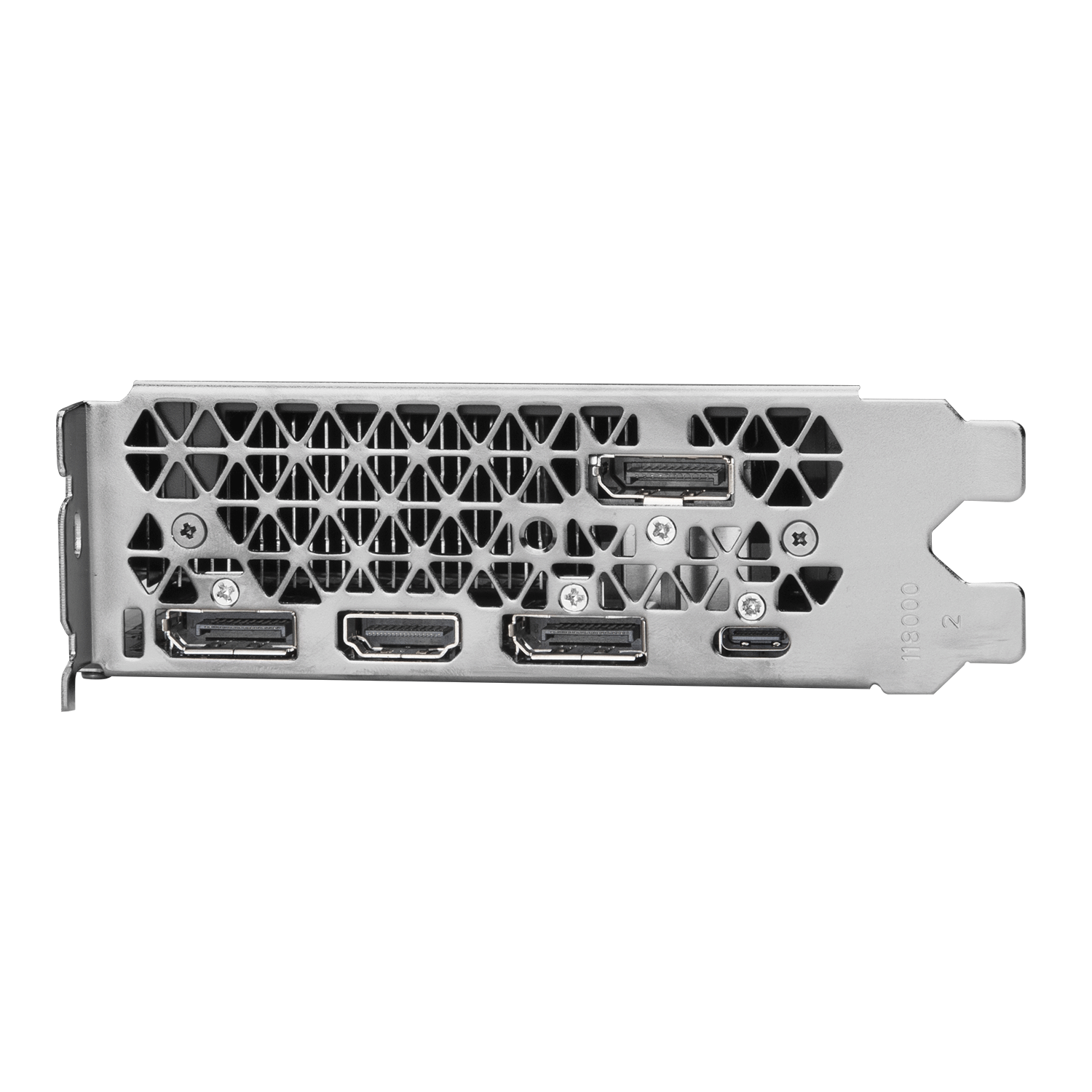

Output Interface: 1*HDMI 3*Display Port 1*TYPE-C
Cooling: turbine fan
Supported Technologies: Technical Support Technology Swpport, Real-Timc Ray Tracing, NVIDIA© GeForce Experience, NVIDIA Ansel, NVIDIA® Highlights, NVIDIA G-SYNCT, Game Ready Drivers, Microsoft® DirectXe 12 API, Vulkan API, OpenGT. 4.6, Display Port 1-4, HDMI 20b, HDCP2.2, NVIDIA® GPU Boot T™, NVIDIA NVLINK(SLI-Ready), VR Ready, Designed for USB Type-c™ and VirtualL.ink™™, DVIDIA Encoder (EVENC)
supports 8K Max Digital Display Output Resolution: 7680*4320
