Main chipset

Intel C612

CPU Socket

Support lntel LGA2011-3

Memory slot

4 x DDR3 memory slot

Memory standard

Support four channels DIMM DDR3 1333/1600/1866MHz，Max support 128GB

Storage interface

6xSATA3.0 6Gbps interfaces

Expansion Slots

1xPCI Express3.0 x16，1xPCI Express2.0 x1，1xPCI Express3.0 x4

Expansion interface

1xM.2 2280 NVME PCIE X4 3.0，1xM.2 WIFI

Soud Track

Realtek High Fidelity Audio ALC897

Network Card

Realtek Gigabit Network Card RTL8111

Power interface

24pin+8pin

FAN PIN

1xCPU_FAN PIN（Support temperature control adjustment），3xSYS_FAN PIN

power supply

8-phase power supply

PCB layers

6-layer PCB

Dimension

237*185MM M-ATX

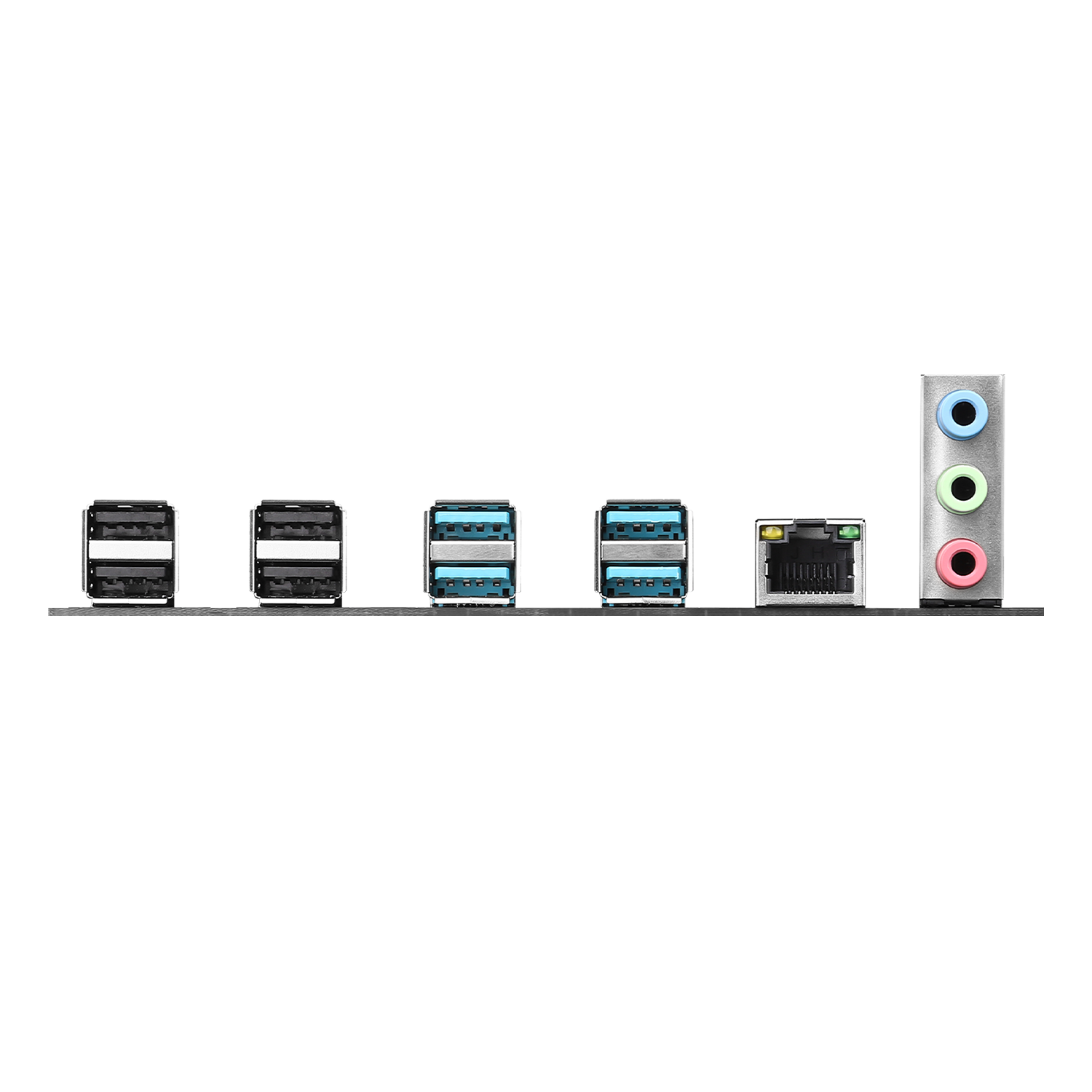

Rear panel interface

4xUSB2.0，4xUSB3.0，1x Network card interface，1x3-hole audio interface

Front panel interface

1 x USB3.0 PIN，1 x USB2.0 PIN，1 x Front audio PIN，1 xCOMPIN，1 xPower on/restart pin

1 xJLPC Pin，1x TPM pin

Support system

Windows10  Windows11（Supports incoming call startup/scheduled power-on/WOL

(Wake-on-LAN)/IPv4 diskless boot）

BIOS

AMI UEFI BIOS

Packing list

1 x Motherboard，1x SATA data cable，1xWarranty card
