Model
HUANANZHI X99M-HD3 Motherboard
Main chipset
Intel H81
CPU Socket
Support lntel LGA2011-3
Memory slot
4 x DDR3 memory slot
Memory standard
Support Dual channels DDR3 1600/1333/1066MHz，Max support 128GB
Storage interface
2xSATA2.0 3Gbps interfaces,1xSATA3.0 6Gbps interfaces
Expansion Slots
1xPCI Express3.0X16，1xPCIExpress2.0x1
Expansion interface
1xM.2 2280 NVME PCIE X4 3.0&NGFF SATA3.0
Soud Track
Realtek HD Audio ALC887
Network Card
Realtek Gigabit LAN RTL8111H
Power interface
24pin+8pin
FAN PIN
1xCPU_FAN PIN，1xSYS_FAN PIN
power supply
6-phase power supply
PCB layers
4-layer PCB
Dimension
215*190MM M-ATX

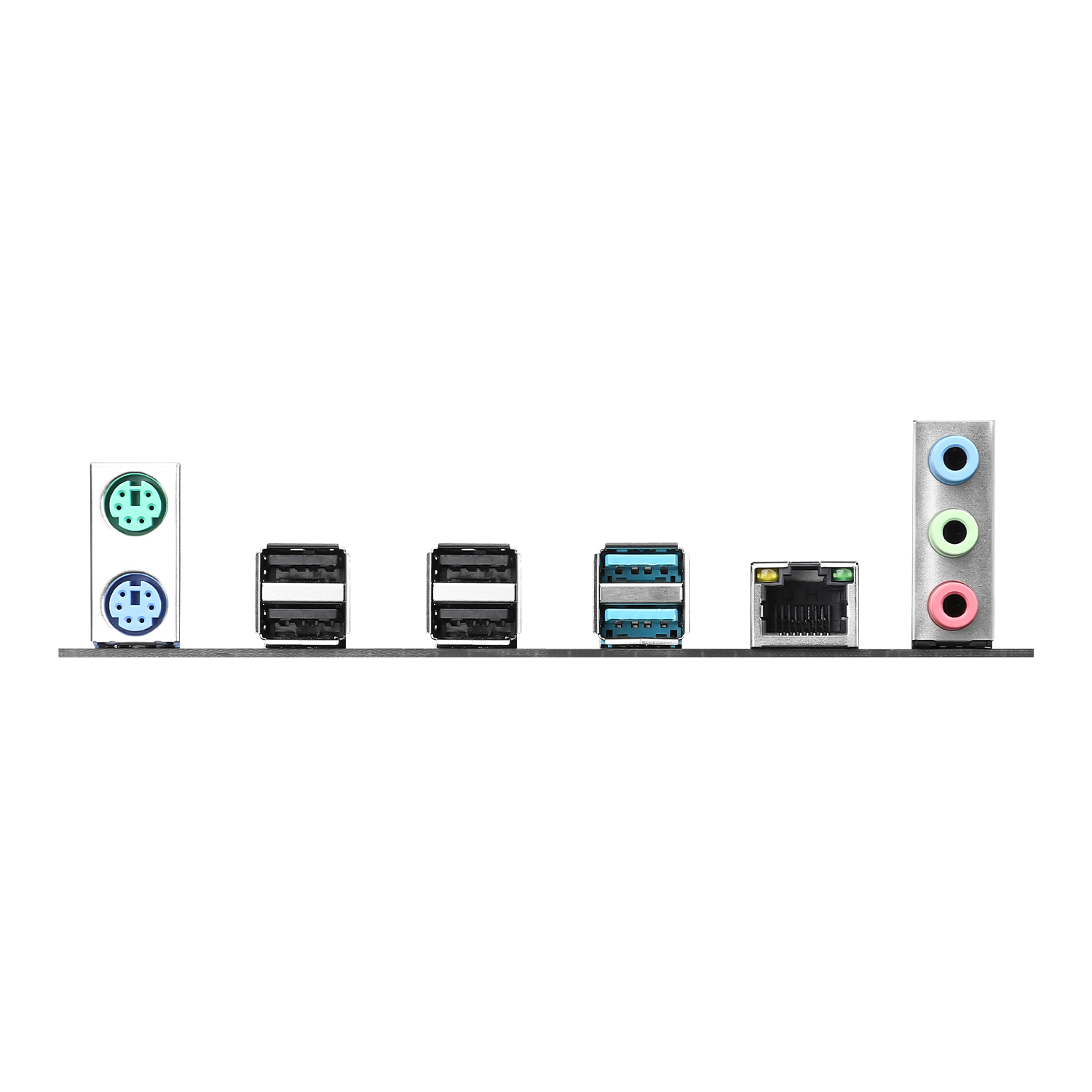

Rear panel interface
1xPS/2 Mouse and Keyboard port，2xUSB3.2 Gen1，4xUSB2.0，1x Network card interface，1x3-hole audio interface
Front panel interface
1 x USB2.0 PIN，1 x USB3.0 PIN，1 x Front audio PIN，1 xCOMPIN，1 xPower on/restart pin，1 xSPK Pin
Support system
Windows10 Windows11
BIOS
AMI UEFI BIOS
Packing list
1 x Motherboard，1x SATA data cable，1xWarranty card
-
User Manual
Installation Video

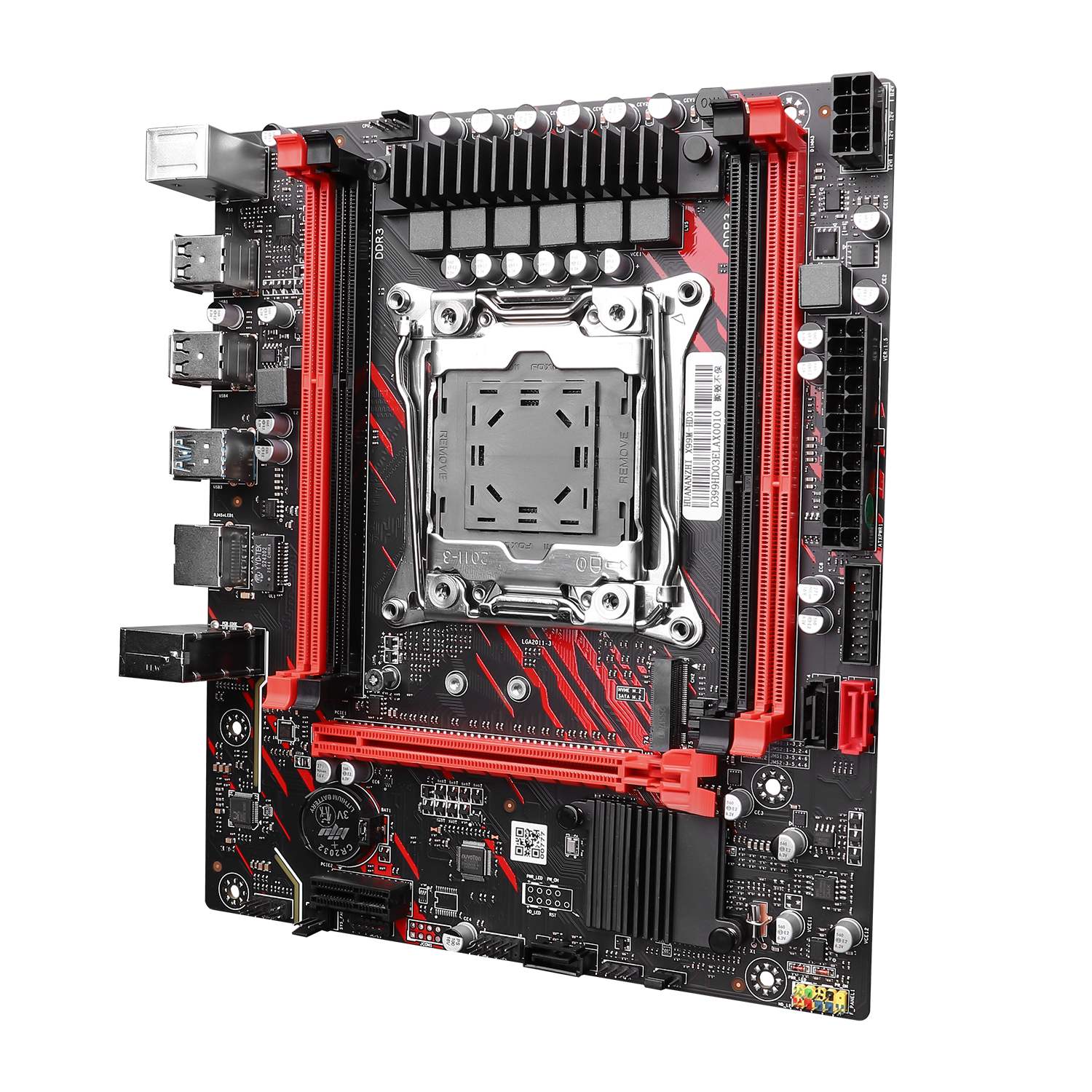

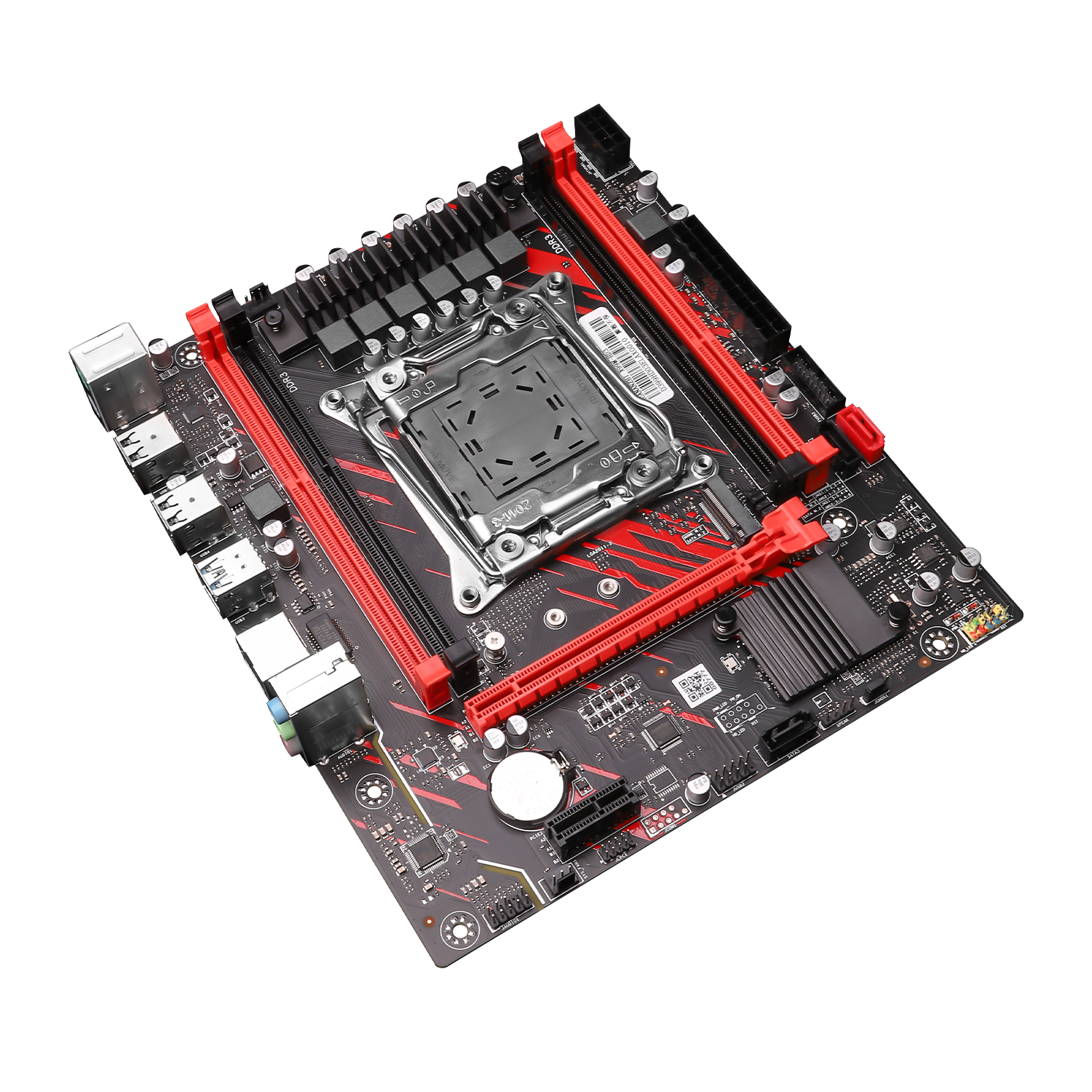

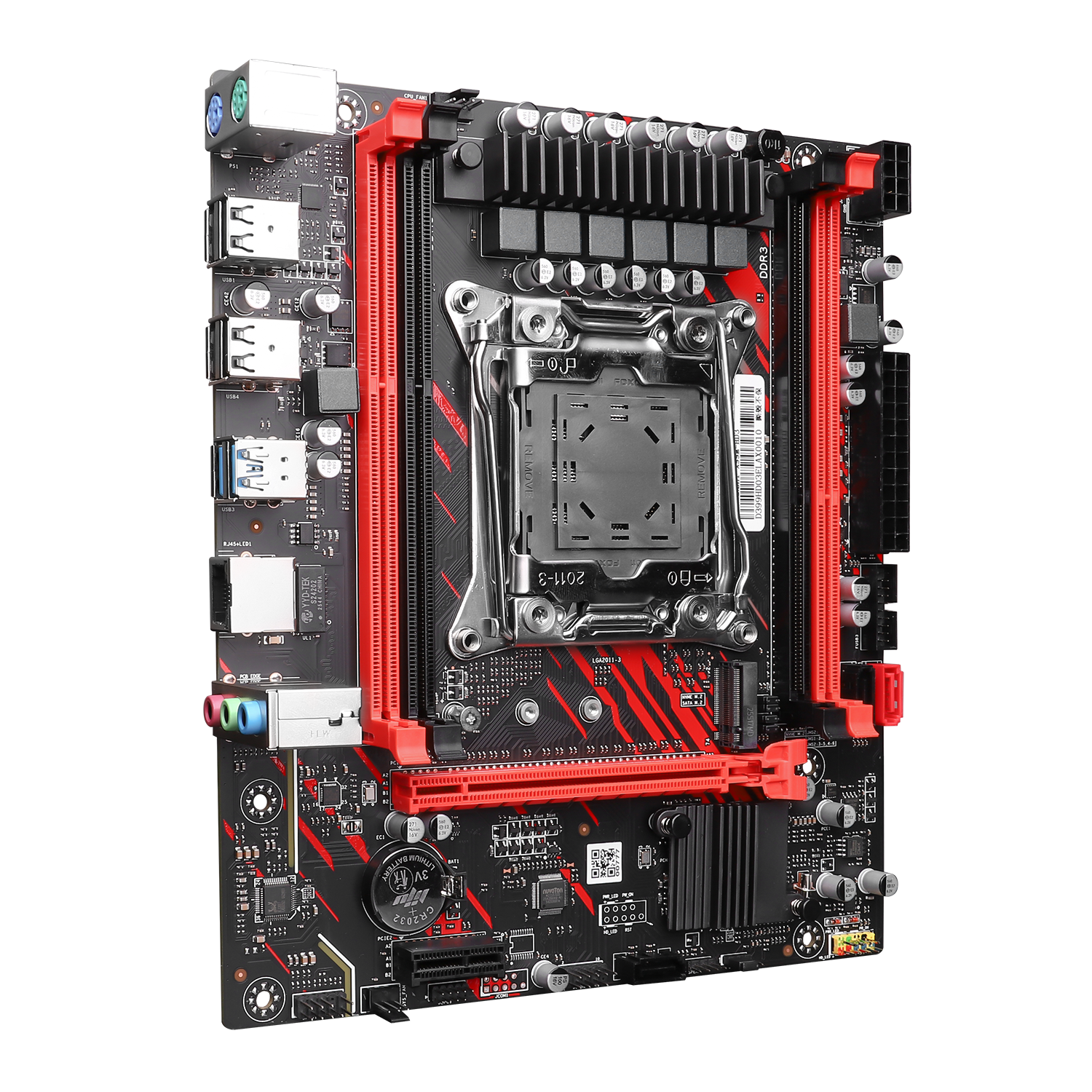

X99M-HD3
· supports Intel LGA2011-3 platform processor
· 4 x DDR3 memory slot(s), max support 128GB
· 1 x PCI Express3.0 x16 slot, 1 x PCI Express 2.0 x1 slot
· 1 x M.2 2280 (NVME PCIE X4 3.0)
· Realtek HD Audio, Realtek Gigabit LAN
· 2 x USB3.0 port, 2 x USB2.0 port
