chipset

IntelB760 series

CPU Socket

supports LGA1700 platform processor, supports Intel 12/13/14 Generation Core processor

memory slot(s)

2 x DDR4memory slot(s) supports

Memory Standard

supports dual-channel DDR4 4000/3600/3200/2933/2666/2133MHz specification memory (supports XMP depends on CPU), max support64GB

Storage Interface

4 x SATA3.0 6Gbps HDD port

Expansion Slots

1 x PCI Express4.0 x16 slot, 1 x PCI Express3.0 x4 slot

Expansion Interface

2 x M.2 2280 NVME PCIE X4 4.0, 1 x M.2 WIFI supports PCIe&CNVi protocol

Onboard Audio

Realtek HD Audio  ALC897

Onboard LAN

Realtek 2.5G NIC RTL8125BG

Power Connector

24PIN+8PIN

Fan Headers

1 x CPU_FAN header, 2 x SYS_FAN header

3 x 5V ARGB header (via HUANANZHI Official network under Download software Control ARGB RGB Lighting)

Power Phases

10 -phase power supply

PCB Layers

6 Layer

Motherboard Specifications

235*195MM M-ATX form factor

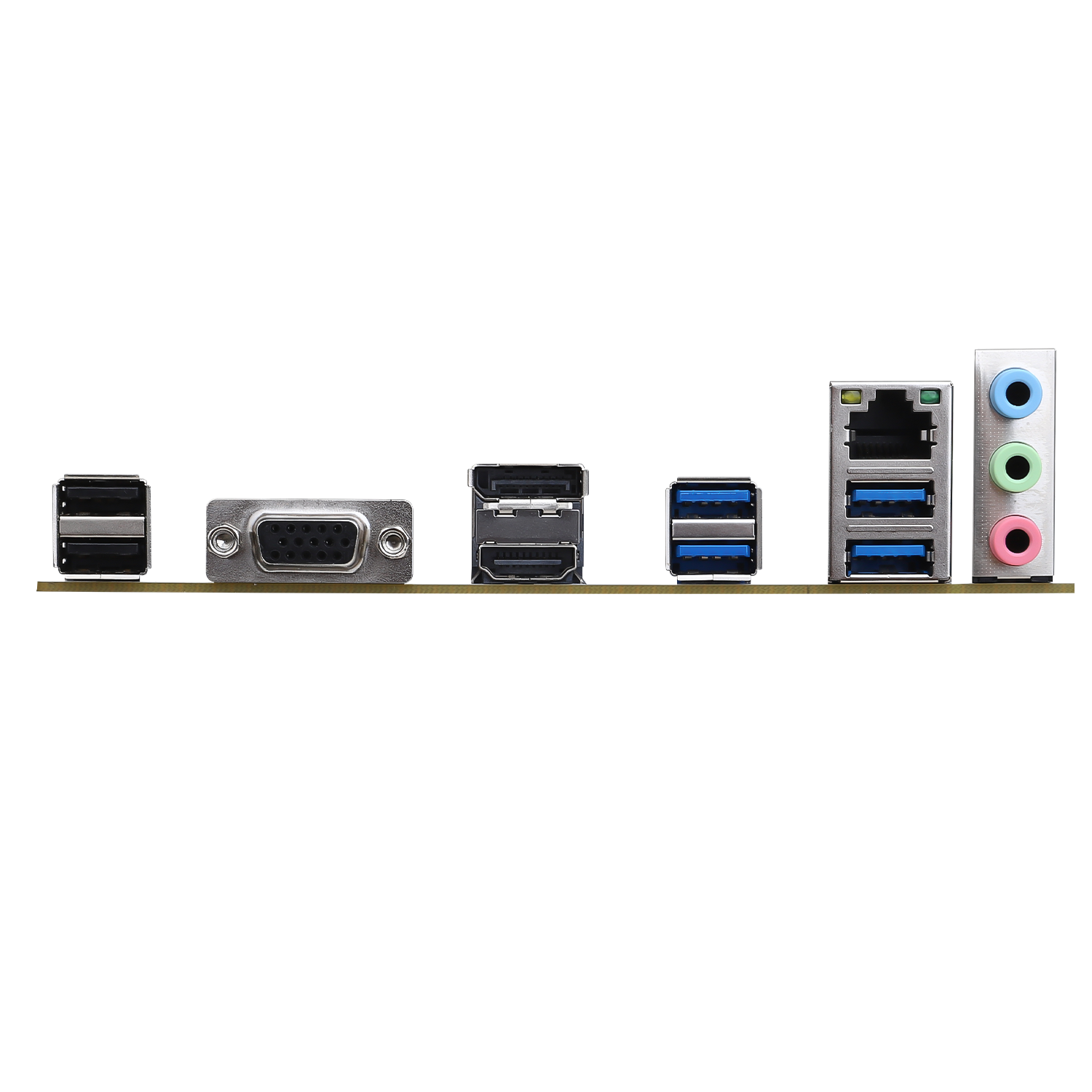

Rear Panel Ports

2 x USB2.0 480Mbps port, 4 x USB3.2 Gen1 5Gb/s port, 1 x DP 1.4 port

1 x HDMI 2.1 port, 1 x VGA port, 1 x RJ45 LAN port, 1, x 3 -hole audio port

Front Panel Ports

1xfront audio Pin, 1xCOM Pin,  1xUSB2.0 header 480Mbps, 1xUSB3.2 Gen1 header 5Gb/s,1xpower/reset Pin, , 1xbuzzer Pin, , 1xDebug Indicator LED(Self-Test mode: After self-test all diagnostic LEDs as Off State, Self-test Failed as Steady-On State. Diagnostic LED Indicates section with MEM CPU VGA SYS)

Supported OS

Windows10 Windows11 supports AC recovery/scheduled boot/WOL /S3 sleep / NIC IPV4/IPV6

BIOS

AMI UEFI BIOS Graphics BIOS

Package Contents

1xSATA SATA data cable, 1xwarranty card, 1xmotherboard Bracket, 1xmotherboard, 1xUnit products Manual
